ERM-12H Handy Grinder
- 1000 Set / Sets per Month
- Shanghai
- Credit Card PayPal
- Hot Sell Advanced Guangzhou 1/3 Sheet Sander, Orbital Sander, Sanding Equipemnt, Angle Grinder
- Hot Sell Guangzhou Digital Mouse Orbital Sander, Grinding Machine, Sanding Equipemnt, Angle Grinder
- High Quality Industrial Grade LCD Mini Grinder, Grinding Machine, Angle Grinder, Orbital Sander
- Electroplated diamond internal grinding point for grinding zirconia ceramics D12d10L70
- Dressing pen repair corundum grinding wheel grit 120 hardness hrc 22-27
- Resin Diamond Grinding Point 14D-2X-5T-60L 400#
Product Details
Place of Origin: | Jiangsu, China | Brand Name: | LIYOU | Model Number: | ERM-12 |
Power Source: | Electricity | Type: | Angle Grinder | Variable Speed: | No |
Rated Input Power: | 300W | Disc Diameter: | 100mm | Rated Voltage: | 220v ± 10%AC |
No-Load Speed: | 6000rpm | Frequency: | 50/60Hz | Disc(Wheel) Type: | Grinding Disc |
Dimensions: | 290 x 260 x 230(mm) | Weight: | 15KG |
Product Description

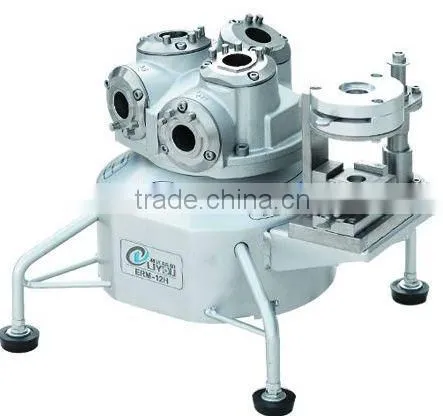

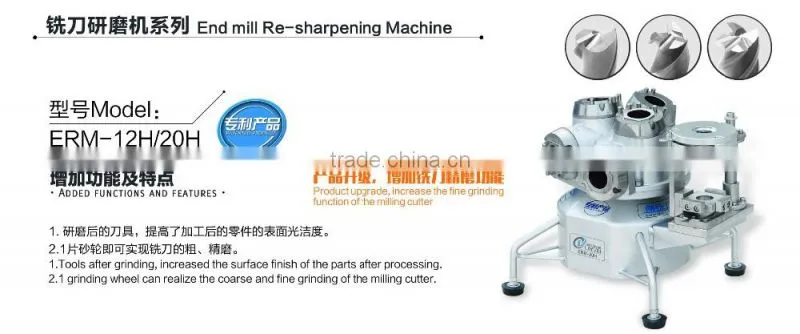

ERM-12H End Mill Re-sharpening Machine
Patented products, high precision, high efficiency
Optimized structure design
High precision grinding wheel and grinding structure
Unique mill edge adjustment device
Precise holder fixture
Re-sharpening operation steps
1 Mill edge adjust
2 Rear inclined angle grinding
3 Blade edge grinding
4 Front inclined angle grinding
Grinding wheel: SDC wheels used for tungsten carbide tools, CBN wheel used for high-speed steel tools.
PRODUCT ADVANTAGES
1. Applicable to (2/3/4-flute) tungsten carbide and high-speed steel end mill.
2. Grind rear inclined angle, blade edge and front inclined angle.
3. For different end mill grinding, no need to change grinding wheel.
4. Easy to operate, grind one piece need no more than one minute.
5. High precision (0.01mm), normatively re-sharpening.
6. Mill cutting edge can be adjusted suitable for materials to be processed.
Product Parameter
Model | ERM-12H (with fine grinding) |
Applicable diameters | fai 2-fai 12mm |
Applicable flutes | 2 flutes, 3 flutes, 4 flutes |
Axial angles | Secondary clearance angle 6° Primary relief angle 20° End gash angle 30° |
Grinding wheel | E12SDC (CBN Choose) |
Power | 220V±10%AC |
Motor output | 300W |
Rated speed | 6000 rpm |
Outer dimensions | 290*260*230 |
Weight | 15KG |
Normal accessories | Collect*7pcs, 2 flutes holder*8pcs, 3 flutes holder*8pcs, 4 flutes holder*8pcs, case*1pc, Hexagon wrench*2pcs, Brush*1pc, controller*1pc |
