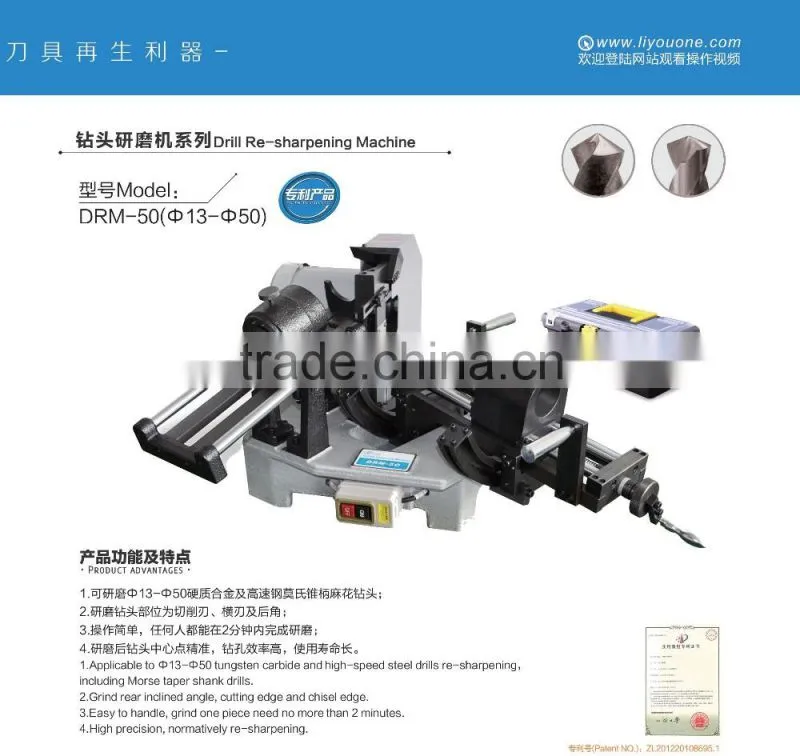

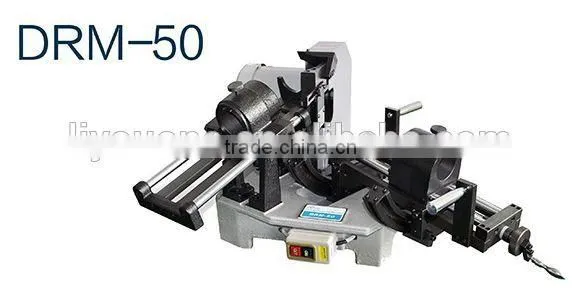

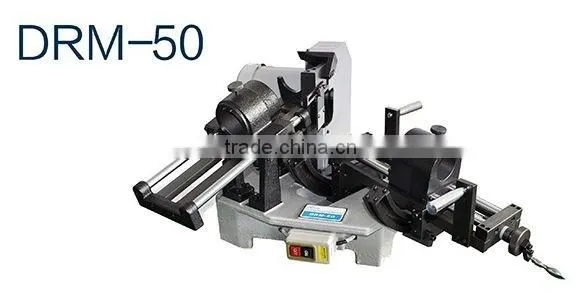

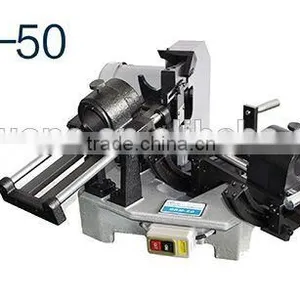

DRM-50 Grinder Tool

Name: DRM-50 Grinder Tool
Brand: LIYOU
SKU: 133773371

Negotiable MOQ: 1 Set (Price negotiable depending on order volume and customization)

Key Specifications

Condition:

New

Type:

Universal

CNC or Not:

Normal

Taizhou Liyou Precision Machinery Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

shanghai

Delivery Detail:

Delivery time depends on order quantity.

Condition New

Type Universal

CNC or Not Normal

Max. Grinding Diameter fai50mm

Max. Grinding Length Undefined

Brand Name LIYOU

Model Number DRM-50

Voltage 220V

Power(W) 200W

Dimension(L*W*H) 650*590*350mm

Weight 85kg

Certification CE Certification

After-sales Service Provided Engineers available to service machinery overseas

Grinding wheel: SDC wheels used for tungsten carbide tools, CBN wheels used for high-speed steel tools.

PRODUCT ADVANTAGES

1. Applicable to tungsten carbide and high-speed steel drill re-sharpening.

2. Grind rear inclined angle, cutting edge and chisel edge.

3. Easy to handle, grind one piece need no more than 20 seconds.

4. High precision, normatively re-sharpening.

5. Apex angle can be adjusted from 90°-150°, rear inclined angle from 0°-12° according to materials to be processed.

6. Length of drill to be grinded has no limitation.

Model	DRM-50
Applicable diameter of drill	Taper shank drill fai 3-fai 50mm
Grinding scope of the apex angle	118°-180°
Grinding scope of the dorsal horn	4°
Grinding wheel	D50CBN
Length of drill	Maximum length 400mm
Power	AC220V
Motor output	200W
Rated speed	2800 rpm
Outer dimensions	650590350(mm)
Weight	85KG
Normal accessories	Jacket for taper shank drill (4-1#,4-2#,4-3#) one for each, Iron wedge block3pcs, Hexagon wrench2pcs, Chuck group*1 Group
