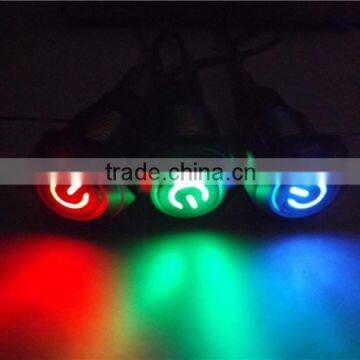

16mm waterproof momentary led pin terminal push button switch
1. Wide application
2. Various color to satisfy your visual
3. New design for different country to use
4. Long life time to guarantee your convenient use
5. Different voltage range to meet your various requirment
| Max. Panel Thickness: | 0.394" (10.0mm) | ||||||
| Terminal | Pin(2.8x0.5) | ||||||
| Max. Switch Rating | 5A/ 250VAC | ||||||
| Contact Resistance | ≤50mΩ | ||||||
| Insulation Resistance | ≥1000mΩ | ||||||
| Dielectric Strengh | 2000VAC | ||||||
| Operation Temp. | -20°C ~ +55°C | ||||||
| Mechanical Life | 1,000,000cycles | ||||||
| Electrical Life | >50,000cycles | ||||||
| Contact Material | Silver Alloy | ||||||
| Torque | 5 ~ 14Nm | ||||||
| Operation Pressure | 3 ~ 8N | ||||||
| Protection | IP65 | ||||||
| Material | Actuator | Stainless Steel/ Anodized Aluminum | |||||
| Body | Stainless Steel/ Anodized Aluminum | ||||||
| Base | PA | ||||||
| Color | Type | LED (ratings @ 20mA) | |||||
| Color | R-Red | Y- Yellow | O- Orange | G- Green | B- Blue | W- White | |
| Luminous Intensity (mcd) | 160 | 200 | 150 | 520 | 220 | 2000 | |
| Forward Volatge | 1.8~2.6 | 2.8~3.6 | |||||
| Illumination Voltage | no suffix No resistor fitted. An appropriate resistor must be series connected by the user. Voltages as above. | ||||||
| 6V/ 12V/ 24V/ 36V/ 110V/ 230V | |||||||
| Life | Approx. 40, 000hours | ||||||

2.100% QC inspection Before Shippment . Track the order until you get the goods
3.Competitve price
6.Kinds of specifications can be customized.
♦High quality after-sale service :
1.One years warranty
2.We will replace the broken parts with new parts in your next order .
Yueqing shun tong electric Co., LTD. Started in 2009, Head office located in the largest manufacturing base of electric equipment of Wenzhou China, which is called "the Electric Equiment Capital of China".
Company to market development and technology development as the guide, is a professional production and processing, wholesale distribution of fan motor, auxiliary switch, circuit breaker, ac contactor, thermal relay, residual current circuit breaker, thermostat, heater, such as low voltage transformer, voltage regulator, wall switch, high-voltage electrical appliances of the private partnerships modern enterprise .
♦How to order our product ?
1.Please tell us the model and quantity and other request you need.
2.We make the PI for you.
3.After you confirm the PI, we arrange the order for you after receiving your payment.
4.After the goods finished, we send the goods out to you and tell you the tracking number.
5.We will track your goods until you receive the goods.
♦OEM is available: Material,size,Color and other requirements are customized.
♦Payment:L/C, T/T, Western Union, Paypal.
