Specifications

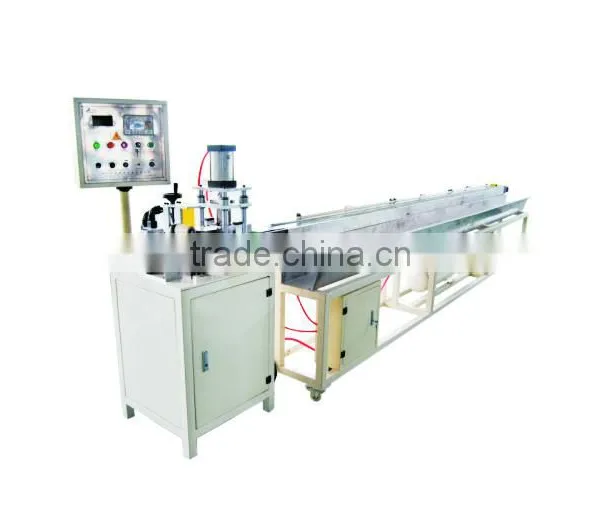

Comprises electric control and operate part, speed automatic adjustment part, haulingpart, deliver
Comprises electric control and operate part, speed automatic adjustment part, hauling
part, delivery unit and discharger.
. Speed control: by individual control and on-line control; for individual control, the tape-out speed changes through operation of potentiometer on operation panel, and for on-line control, the speed changes through automatic adjustment f potentiometer in accordance with the production speed of rubber products.
.Hauling part: Adjust the distance between traction belts to ensure he well-shaping of products. Actuating motor power: 0.55KW
.Counting meter unit: programmable controller, rotary encoder and counter wheel
.Display unit: text display
.Cutting action: manually and automatically
.Power of cutting machine: 2.2KW, 2800N/MIN
.Control unit: controlled by PLC
.Discharger: lay off by air blasting
Max. extrusion speed: 40m/MIN
Lower limit of length of closed type bar section: 300mm
Width of closed type bar section: 15-50mm
Height of closed type bar section: 5-20mm
Cutting precision: for those longer than 1000mm: ±0.1%
For those between 300mm-1000 mm: ± 1.5mm
Main power supply: 3 phases, 5 lines, AC 380±10%, 50HZ
Control circuit: AC220V, use neutral line
.Major components shall be Schneider products
Parts installed on control box:
.Start button, stop button and emergency button
.Action indicator light
. An emergency stop button is contained
