Silicone Hose or Sheet Rubber Machine

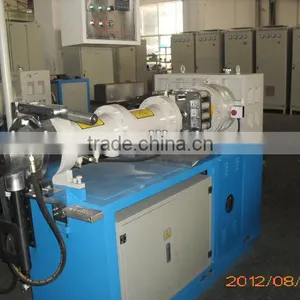

Silicone Hose or Sheet Rubber Machine thumbnail-1
Silicone Hose or Sheet Rubber Machine photo-1
US$ 18,000 - 70,000 MOQ: 1 Set
Key Specifications
Get Latest Price
Place of Origin:
Zhejiang, China
Brand Name:
BAINA
Model Number:
75
Contact Supplier Request Quote Chat Now
Zhejiang Baina Rubber & Plastic Equipment Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
ningbo
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Zhejiang, China
Brand Name BAINA
Model Number 75
Dimension(L*W*H) 2566*985*1355MM
Weight 2500KG
Warranty one year
After-sales Service Provided Overseas third-party support available

Specifications

silicone rubber machine ;
silicone rubber extrusion and vulcaniztion production line ,used for silicone rubber profile ,hoses.

silicone hose or sheet rubber machinesilicone rubber machine :

silcione rubber extrusion and vulcaniztion production line

  • Specifications

  • silicone rubber extrusion and vulcanization production line ,used for silicone rubber profile ,hoses. screw diameter 90mm

    Detailed Product Description

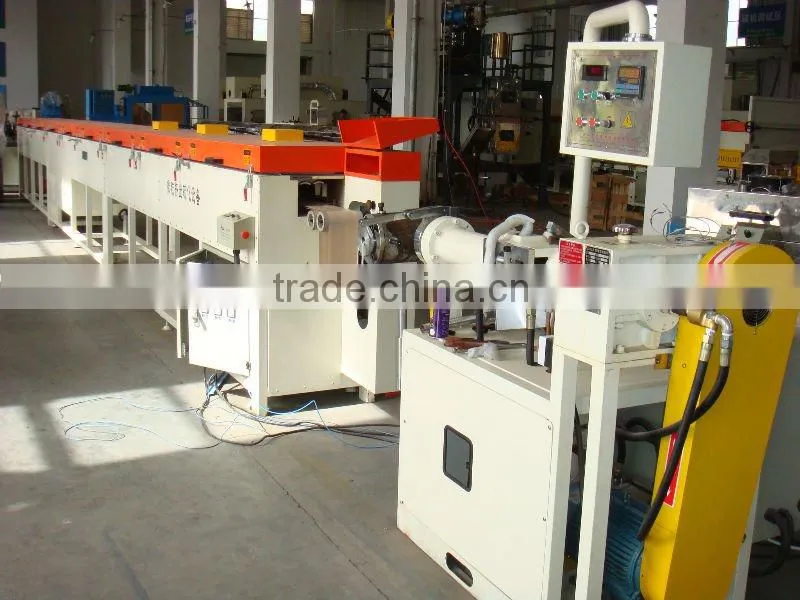

    silicone rubber extrusion and vulcaniztion production line ,used for silicone rubber profile ,hoses.

    vertical type extruder equipped with 90 degree corner head and platform.

    technical specification:

    1 90 silicone rubber Extruder

    Model                               XJP90×16D

    2.General Spec:

    2-1· Outlet direction: Right in and left out facing the device

    2-2.Screw diameter:               90mm ( max. extrusion diameter tube 150mm)

    2-3. screw speed (r/min)          0 to 55

    2-4 .L/D:                         16:1

    2-5.Capacity(kg)                 320kg/h

    2-6· Central height of extruder:       1050mm±20mm

    2-7· Feeding mode:           Active feeding with side roller

    2-8.External dimensions         3200(L) ×1200(W) ×1620(H)MM

    2-9 weight:                       3800Kg

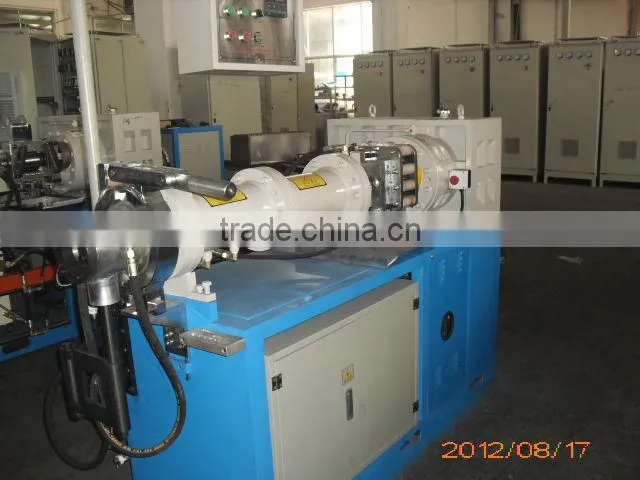

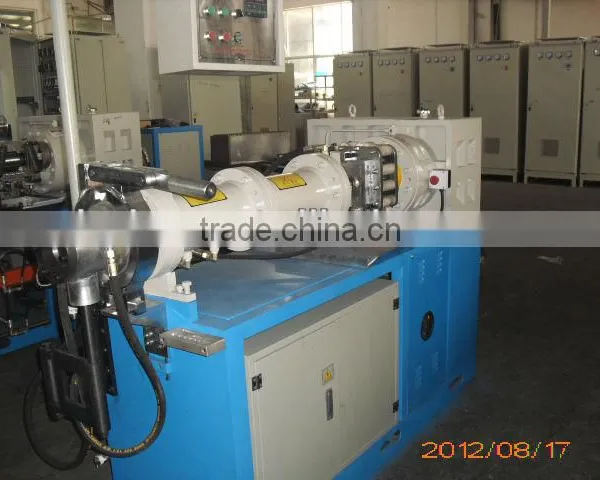

silicone hose or sheet rubber machine



More informations ,please contact us now ~
