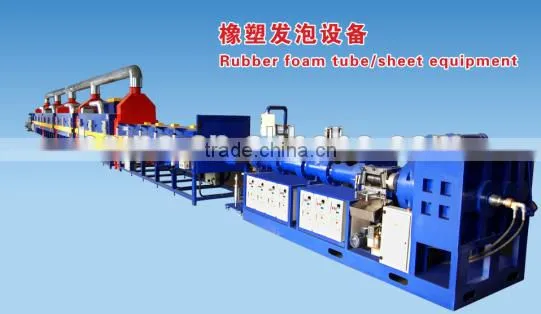

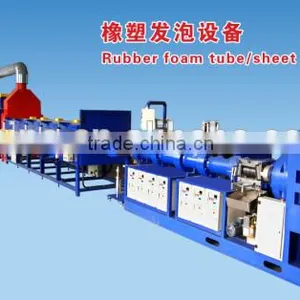

Help CenterInsulation Rubber Sheet and Hose Extrusion Production Line
Related Products
-
NBR/PVC Thermal Insulation Rubber Foam Sheets and Tubes MachineryUS$ 10,000 - 500,000MOQ: 1 Set -
EPDM Rubber Sheet and Hose Extrusion Production Line// NBR and PVC Insulation Pipe MachineUS$ 10,000 - 500,000MOQ: 1 Set
-
NBR and PVC Insulation Pipe Extrusion Production Line// EPDM Rubber Tube MachineUS$ 10,000 - 500,000MOQ: 1 Set
-
EPDM Foamed Rubber Sheet and Hose Extrusion Production Line// NBR and PVC Foaming Pipe MachineUS$ 10,000 - 500,000MOQ: 1 Set
-
EPDM Foamed Rubber Sheet and Hose Cutting Machine // NBR and PVC Foaming Pipe MachineUS$ 10,000 - 500,000MOQ: 1 Set
max.extrusion output: 320kg/h(open the machine head)
vaccum pump:2.2kw
screw lever diameter:75mm
90 cold material feeding exhaust extruder | ||
1 |
Model |
XJP75×16D |
2 |
Outlet direction |
Right in and left out facing the device |
3 |
Central height of extruder |
1070mm±20mm |
4 |
L/D |
16:1 |
5 |
Screw diameter |
75mm |
6 |
Max. screw speed (r/min) |
55 |
7 |
Capacity(kg) |
140kg/h |
8 |
Feeding mode |
Active feeding with side roller |
9 |
Speed adjustment mode |
Variable frequency speed regulation |
10 |
Speed adjustment panel |
Fuji Inverter |
11 |
Main motor power |
37kw |
12 |
Number of heating zone/heating power |
3zone 3kw×3 |
13 |
Number of cooling zone |
1zone |
14 |
Vacuum pump |
2.2kw |
15 |
Circulating pump |
GRUNDFOS (Danmark) |
16 |
Electromagnetic valve |
Shanghai Huahan |
17 |
Temperature control instrument |
. |
18 |
Pressure control |
With pressure sensor, pressure protection value adjustment rage: 0-35MPA |
19 |
Single drive |
One set |
20 |
Cooling water |
0.15-2KG/ C |
21 |
power |
AC380V50HZ |
22 |
Hard tooth-faced reductor |
ZLYJ250-20-I |
23 |
Total power |
67kw |
24 |
External dimensions |
2200(L)×1000(W)×1520(H)MM |
Order Guide:
1. Ship date: 30----120 working days
2. Payment terms: T/T or L/C
3. Full range of devices to be provided on schedule, as per client demands.
4. Responsible for training technicians and operators for operation and maintenance of the equipment.
5. Responsible for installing and debugging all devices.
6. Formula available and long term technical supports.
7. Guarantee: One year guaranteed repair and lifelong tracking service,with parts provided.
8. All the parameters of the machine on metric units and in English.
9. Package: standard export wooden pallet.

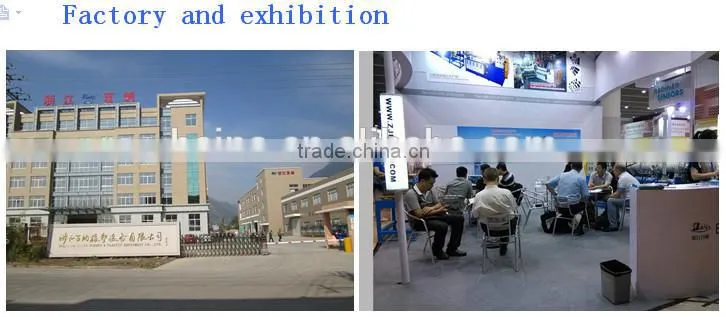

Welcome to visiting our factory!

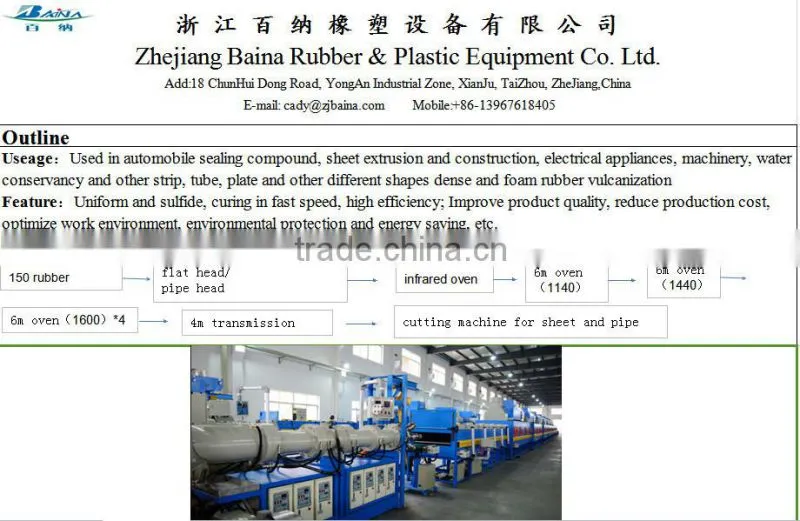

Zhejiang Baina Rubber&Plastic Equipment Co.LTD
More detail please contact us freely.
Thanks and best regards.
cady chen
Mobile: +86-13506763762
Skype: cady1811
