1500m Trailer Type Ground Water Drilling Rig

Name: 1500m Trailer Type Ground Water Drilling Rig
Brand: BINZUAN
SKU: 133750849
Availability: InStock

US$ 220,000 - 250,000 MOQ: 1 Set

Key Specifications

Condition:

New

Type:

Other, Rotary Drilling Rig, trailer

Power Type:

Diesel

Shandong Binzhou Forging And Pressing Machinery Factory

Payment & Shipping

Payment Methods:

Port of Shipment:

any

Delivery Detail:

Delivery time depends on order quantity.

Condition New

Type Other, Rotary Drilling Rig, trailer

Power Type Diesel

Place of Origin Shandong, China

Brand Name BINZUAN

Model Number BZT1500

Usage Water Well

Voltage 220V/380V

Power(W) 269kw

Dimension(L*W*H) 15222*2800*4400mm

Weight 49t

Certification ISO9001:2008

Warranty One Year

After-sales Service Provided Engineers available to service machinery overseas

Product Description

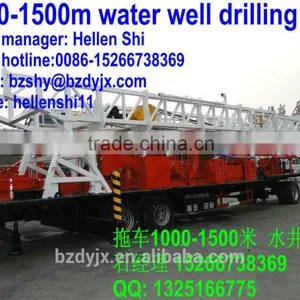

BZT1500 Trailer mounted water well drilling rig

1. BZT1500 drilling rig is a kind of trailer drilling rig, the diesel engine, large displacement piston pump, double-hoist, turntable, drilling tower, auxiliary unloading cylinder and other components are mounted on the chassis. It can be pulled through tractor or truck.
2. It is equipped 4 hydraulicleveling legs and 2 mechanical legs to balance the rig. After leveling the rig, The mechanical legs can be locked the cylinder using locknut. So, even if the hydraulic cylinder leaks, the chassis is still stable for drilling.
3. The appearance of rig is pretty, it has a high efficiency because of having a larger torque of the turntable, it is mainly used for water well, construction, national defense building foundation, geological exploration, geothermic well and other foundation working, it is popular with domestic and foreign clients.

Technical parameter
Drill depth(m)	1500	1200	1000
Drill pipe (mm)	89	114	127
Drill diameter(mm)	500
Rotary table hole diameter(mm)	660
speed of rotary table(r/min)	37,52,84,145
The efficient height of mast (mm)	17982
Torque of rotarytable(kN.m)	25
Lifting capacity of winch(single)(KN)	90
Swivel carrying capacity(KN)	650
Hook carrying capacity(KN)	700
Kelly (mm)	108x108x12000
Drill rod (mm)	89×10×9000
Tyre	9.00R20
Transportation condition(mm)	15222×2800×4343
	Model: Cummis NTA855-C360
Engine	Rated power 269KW
	Rated rotation speed 2100r/min
	Max torque 1464N.M
Mud pump	BW1200
	Rated Displacement(L/min):1200
	Pump rated pressure(MPa):7
	Suction hole diameter 8”
