Help Center600m Truck Mounted Water Well Drilling Rig
Related Products
-
1500m Trailer Type Ground Water Drilling RigUS$ 220,000 - 250,000MOQ: 1 Set -
500m Truck Mounted Water Well Drilling RigUS$ 143,000 - 160,000MOQ: 1 Set
-
Multifunction!! BZCY600BZY Full Hydraulic Truck Mounted Drilling RigUS$ 165,000 - 250,000MOQ: 1 Set
-
Trailer Mounted Rotary Table Water Well Drilling Rig BZT-300(300m)US$ 55,000 - 75,000MOQ: 1 Piece
-
Truck Mounted Drilling Rig 600m (BZC600BBC)US$ 1 - 250,000MOQ: 1 Set
Main features:

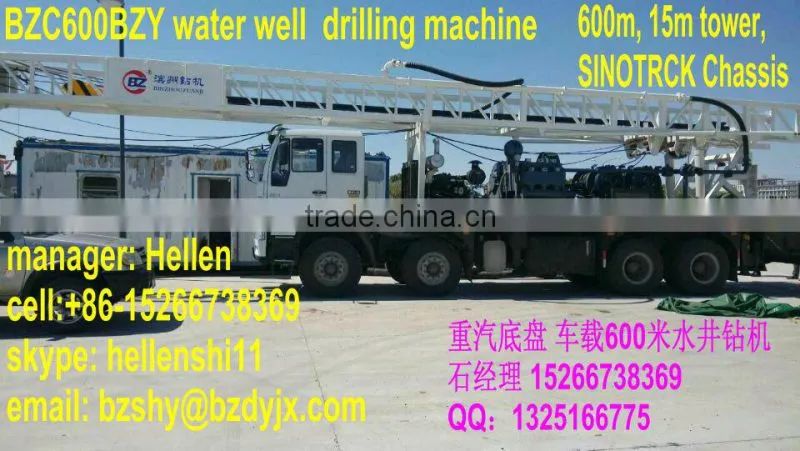

1. BZC600BZY truck mounted drilling rig is designed by our engineers. It is a kind of truck mounted and rotary drilling rig.
2. The truck chassis adopts the special rig chassis of brand SINO-TRUK 8X4 and the main drive system, the transfer case, gearbox, double-winch unit, mud pump, turntable, drilling tower, feed mechanism are set up on the chassis.

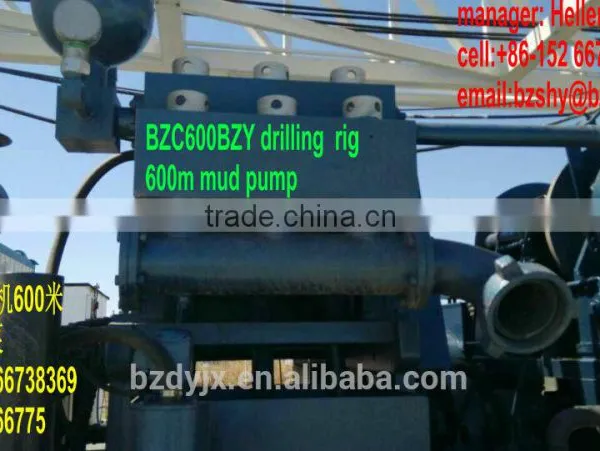

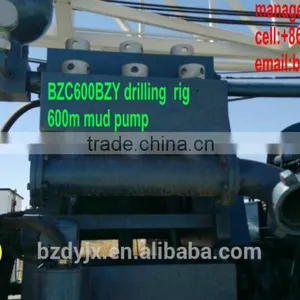

3. This rig is a rotary drilling rig with directional circulation. It is equipped with 3NB-130 mud pump which adopts the slurry as the washing fluid and can drill on clay, sand and rock if it is equipped with suitable drilling bit.
4. This rig has very compact structure, the engine of chassis is adopted SINOTUCK diesel engine, the power is D10.27-40 Water-cooled four-stroke turbocharged inter-cooled diesel engine 196kw(strong power)/2200rpm
5. The drilling rig has independent diesel engine CUMMINS 6BTA5.9-C180 , 132kw. Not only meet the drilling requirements, but also reduce energy consumption, it is very affordable.
6. We set up a generator (MF) which is convenient to illuminate or work at night.
7. There are pressure device on the rig so it is high efficiency when the rig drill on mud rock and on the weathering formation.
8. The main drive of rig is mechanical and the four landing legs and drilling tower are hydraulic controlled. Transfer case and mud pump clutch system are air operated.
9. According to client’s requirement, the rig can carry out down-the-hole hammer drilling with USA Sullair, Japan PDSKIOOS, Sweden Atlas, China Kaishan, Hongwuhuan; can carry out air lifting reverse circulation drilling with air-water tap, double-wall drilling pipe, gas-water separator; can carry out Hydraulic DTH hammer drilling rock breaking with mud pump; can carry out core-drilling with other special drilling tools.
10. The appearance of rig is pretty. It is high efficiency because of having a larger torque of the turntable and is mainly used for water well in industry and agriculture, national defense building foundation, geological exploration, geothermic well and other foundation working, it is popular at home and abroad.
Technical parameter | |||
Drilling depth(M) |
600 |
||
Drilling diameter(mm) |
500 |
||
Speed of turntable(r/min) |
132;115;67; 43; 25; 14, 18(reverse) |
||
Torque of turntable(KN.m) |
7.4----52 |
||
Single rope lifting capacity of main windlass(KN) |
50 |
||
Maximum lifting capacity of main windlass(KN) |
300 |
||
Single rope lifting capacity of assistant windlass(KN) |
50 |
||
Maximum lifting capacity of assistant windlass(KN) |
240 |
||
The lifting capacity of hook(KN) |
320 |
||
Bearing capacity of drilling tower (KN) |
360 |
||
The height of drilling tower (mm) |
16232 |
||
Drill pipe |
Kelly bar(mm) |
108×108×10500 |
|
Assistant pipe (mm) |
89×10×9000 |
||
|
3NB-130 plunger pump
|
Theoretical flow (L / min) |
1000 |
|
Rated pressure (Mpa) |
5 |
||
Input power (kw) |
90 |
||
|
Truck chassis |
Drive form |
8×4 |
|
|
Engine |
Model |
D10.27-40, EU IV emssion |
|
Rated power(KW) |
196 |
||
Speed (r/min) |
2200 |
||
Size (L*W*H)(mm) |
11510*290*2800 |
||
Drilling diesel engine |
model |
Dongfeng Cummins 6BTA5.9-C180-Ⅱ |
|
Rated power(kw) |
132 |
||
Max - torque(N.m) |
750 |
||
Electric generator |
Model |
MF |
|
Rated power (kw) |
30 |
||
Rated voltage(v) |
380 |
||
Rated current(A) |
27 |
||
Speed (r/min) |
1500 |
||
