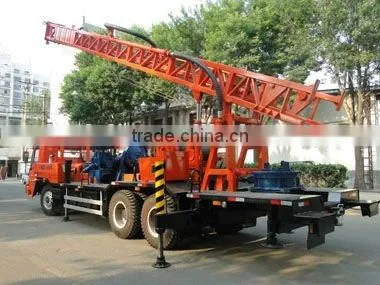

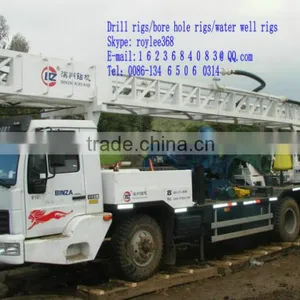

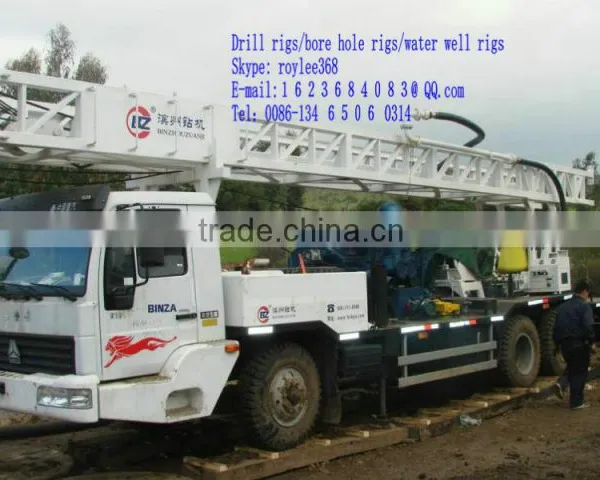

BZC400ZY truck mounted drilling rig
1.BZC400ZY is a kind of rotary drilling machine. The drilling rig is equipped with 6*4 SINOTRUK truck crane chassis, and the transfer case, main drive, gearbox, dual-winch, slurry pump, rotary table, drill tower and steel wire feeding system are all mounted on the chassis.
2. Three-phase AC generating set(MF) provides the vehicle mounted drilling machine with convenience for welding operation and equipment maintenance at night. Of course, equipped with 55KW electric motor, when mains supply is available, the drill rig can operate using the power supply directly.
3. According to the geological conditions, BZC400ZY truck mounted drilling rig can be equipped with air compressor to achieve pneumatic down-the-hole hammer drilling. If equipped with air water separator, dual-winch drill pipe and other related devices, the drilling equipment is also able to realize reverse circulation drilling. If equipped with drill tools like hydraulic down-the-hole hammer, and 850/2A mud pump, the truck mounted drilling rig can realize hydraulic DTH drilling. 4. BZC400ZY is applicable for drilling into clay, sand, bed rock, basalt strata, and more.
Technical Parameters
Drilling depth(m) |
400 80 |
|||
Drilling diameter (mm) |
500 1500 |
|||
The capacity of main windlass(KN) |
270 |
|||
The capacity of auxiliary windlass(KN) |
160 |
|||
The height of mast (mm) |
11500 |
|||
Drill pipe |
Kelly bar (mm) |
108*108*7500 |
||
Assistant pipe (mm) |
89*10*6000 |
|||
Chassis |
Engine |
Model |
TBD22B6-6II |
|
Rated power(KW) |
132 |
|||
Drive form |
6*4 |
|||
BW850/2A plunger pump |
Theoritical flow(L/min) |
600 850 |
||
Rated pressure(Mpa) |
3 2 |
|||
The highest speed(Km/h) |
75 |
|||
Weight (kg) |
19340 |
|||
Transport Size(L*W*H)(mm) |
12160*2490*3440 |
|||
Working Size(L*W*H) (mm) |
11110*2490*13110 |
|||
Questions and answers
1,Are you trading company or manufacturer?We are professional manufacturer since 1953, and our factory mainly produce water well drilling rig, core drilling rig, DTH drilling rig, piling rig, etc. Our products have been exported to more than 50 countries of Asia, South America, Africa, and get a good reputation in the world.
2,Are your products qualified?Yes, our products all have gained ISO certificate,and we have specialized quality inspection department for checking every machine before leaving our factory.
3,How about your machine quality? All of our machines hold the ISO, QC certificate, and each set of machine must pass a great number of strict testing in order to offer the best quality to our customers.
4,Do you have after service?Yes, we have special service team which will offer you professional guidance. If you need, we can send our engineer to your worksite and provid the training for your staff.
5,What about the qaulity warranty?
We offer one-year quality warranty for machines' main body.
6,How long can you deliver the machine?
Generally, we can deliver the machine in 10 days.
2. Advantages
1. Fast construction speed, can save your precious time and finish the engineering in advance.
2. Load feedback system with less energy consumption, more energy saving.
3. Large torque, anti-sticking.
4. Deep depth, big diameter.
5. We have independent R&D department, with independent intellectual property rights, and ensure the sustainable upgrading of product performance.
6. We have strong construction technology and professional construction team, we can guide customers according to their construction problems from inquiry to after-sales.
