Place of Origin Shandong, China
Brand Name BINZUAN brand
Model Number BZC350ZY
After-sales Service Provided Engineers available to service machinery overseas

 Main features:

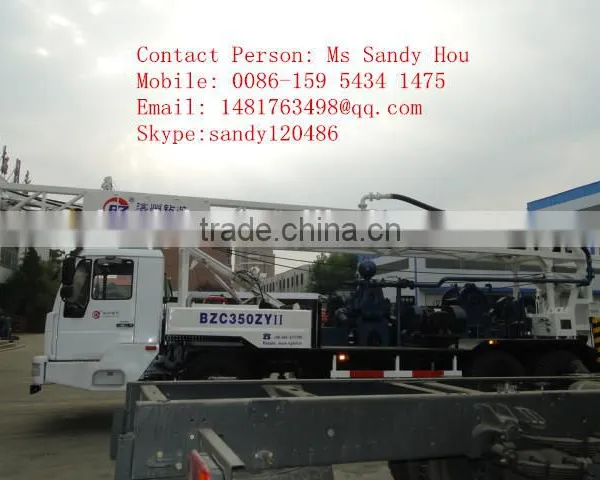

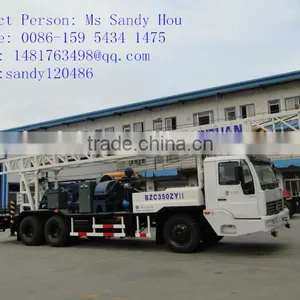

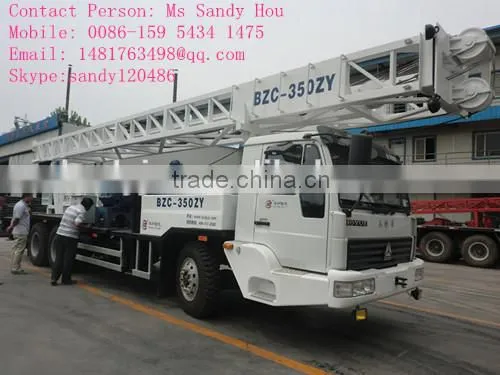

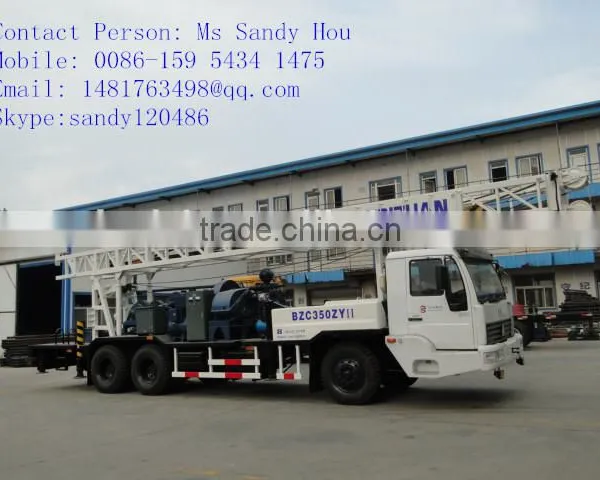

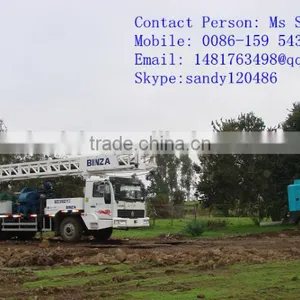

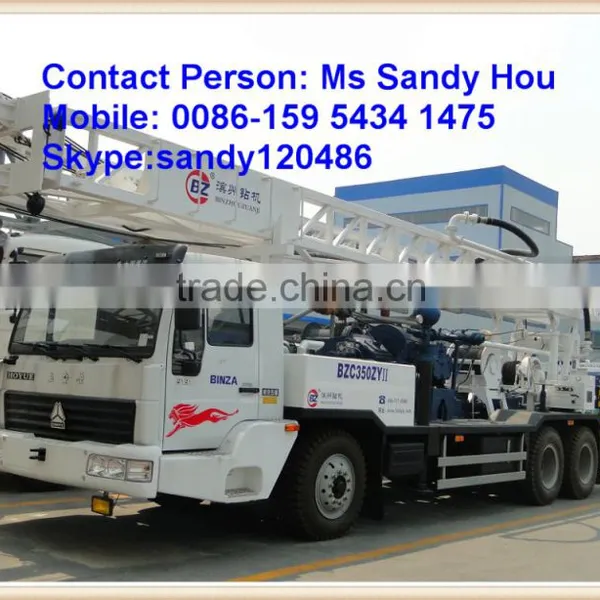

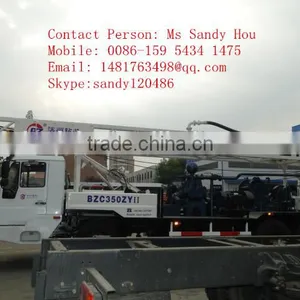

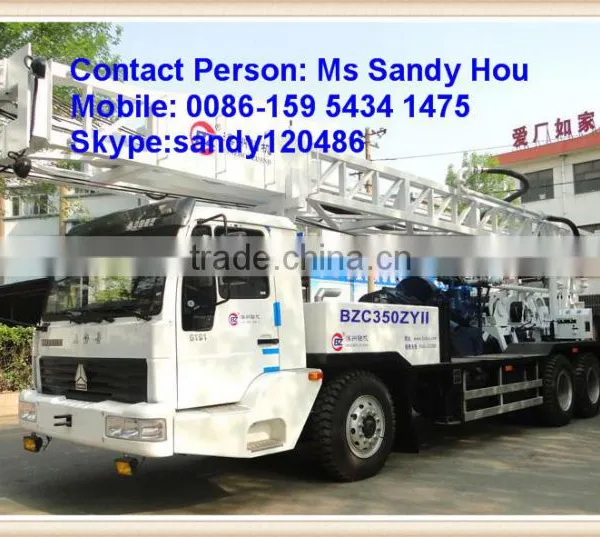

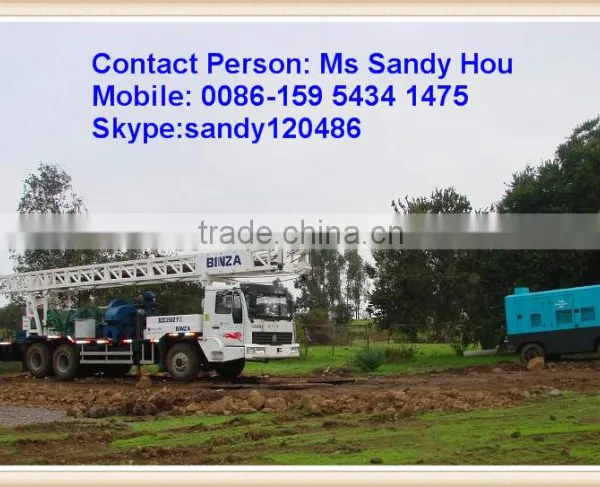

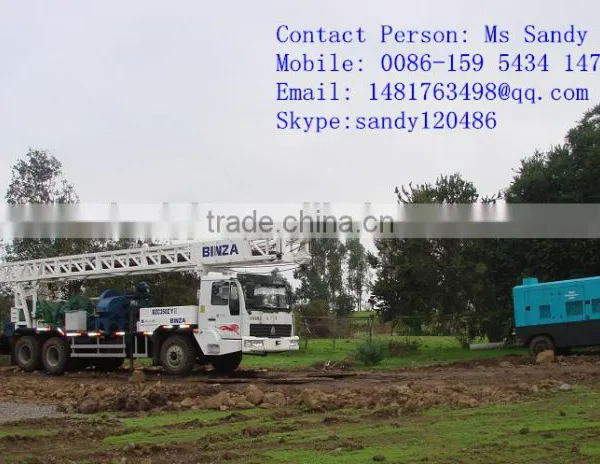

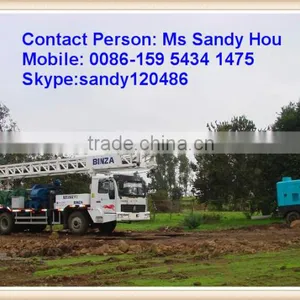

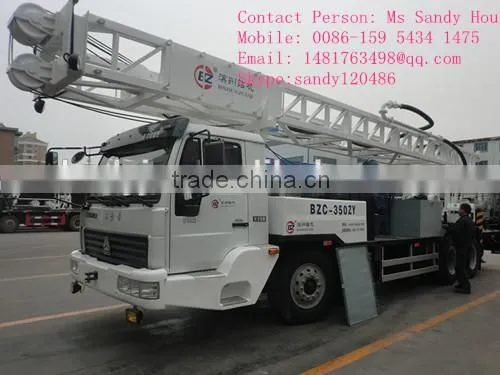

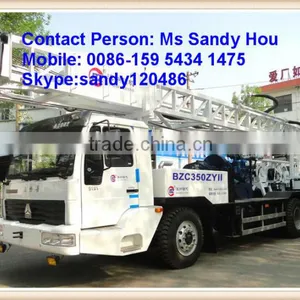

BZC350ZY truck mounted drilling rig is designed by our engineers; it  adopts truck mounted and is a rotary drilling rig.
The truck chassis  adopts  the 6X4 special crane chassis of brand SINOTRUK, the main transmit, transmission power, gearbox, sets of windlass, mud pump, sewage pump,mast are set up on the chassis.
This rig is a rotary drilling rig with directional circulation, which is equipped with BW850/2A mud pump, It adopts the slurry as the washing fluid, it can drill on clay, sand and rock if it is equipped with a good drilling bit.
The power of drilling rig comes from the truck engine, the rig setups distribute implement and hydraulic system.
 We can upset the spare electric engine and clutch implement according to client's requirement, so that the rig can work with diesel engine or electric engine.

We can set up a generator (15kw) , so that it is convenient to illuminate or work at night.
The adding pressure device is hydraulic, so it has a high efficiency when the rig drill on mud rock and weathering formation through using the adding pressure implement.
 The master driving of rig is mechanical, the four jacks and mast are hydraulic operated. Distribute box, sewage pump, master driving clutch system are air operated.
 The appearance of rig is pretty, it has a high efficiency because of having a larger torque of the turntable, it is mainly used for water well, construction, national defense building foundation, geological exploration, geothermic well and other foundation working, it is popular with domestic and foreign clients.

Technical parameter
 Drilling depth(M)

300
 Drilling diameter(mm)

500
 Speed of turntable(r/min)
21.2;36;63.2;100.6;155;20.2(reverse)
 Torque of turntable(KN.m)
18;10.6;6;3.8;2.5;18.9(reverse)
 Single rope lifting capacity of mian windlass(KN)
30
 The capacity of main windlass(KN)
 180
 Single rope lifting capacity of hydraulic windlass(KN) 40
 The capacity of hydraulic windlass(KN) 160
 The lifting capacity of hook(KN)
180
 Bearing capacity of mast (KN)
180
 The height of mast (mm)
11500
 Bearing capacity (t)
25
Pipe
 Kelly bar(mm)
108×108×7500
 Assistant pipe (mm)
89×10×5500

Hydraulic pump
 Model
CB-HP50/32Z
 Pump delivery (ml/r)
50/32
 Rated speed (r/min)
2000
 Rated pressure(MPa)
20






BW850/2A
plunger pump

 Diameter of cylinder (mm)
150
 Stroke of piston (mm)
180
Theory of flow (L / min)
600      850
Rated pressure (Mpa)
3         2
Pounding  times (min-1)
58        82
 Diameter of suction tube (mm)
127
 Diameter of drain pipe (mm)
64
 Input speed (r / min)
470
 Input power (kw)
40
 Overall dimensions (mm)
2000*1030*1400
Weight (t)
1.5



Truck chassis
 Model
TAZ5191TZJ
 Drive form
6×4

Engine
 Model
TBD226B-6Ⅱ(Europe II emission standard)
 Rated power(KW)
132
 Speed (r/min)
2300
 Size (L*W*H)(mm)
11110×2490×2500
Electric generator
Model
MF
Rated power (kw)
15
Rated voltage(v)
400
Rated current(A)
27
Speed (r/min)
1500
Frequency(Hz)
50
Protection level
IP21
Insulation Class
H
 The best working gear (or speed)
5th gear(1000-1400r/min)
 The highest speed(Km/h)
75
 Weight (kg)
19340
 Transport size(L*W*H)(mm)
12160*2490*3440
 Working size(L*W*H)(mm)
11110*2490*13110

1. Questions and answers

1.Are you trading company or manufacturer?We are professional manufacturer since 1953, and our factory mainly produce water well drilling rig, core drilling rig, DTH drilling rig, piling rig, etc. Our products have been exported to more than 50 countries of Asia, South America, Africa, and get a good reputation in the world.





2.Are your products qualified?Yes, our products all have gained ISO certificate,and we have specialized quality inspection department for checking every machine before leaving our factory.



3,How about your machine quality? All of our machines hold the  ISO, QC certificate, and each set of machine must pass a great number of strict testing in order to offer the best quality to our customers.



4,Do you have after service?Yes, we have special service team which will offer you professional guidance. If you need, we can send our engineer to your worksite and provid the training for your staff.



5,What about the qaulity warranty?



We offer one-year quality warranty for machines' main body.



6,How long can you deliver the machine?



Generally, we can deliver the machine in 10 days.



2. Advantages

1. Fast construction speed, can save your precious time and finish the engineering in

advance.

2. Load feedback system with less energy consumption, more energy saving.

3. Large torque, anti-sticking.

4. Deep depth, big diameter.

5. We have independent R&D department, with independent intellectual property rights, and  ensure the sustainable upgrading of product performance.

6. We have strong construction technology and professional construction team, we can guide customers according to their construction problems from inquiry to after-sales.
