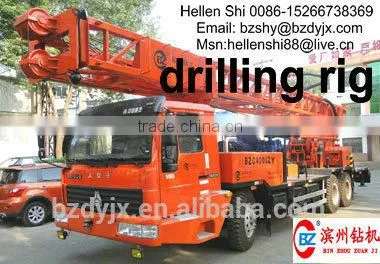

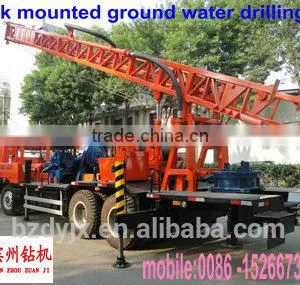

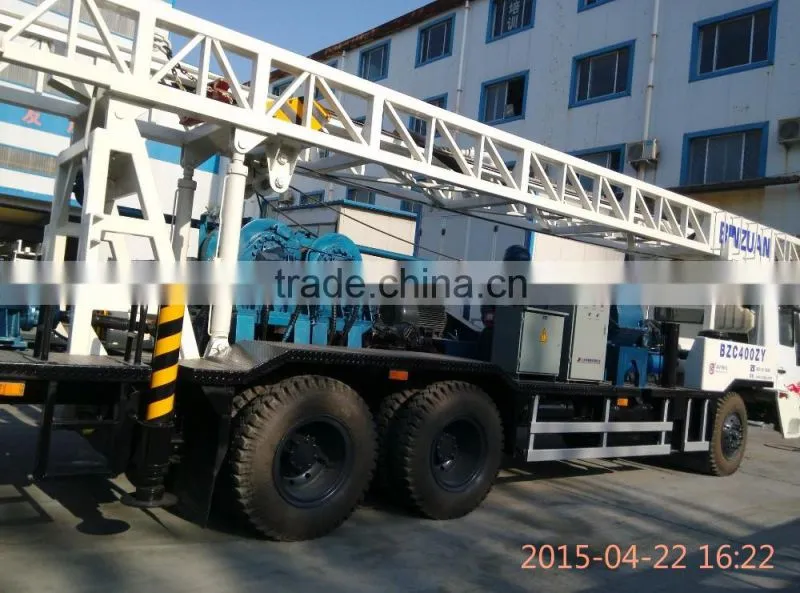

Help Center400m ROTARY TRUCK MOUNTED DRILLING RIG
Related Products
-
BZC350DF Truck Mounted Drilling Rig (Euro IV Emission Standard)US$ 105,000 - 200,000MOQ: 1 Piece -
BZC600CLCA Water Well Drilling TruckUS$ 154,500 - 225,000MOQ: 1 Piece
-
BZC400ZY Water Well Drilling RigUS$ 1 - 160,000MOQ: 1 Set
-
SINOTRUK BZC350ZYII Truck Mounted Drilling RigNegotiableMOQ: 1 Set
-
High Adoption!! BZC400BCA Truck Mounted Water Well Drilling RigUS$ 131,300 - 161,300MOQ: 1 Set
- Application

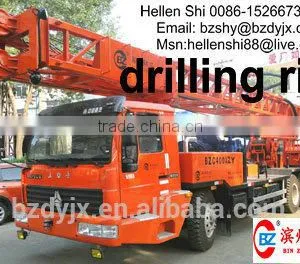

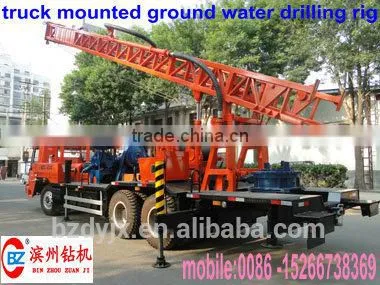

This is a rotary table water well drilling rig ;
It is widely used for water well, geothermal well, irrigation well, bridge conservancy, etc.
- Features
Power supply: diesel engine or electric motor as options;
Mobile base:can be mounted on trailer, crawler or truck for easy move ;
Mud pump: with much larger water flushing rate, with better scraps cleaning effects.
For different stratum: soil, sand, gravel, rocks.
It can work with Triwing bit for soil and sand, and tricone bit for rocks and hard rocks.
And this machine can work with DTH Hammer if add a compressor in Rock stratum.
Drilling depth(M) |
400 |
||
Drilling diameter(mm) |
200-500 |
||
Single rope lifting capacity of main windlass(T) |
6 |
||
The capacity of main windlass(T) |
18 |
||
Single rope lifting capacity of hydraulic windlass(T) |
4 |
||
The capacity of hydraulic windlass(T) |
16 |
||
The lifting capacity of hook(T) |
18 |
||
Bearing capacity of mast (T) |
18 |
||
The height of mast (mm) |
12500 |
||
Bearing capacity (t) |
25 |
||
Drill Pipe |
Kelly bar(mm) |
108×108×7500 |
|
Assistant pipe (mm) |
89×10×5500 |
||
Weight (kg) |
19340 |
||
Diesel power |
160Kw |
||
Transport size (L*W*H) (mm) |
12460*2490*3440 |
||
- Factory brief information:
Founded in 1953, Binzhou Forging and Pressing Machinery Factory (Binzhou Drilling Machinery Factory)is a state owned enterprise dealing in development, manufacture and marketing of various engineering machinery, forging and pressing machinery and construction machinery. We supply truck mounted water well drilling rigs, trailer mounted water well drilling rigs, crawler drilling rigs, core drilling rigs etc and the depth from 20m to 1000m.
Our products are exported to Agentina, Venezuela, Somalia, Benin, Nigeria, Kenya, Russia, Sri Lanka, Korea, KZ(Kazakhstan), Turkmenistan, Iraq, Cuba, Southeast Asia and other countries. Welcome you choose and we will offer our best service to you.
- Oversea aftersales service:
- The accessories:
- Guarantee: one year from the date of ETA
- The contact /consult way:
