BZC600BZY truck mounted drilling rig for water well

FOB Price

USD $219,000 - $259,000 / Set

1 Set(Min.Order)

Supply Ability 10 Set / Sets per Month
Port Tianjin Qingdao Longkou and the others
Payment TermsT/T

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Condition	New	Type	Rotary Drilling Rig
Power Type	Diesel	Place of Origin	Shandong, China
Brand Name	BINZUAN	Model Number	BZC600BZY
Usage	Water Well	Voltage	380V
Power(W)	196000	Dimension(LWH)	1238624803837mm
Weight	25960kgs	Certification	ISO9001:2008,SGS,TUV
Warranty	1 year for free, service forever	After-sales Service Provided	Engineers available to service machinery overseas

Product Description

1.BZC600BZY truck mounted drilling rig is designed by our engineers; it is adopt truck mounted and is a rotary drilling rig.

2.The truck chassis is adopt the 8×4 special chassis of brand SINOTRUK, the main transmit, transmission power, gearbox, sets of windlass, mud pump, sewage pump,mast are setup on the chassis.

3.This rig is a rotary drilling rig with directional circulation, which is equipped with 3NB-130 piston pump. It adopts the slurry as the washing fluid, it can drill on clay, sand and rock if it is equipped with a good drilling bit.

4.The power of drilling rig comes from the truck engine; the rig sets up distribute implement and hydraulic system.

5.We can set up the spare electric engine and clutch implement according to client's requirement, so that the rig can work with diesel engine or electric engine.

6.We can set up a generator (30kw) , so that it is convenient to illuminate or work at night.

7.The adding pressure implement is hydraulic, so it has a high efficiency when the rig drill on mud rock and weathering formation through using the adding pressure implement.

Technical parameter
Drilling depth(M)			600
Drilling diameter(mm)			500
Speed of turntable(r/min)			12.8;22.3;38.5;59.8;102.7;117.6;16.1(reverse)
Torque of turntable(KN.m)			41.4;23.8;13.8;10.6;5.1;4.5;32(reverse)

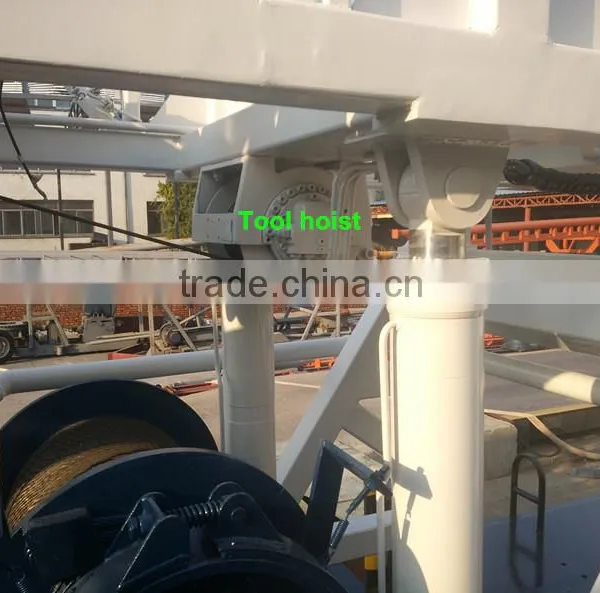

Single rope lifting capacity of windlass(KN)			45
The capacity of main windlass(KN)			270
The height of mast (mm)			12043
Bearing capacity (t)			30
Pipe	Kelly (mm)		108×108×7500
	Assistant pipe (mm)		89×10×5500
3NB-130 piston pump	Diameter of cylinder (mm)		100 110 120 130 140
	Stroke of piston (mm)		160
	Theory of flow (L / min)		1000
	Rated pressure (Mpa)		5
	Overall dimensions (mm)		226013801260
	Weight (t)		3.2
Truck chassis	Model		SINOTRUK
	Drive form		8×4
	Engine	Model	WD615.92E
		Rated power(KW)	194
		Speed (r/min)	2300
	Size (LWH)(mm)		11510×2480×2800
The highest speed(Km/h)			70
Weight (kg)			25960
Transport size(LWH)(mm)			1238624803837
Working size(LWH)(mm)			11123248013618
