Specifications
500m hydraulic truck mounted, water well, DONGFENG 8X4, 191KW; chassis moving and the drilling use the same engine (PTO)
BZC500BDF TRUCK MOUNTED WATER WELL DRILLING RIG

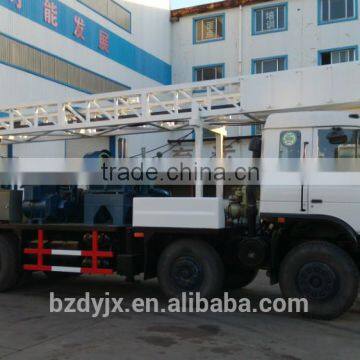

- BZC500BDF truck mounted water well drilling rig is our direct rotary drilling rig. The rig adopt DONGFENG EQ3311GLJ 8x4 special rig chassis, 11.00R20 steel off-road tire tread, with good off-road performance.
- The rig has very compact structure ,use the same engine to walk or to drill. It will control the chassis working or drilling through the pull power take off. The diesel engine is YC6A260-46 Water-cooled four-stroke turbocharged inter-cooled diesel engine 191kw(strong power)/2300rpm..
- The drilling rig has independent diesel engine CUMMINS 6BTA5.9-C180 , 132kw. Not only meet the drilling requirements, but also reduce energy consumption, it is very affordable.

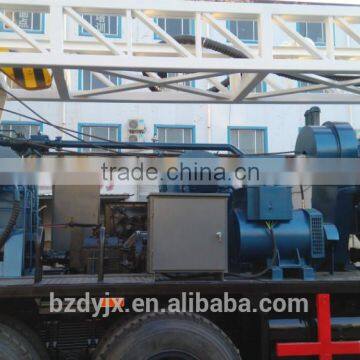

- There is 55KW electric motor,can use electric motor and diesel engine as power to drill . There is a clutch to connect on or off.
5. There is hydraulic double winch, the two winches stepless rise and down, can achieve fast down the hook. Lifting the heavy things should should be slow, in order not destroy the rotary table and wellhead plate.
6. This rig design principle is an advanced hydraulic cylinder for drilling, stepless lift, it can be achieved automatic drilling. it can automatically adjust the drilling speed for different geological conditions.
7. The drilling process can be achieved in pressurized drilling technology, adjust different pressure for different geological conditions, and can be viewed drilling pressure by pressure gauge. At the same time, it can adjust the drilling speed.
8. The drilling rig can achieved fast drilling by manually, especially for soil. It can achieved different speed for different soil.
9. There is hydraulic double winch, the two winches stepless rise and down, can achieve fast down the hook. Lifting the heavy things should should be slow, in order not destroy the rotary table and wellhead plate. When put down single drill pipe, operate the quick handle, it can achieved release rope quickly like mechanical hoist.
10. It has a hydraulic tool hoist, the tool hoist has large lifting force and quick lifting speed, it is both easy to loading drill tools, drill pipe and drill accessories transport, and can slide up and down with anchors, its very convenient to load and unload the drill pipe.
11. It has a hydraulic cylinder control double card board forward and backward, it makes the insurance card board closed, to achieve stuck or release the pipe joints.
It use integrated design of pneumatic, to achieve the 3NB-130 mud pump clutch using pneumatic remote control, it has high degree of automation and easy-saving operation.
12. It is installed 4 hydraulic legs and 2 mechanical legs, every hydraulic leg rod with locknut. After leveling the rig, it can lock the cylinder use locknut. So, even if the cylinder leaks, the chassis is not instability.
The rotary table use stir bars, internal turntable use spiral arc gear to transmission, it has large torque, it about 2 times of similar products at domestic and foreign.
13. It is installed a generator (30kw) , so that it is convenient to illuminate or work at night. There is a clutch, can on or off.
14. The hydraulic system use open system, the chassis and drilling rig are separately manipulated, it can avoid misuse. Winter oil heater and summer oil radiator are installed, to adapt to different seasons hydraulic oil for heating and cooling.
15. This drilling rig equipped with an auxiliary unloading cylinder, it can be used to promote the turntable ratchet, to achieve unloading the first thread , then reverse the rotary table to protect gear box.
main technical parameter
1,drill depth 600m, hole diameter 500mm;
2,kelly: 108×108×7500mm;
3,drill rod :Φ89×6000mm;
4. mast:12043mm
5,mast effective height: 11500mm;
6,mast max load: 36t;
7,main winch hook rated load: 24t;
8,assistant winch hook rated load: 20t;
9,main winch single rope pull force: 40kN;
10,assistant winch single rope pull force:40kN;11,rotary table inner diameter 500mm;
12,diesel engine:
Chassis :YC6A260-46diesel engine;
Rated power 191kw/2300rpm;
Emission EU four
13,rotary table speed :
Drive shaft speed on 900r/min,Dongfeng gear box gear on
Sixth gear, fifth gear, forth gear, third gear,second gear,first gear, reverse gear
Rotary speed :117;102;60; 38; 22; 13; 16.(r/min);
14,rotary table torque: ;5.4----34(kN.m);
15,CBW850-4-80 mud pump
1st gear displacement: 500L/min pressure 7Mpa
2nd gear displacement: 600L/min pressure 6Mpa
3rd gear displacement: 700L/min pressure 5Mpa
4th gear displacement: 850L/min pressure 4Mpa
16. working size(L*W*H): 12000×5374×13687mm;
Transport size(L*W*H): 12467×2490×3708mm;
17. generator : 30kw, 400v , 1480 r/min
18. Electric motor: 55kw, 400v, 1480 r/min
19. Max-walking speed: 75(Km/h)
