Help CenterWater Well Drilling Rig-300m Trailer Mounted
Related Products
-
Truck Mounted Rotary Water Well Drilling RigUS$ 1 - 110,000MOQ: 1 Set -
500m Hydraulic Truck Mounted Water Well Drilling RigUS$ 1 - 150,000MOQ: 1 Set
-
Be in Great Demand in Turkmenistan!! BZC350DF Truck Mounted Drilling RigUS$ 100,000 - 200,000MOQ: 1 Piece
-
BZC350DF Truck Mounted Drilling Rig for WellUS$ 100,000 - 200,000MOQ: 1 Piece
-
High Drilling Ability! TAZ5343TZJ Drill Truck (600m Water Well Drilling Rig)US$ 219,000 - 259,000MOQ: 1 Set
Specifications
300m, within 500mm, mechanical double winch, diesel engine or diesel generator unit, hydrualic tower raising, hydraulic legs
Guarantee : one year
DESCRIPTION

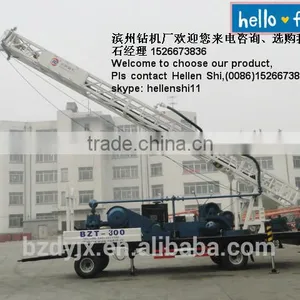

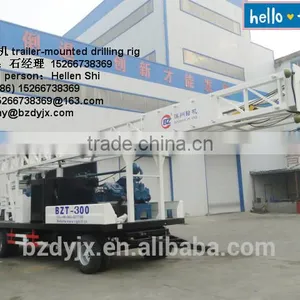

BZT300SZ trailer mounted water well drilling rig can be pulled by tractor and other motor tractor, so it is convenient to move.
-The power is an independent diesel engine, and the winch and the turntable working through the mechanical drive.
-The drilling rig has four hydraulic jacks; they can act together or separately to make balance and the rear jack can stretch out which keep the balance.With hydraulic tower, easy to operate.
-The main parts eg. The winch, turntable,gearbox,tower,chassis are made by ourself ; the performance are stability.
-The drilling rig can be used in the filed of high-rise building, bridge,mine hole, port, foundation, water well, ground source heat pump.
-The drilling rig easy operation, easy to repair,high efficient and is the good choice of customer.
Technical parameter |
||
Drill depth(m) |
300 |
|
Drill diameter(mm) |
500 |
|
Turntable hole diameter(mm) |
500 |
|
Clockwise speed of turntable(r/min) |
50;75;114 |
|
Reverse speed of turntable (r/min) |
50;75;114 |
|
Clockwise torque of turntable(kN.m) |
13.2;8.8;5.8 |
|
Reverse torque of turntable(kN.m) |
13.2;8.8;5.8 |
|
Lifting capacity of winch(single)(KN) |
30 |
|
Swivel carrying capacity(KN) |
150 |
|
Kelly (mm) |
108x108x7500 |
|
Drill rod (mm) |
89×10×5500 |
|
Working condition(mm) |
9677×2480×13600 |
|
Transportation condition(mm) |
12500×2480×3500 |
|
Engine |
NC6110ZG17-20 water cooled, four stroke,pressed diesel engine |
|
Rated power115KW | ||
Rated rotation speed1100r/min | ||
Output torque 600N.M | ||
Mud pump |
BW850 |
|
Cylinder diameter(mm):150 | ||
Stroke(mm):180 | ||
Frequency(min-1):82,58 | ||
Displacement(L/min):850,600 | ||
Pump pressure(MPa):2,3 | ||
Input power(KW):40(54HP) | ||
