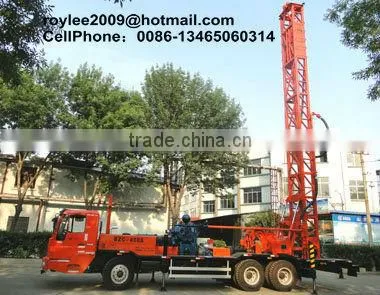

The African best choose BZC400 drilling rig

Technical parameter

 Drilling depthM

400

 Drilling diametermm

500

 Speed of turntabler/min

21.2;36;63.2;100.6;155;20.2reverse

 Torque of turntableKN.m

18;10.6;6;3.8;2.5;18.9reverse

 Single rope lifting capacity of windlassKN

30

 the max torque of whole machineKN.m

40.55

 The lifting capacity of hookKN

180

 Bearing capacity of mast (KN)

180

 The height of mast (mm)

11500

 Bearing capacity (t)

25

Pipe

 Kelly mm

108×108×7500

 Assistant pipe (mm)

89×10×5500

Hydraulic pump

 Model

CB-HP50/32Z

 Pump delivery (ml/r)

50/32

 Rated speed (r/min)

3500-3700

 Rated pressure(MPa)

20

BW850/2A

plunger pump

 Diameter of cylinder (mm)

150

 Stroke of piston (mm)

180

Theory of flow (L / min)

600      850

Rated pressure (Mpa)

3         2

Pounding  times (min^-1)

58        82

 Diameter of suction tube (mm)

127

 Diameter of drain pipe (mm)

64

 Input speed (r / min)

470

 Input power (kw)

40

 Overall dimensions (mm)

2000*1030*1400

Weight (t)

1.5

Truck chassis

 Model

TAZ5183TZJ

 Drive form

6×4

Engine

 Model

CA6DE3-20E3(Europe emission standard)

 Rated powerKW

147

 Speed r/min

2300

 Size L*W*H(mm)

11420×2500×2500

Electric generator

Model

MF

Rated power (kw)

15

Rated voltage(v)

400

Rated current(A)

27

Speed (r/min)

1500

Frequency(Hz)

50

Protection level

IP21

Insulation Class

H

 The best working gear (or speed)

5^th gear1000-1400r/min

 The highest speedKm/h

75

 Weight kg

19340

 Transport sizeL*W*H(mm)

11420×4290×3440

 Working sizeL*W*H(mm)

11420×4290×13100
