Specifications
truck mounted drilling rigdrilling depth: 600 meters
drilling diameter: 150-800mm
suitable for caly, sand, hard rock
|
|
|
|

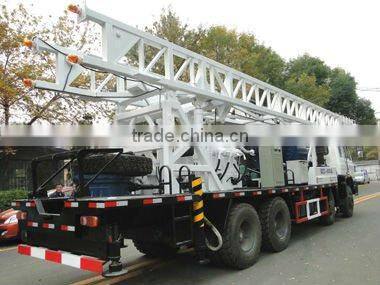

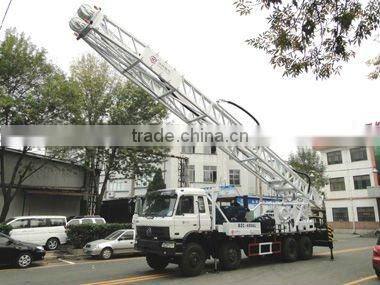

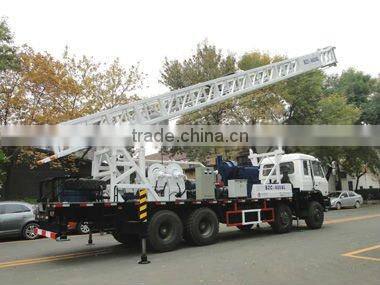

BZC600CLCA truck mounted drilling rig is directonal water well drilling rig. According to client’s requirement, the rig can carry out down-the-hole hammer drilling with USA Sullair, Japan PDSKIOOS, Sweden Atlas, China Kaishan, Hongwuhuang; can carry out air lifting reverse circulation drilling with air-water tap, double-wall drilling pipe, gas-water separator; can carry out Hydraulic DTH hammer drilling rock breaking with WB850/4-80 mud pump; can carry out core-drilling with other special drilling tools.

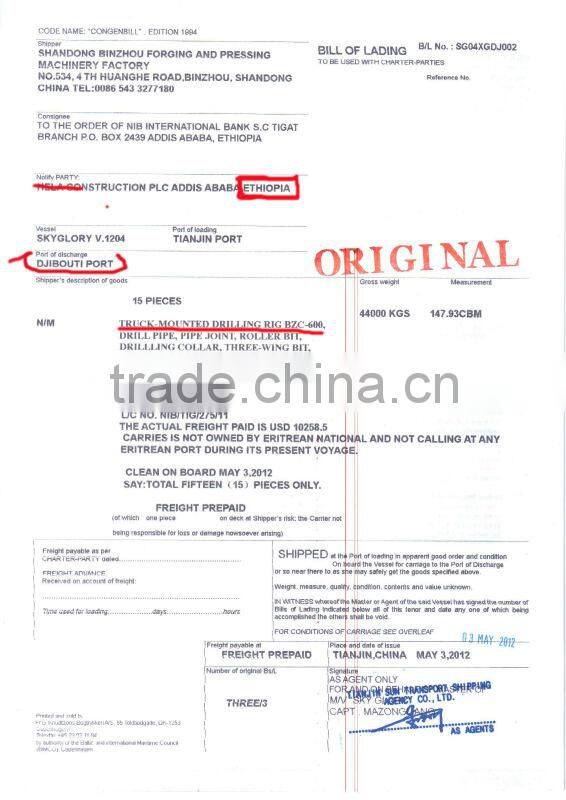

BZC600 CLCA truck mounted water well drilling rig have been exported to many countries, such as Ethiopia. the following pic is the Bill of Lading of exported to Ethiopia.

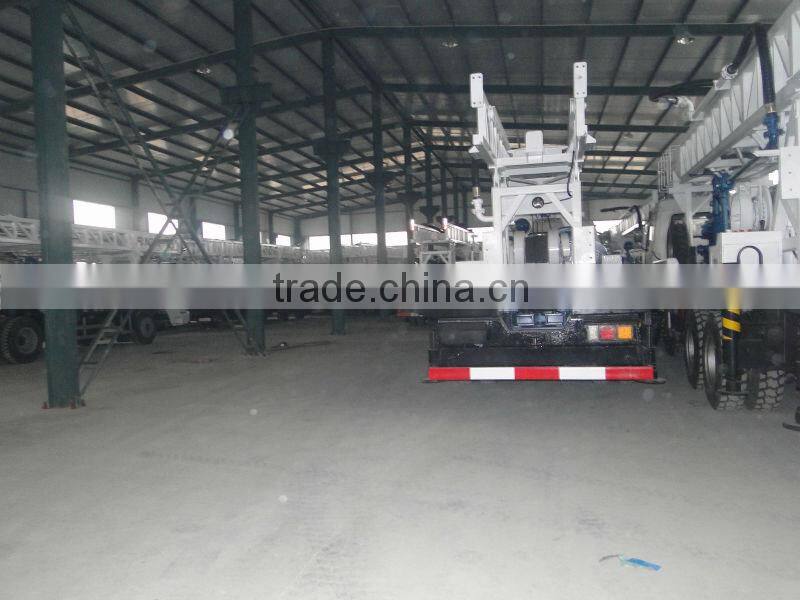

We supply our clients with enough goods on stock. the pic show BZC600CLCA truck mouned water well drilling rig in our warehouse.

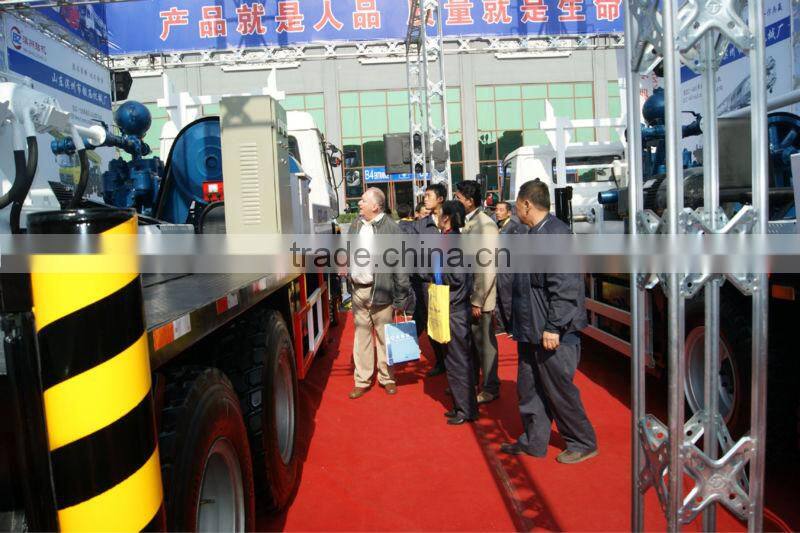

BZC600 CLCA truck mounted drilling rig in Beijing engineer machine Exhibition.
Drilling depth(M) 600
Drilling diameter(mm) 500
Speed of turntable(r/min 117;102;60;38;22;13;16(reverse)
Torque of turntable(KN.m) 5.4----50
Single rope lifting capacity of main windlass(KN) 50
Maximum lifting capacity of main windlass(KN) 300
Single rope lifting capacity of assistant windlass(KN) 60
Maximum lifting capacity of assistant windlass(KN) 240
The lifting capacity of hook(KN) 300
Bearing capacity of drilling tower (KN) 300
The height of drilling tower (mm) 15000
Drill pipe Kelly bar(mm) 108×108×10500
Assistant pipe (mm) .D89×10×9000
WB850/4-80
Theoretical flow (L / min) 500 600 700 850
Rated pressure (Mpa) 7 6 5 4
Truck chassis Drive form 8×6
Engine Model YC6A260-33YC water -cooled four strok diesel engine
Rated power(KW) 191
Speed (r/min) 2300
Electric generator Model MF
Rated power (kw) 15 / 30
Rated voltage(v) 380
The highest speed(Km/h) 75
Weight (kg) 27500
Transport size(L*W*H)(mm) 15543×2480×4032
Working size(L*W*H)(mm) 11139×2480×16749
