Water Well Drilling Rig/drill Rigs

Name: Water Well Drilling Rig/drill Rigs
Brand: BINZUAN
SKU: 133749877

US$ 101,970 - 103,500 MOQ: 1 Set

Key Specifications

Condition:

New

Type:

Other, truck mounted water well drilling rig

Power Type:

Diesel

Shandong Binzhou Forging And Pressing Machinery Factory

Payment & Shipping

Payment Methods:

Port of Shipment:

Tianjin of China

Delivery Detail:

Delivery time depends on order quantity.

Condition New

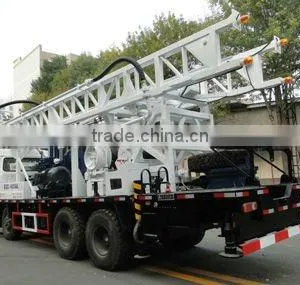

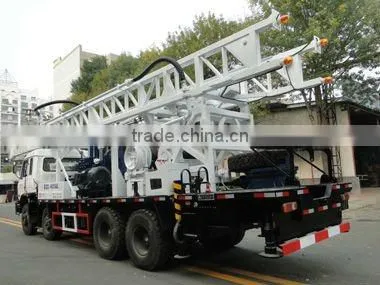

Type Other, truck mounted water well drilling rig

Power Type Diesel

Place of Origin Shandong, China

Brand Name BINZUAN

Model Number truck mounted water well drilling rig

Usage Other, Water Well, water well, construction, national defense building foundation

Warranty one year

After-sales Service Provided Engineers available to service machinery overseas

Specifications

Proven design
High usable length
Based on a hydraulic carrier
High strength and stability
High versatility

Technical parameter
			80	300
Drilling depth(M)			1500	500
80			21.2;36;63.2;100.6;155;20.2(reverse)
300			18;10.6;6;3.8;2.5;18.9(reverse)
			30
Drilling diameter(mm)			180
1500			180
500			11500
			25
Speed of turntable(r/min) 21.2;36;63.2;100.6;155;20.2(reverse)	Kelly (mm)		108×108×7500
	Assistant pipe (mm)		89×10×5500
Torque of turntable(KN.m) 18;10.6;6;3.8;2.5;18.9(reverse)	Model		CBQL-F550/F532-CFHL
	Pump delivery (ml/r)		50/32
	Rated speed (r/min)		2000
	Rated pressure(MPa)		20
Single rope lifting capacity of windlass(KN) 30 The lifting capacity of hook(KN) 180 Bearing capacity of mast (KN) 180 The height of mast (mm) 11500	Diameter of cylinder (mm)		150
	Stroke of piston (mm)		180
	Theory of flow (L / min)		600 850
	Rated pressure (Mpa)		3 2
	Pounding times (min^-1)		58 82
	Diameter of suction tube (mm)		127
	Diameter of drain pipe (mm)		64
	Input speed (r / min)		470
	Input power (kw)		40
	Overall dimensions (mm)		200010301400
	Weight (t)		1.5
Bearing capacity (t) 25 Pipe Kelly (mm)	Model		CZ5210
	Drive form		6×6
	Engine	Model	CA6DF3-18E3
		Rated power(KW)	132
		Speed (r/min)	2300
	Size (LWH)(mm)		10230×2490×2870
