Compatible With DME Temperature Controller for Hot Runner

Compatible With DME Temperature Controller for Hot Runner thumbnail-1
Compatible With DME Temperature Controller for Hot Runner thumbnail-2
Compatible With DME Temperature Controller for Hot Runner thumbnail-3
Compatible With DME Temperature Controller for Hot Runner thumbnail-4
Compatible With DME Temperature Controller for Hot Runner thumbnail-5
Compatible With DME Temperature Controller for Hot Runner thumbnail-6
Compatible With DME Temperature Controller for Hot Runner photo-1
Compatible With DME Temperature Controller for Hot Runner photo-2
Compatible With DME Temperature Controller for Hot Runner photo-3
Compatible With DME Temperature Controller for Hot Runner photo-4
Compatible With DME Temperature Controller for Hot Runner photo-5
Compatible With DME Temperature Controller for Hot Runner photo-6
Negotiable MOQ: 1 Set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Place of Origin:
Jiangsu, China
Brand Name:
MTCKING
Model Number:
MTC-E-S8
Contact Supplier Request Quote Chat Now
Suzhou Bozhen Electronics Technology Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
shanghai
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Jiangsu, China
Brand Name MTCKING
Model Number MTC-E-S8
Usage Industrial
Theory Temperature Controller
Accuracy ±1℃
Temperature Range 0~450℃
Product Description

MTC-E Series

MTC-E Model hot runner temperature control, 4.3-inch touch screen with an interface card will not burn and self-protection technology, any short circuit and wrong, so that it will not be damaged.

MTC-E-8 Series hot runner temperature controller
01
Brand name
MTCKING
02
Model
MTC-E-8
03
Control method
Touch control, communication
04
Maximum control range
12 zone
05
Manipulation Language
English, Chinese, Korean, Japanese, etc.
06
Customization
Provide customized services
07
Screen Select
4.3-inch main screen
08
Display Screen
IPS-LCD, Removable ,Wired remote control
09
Size
360mm*340mm*130mm
Important Parameter
01
Control of temperature difference
±1℃
02
Cold high-end compensatiaon
≤±1℃ TC
03
Temperature control range:
50℃-450℃ ( Temperature units can be freely selected )
04
Total output power:
3.5KW
05
Maximum output current of single loop:
15A
06
Alarm range:
0-100℃ Free set
07
Application of the rmocouple model:
K/J model
08
Work power:
AC220V/380V 60HZ
09
Control
Digital PID control
10
Operational environment:
10℃-60℃,relative humidity35%H-85%RH,Noncorrosivity
11
Depending on your needs and meet your technical requirements
Product Features
01
4.3 inch touch display
02
Show current&outputs ratio
03
color sound and light
04
Fuse fusing warning
05
Detect ther mocpuple abnormal
06
Detect heating tube abnorrmal
07
SCR temperature
08
Detect SCR short or open
09
Limit large current ,prolonging
10
380V voltage protection,avoid card broken by misconnections
11
High quality industrial components,Suitable for any environment
12
Control linear voltage output,protect the heating tube
13
New interface,completely avoid card broken
14
Software and the output line function
15
Single card control,easy to maintain
16
Depending on your needs and meet your technical requirements

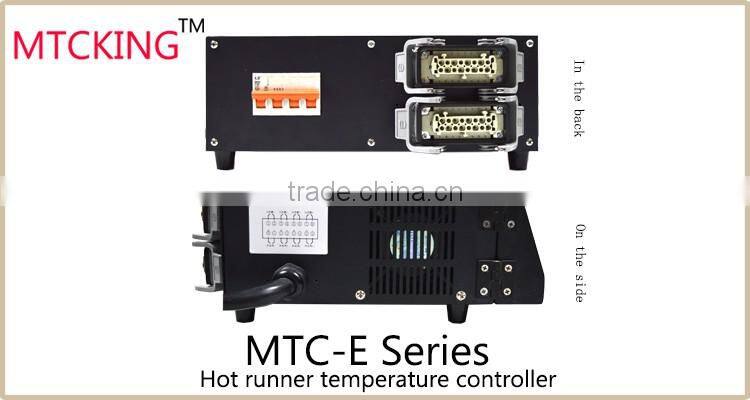

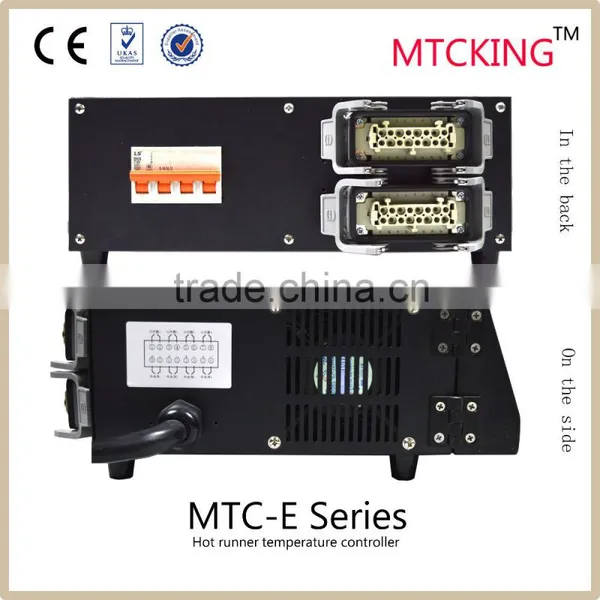

Exterior Photos

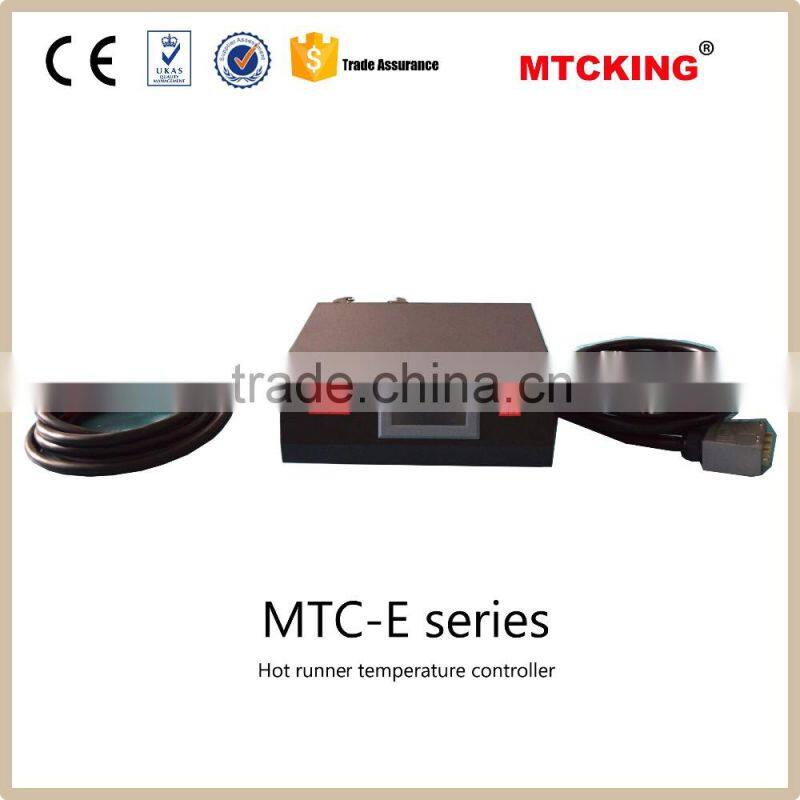

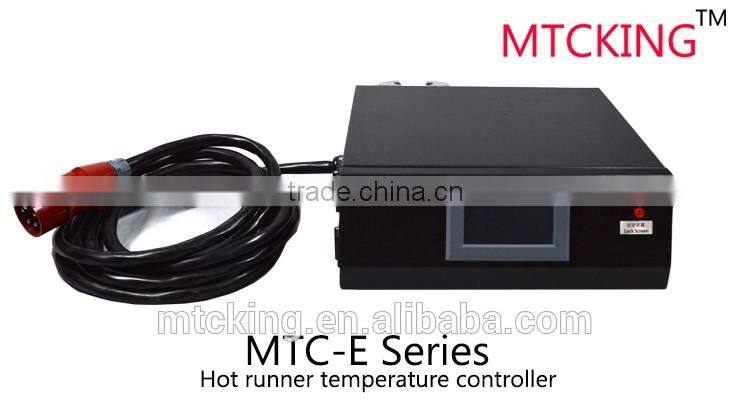

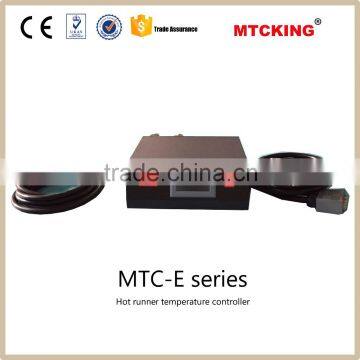

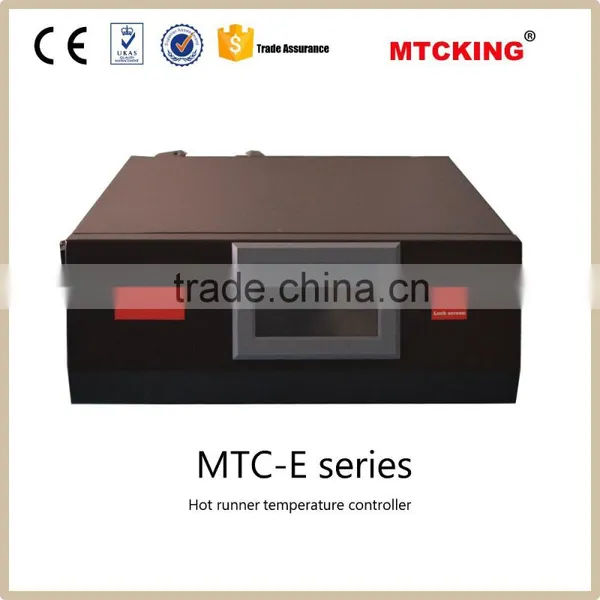

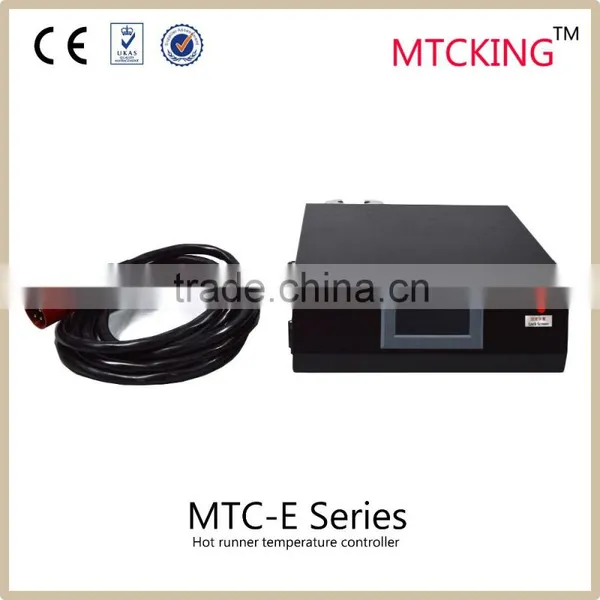

Excellent and concise, intelligent MTCE hot runner temperature controller

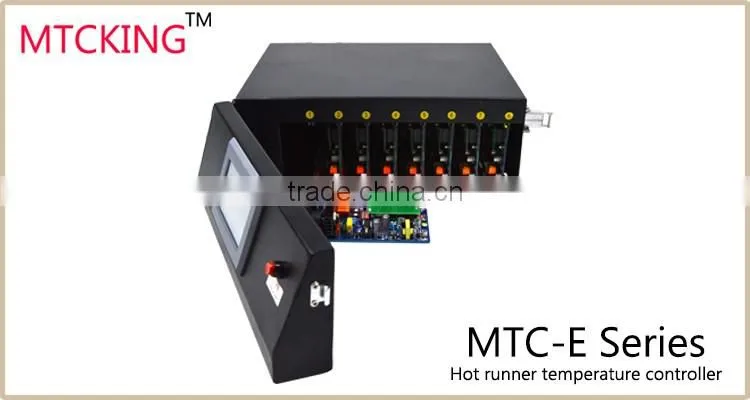

After the open, you can see the communication function hot runner temperature control card

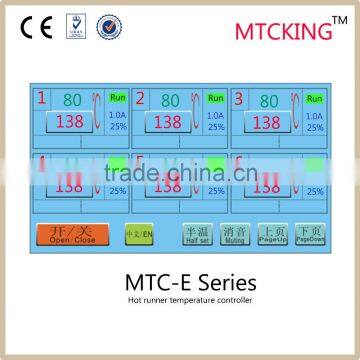

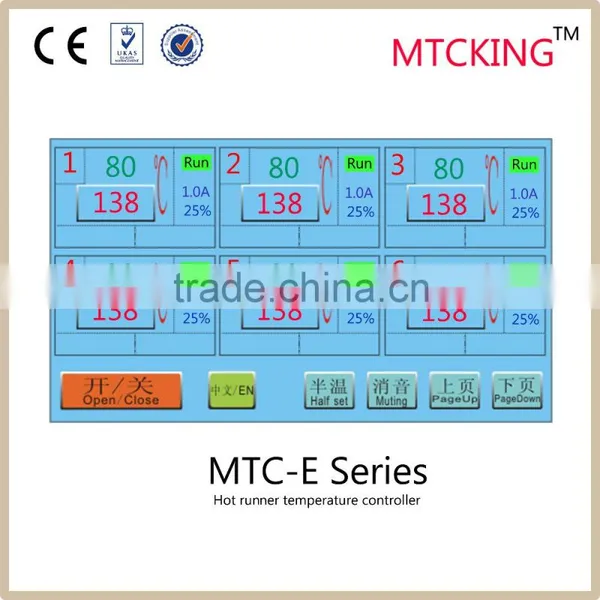

Home screen

4.3 inches touch screen, the status of each temperature control zone can be very clear, free to control the temperature control zones.

Sixth Zone Control screen

The interface of The sixth  temperature control zone, you can view the specific parameters.

Communication Cards

Touch screen can easily control the hot runner temperature control card, after receiving the communication information, it started working.

National patent Interface

Completely avoid “burn card ”,the actual effective contact area is five times that of traditional interface，Over-current capability is three times that of traditional interface。

Fitting
01
Heavy-duty cable
5m Standard configuration
02
Power cable
5m  Standard configuration
03
Power plug
16A/32A or other
04
Standby screen
According to order quantity
05
standby control card
According to order quantity
06
Manual
1
07
Depending on the need, you can customize
