Hot Runner Temperature Controller for Hot Runner System

FOB Price

Negotiable / Piece

1 Piece(Min. Order)

Port shanghai
Payment TermsMoney Gram

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Place of Origin	Jiangsu, China		Brand Name	MTCKING

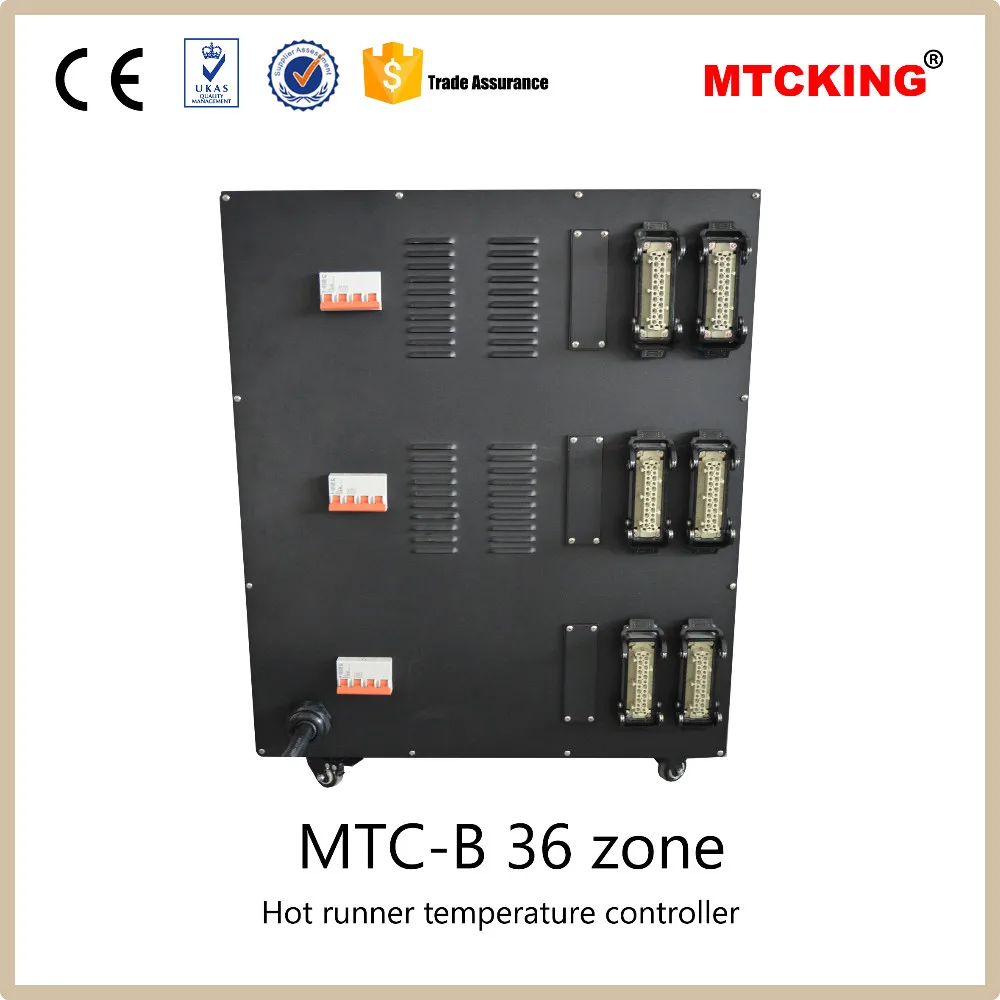

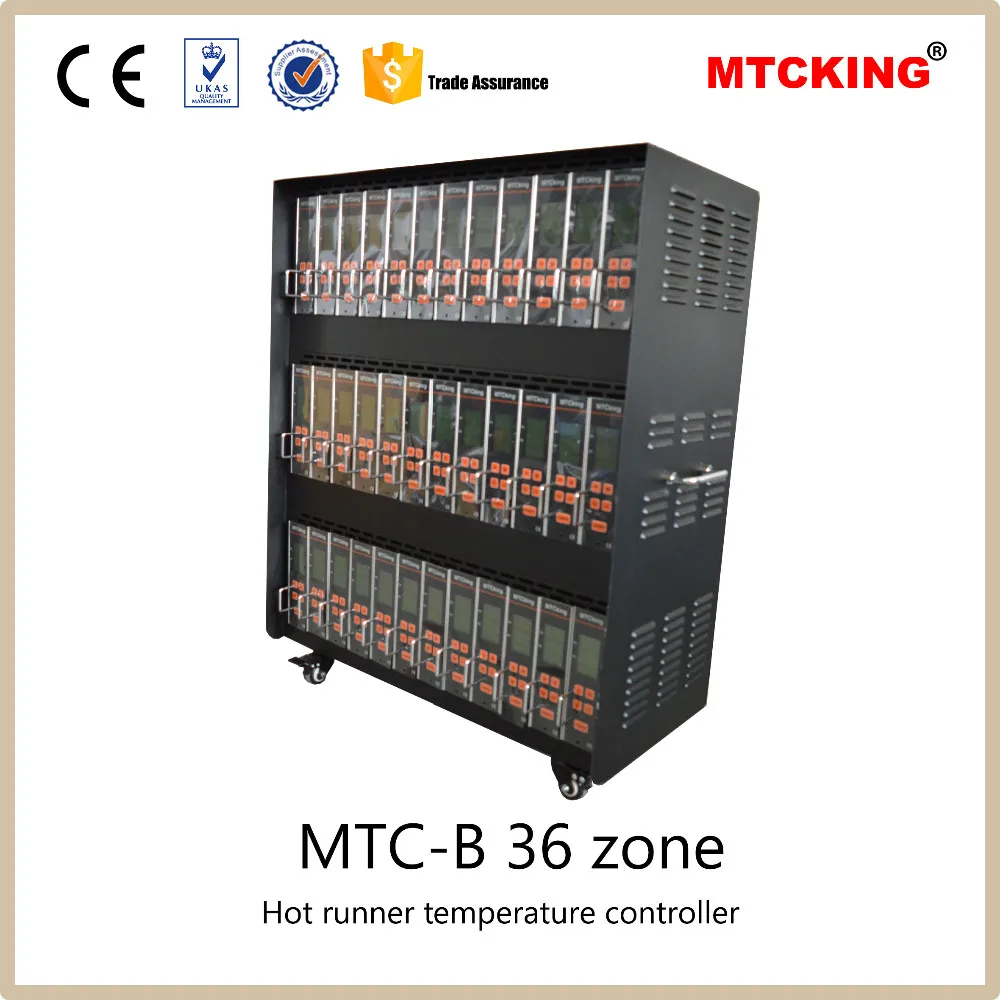

Model Number	MTC-B-36 zone

Product Description

MTC-B Series

MTC-B series of hot runner temperature controller, three line display interface, have the most perfect protection technology, national patent interface, PID control, soft start, current output display, fault alarm information, on-line current monitoring, heating wire, thermocouple failure or wrong connection will not damage any equipment. To achieve the best protection and three line display interfacetemperature control in the field of industry


01	Brand name	MTCKING
02	Model	MTC-B-36 zone
03	Control method	Physical buttons
04	Maximum control range	36 zone
05	Manipulation Language	English, Chinese, Korean, Japanese, etc.
06	Customization	Provide customized services
07	Size	310mm90mm210mm (1 zone ）
08	control technology	PID

Important parameter

01	Control of temperature difference	±1℃
02	Cold high-end compensatiaon	≤±1℃ TC
03	Temperature control range:	50℃-450℃ ( Temperature units can be freely selected )
04	Temperature unit:	free choice
05	1 Zone output power:	3.5KW
06	Maximum output current of single loop:	15A
07	Alarm range:	0-100℃ Free set
08	Application of the rmocouple model:	K/J model or others
09	Work power:	AC220V/380V 60HZ it Can be changed
10	Control	Digital PID control
11	Operational environment:	10℃-60℃,relative humidity35%H-85%RH,Noncorrosivity
12	Depending on your needs and meet your technical requirements

Product features

01	Three line display interface
02	Show current&outputs ratio
03	color sound and light
04	Fuse fusing warning
05	Detect ther mocpuple abnormal
06	Detect heating tube abnorrmal
07	SCR temperature
08	Detect SCR short or open
09	Limit large current ,prolonging
10	380V voltage protection,avoid card broken by misconnections
11	High quality industrial components,Suitable for any environment
12	Control linear voltage output,protect the heating tube
13	New interface,completely avoid card broken
14	Software and the output line function
15	Single card control,easy to maintain
16	Depending on your needs and meet your technical requirements

Detailed Images

MTC-B-6 Zone

Simple cabinet shape, free replacement of hot runner temperature control card.

Hot runner temperature control card

Three LCD display interface, fault information and production information at a glance, the most perfect self protection technology. PID hot runner temperature controller.

National patent Interface

Completely avoid “burn card ”,the actual effective contact area is five times that of traditional interface，Over-current capability is three times that of traditional interface。

Fitting

01	Heavy-duty cable	5m Standard configuration
02	Power cable	5m Standard configuration
03	Power plug	16A/32A or other
04	Standby screen	According to order quantity
05	standby control card	According to order quantity
06	Manual	1
07	Depending on the need, you can customize
