Specifications
1.IC Card Lock ;2.Work SIMENS Card ;
3.Patent And Fashion Design;
4.PVD & Chrome plated
5With Picklock-proof mortise

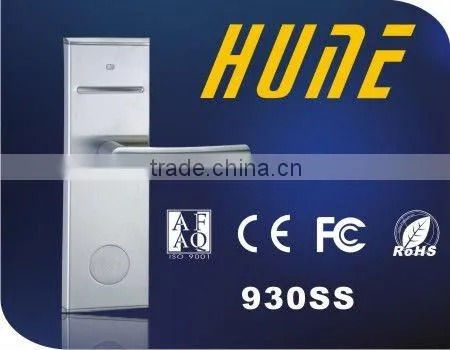

IC Card Lock
1.IC Card Lock ;
2.Work SIMENS Card ;
3.Patent And Fashion Design;
4.PVD & Chrome plated
5With Picklock-proof mortise
Performance
*Applicable card: TEMIC® contactless RF card or MIFARE ONE® contactless RF card, 100,000 times life.
*Material: Stainless steel; Stainless steel with golden PVD finished; Brass; Alloy with chrome plated---- moisture proof, fire retardant.
*Panel surface finishing: PVD—durable and lasting for 15 years at least.
*Power supply: 4 standard AAA alkaline batteries.
*Battery life: About 10 months in normal state, depending on both usage and climatic conditions.
*Low voltage warning: When power’s voltage is less 4.5V, there will be warning when unlock. The lock can still be unlocked about 200 times before the batteries are replaced.
*Static consumption: 3uA.
*Dynamic consumption: 180mA.
*Humidity: 20%-80%
*Working temperature: -25°C~55°C
*Open time: The lock will be locked again automatically 7 seconds after unlocking.
*Reliability of card insertion: No accident for 10,000 times of continuous card insertion.
Installation
*Installation request: To be installed on the door, with the thickness between 38mm and 70mm, and if the door surface is decorated, the distance between the decorative edge and the edge of the door must be over 110mm.
*Handle orientation: left hand push to open, right hand push to open; left hand pull to open, right hand pull to open
* Multiple options for mortise: ANSI mortise (5 latch mortise) / European mortise (3 latch mortise)
*Weight: 3.0kgs / set
Quality
*CE & FCC certified.
*16-step QC regimen, ISO 9001:2000-certified management, KingDee ERP system, advanced production equipment to make sure the good quality
Service
*Offering OEM/ODM service for many famous brands.
