Specifications

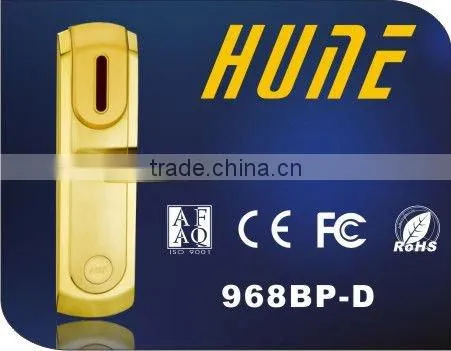

electronic door lock1.Contactless RF card lock
2.Lock with competitive factory price
3.Lock offer OEM/ODM service

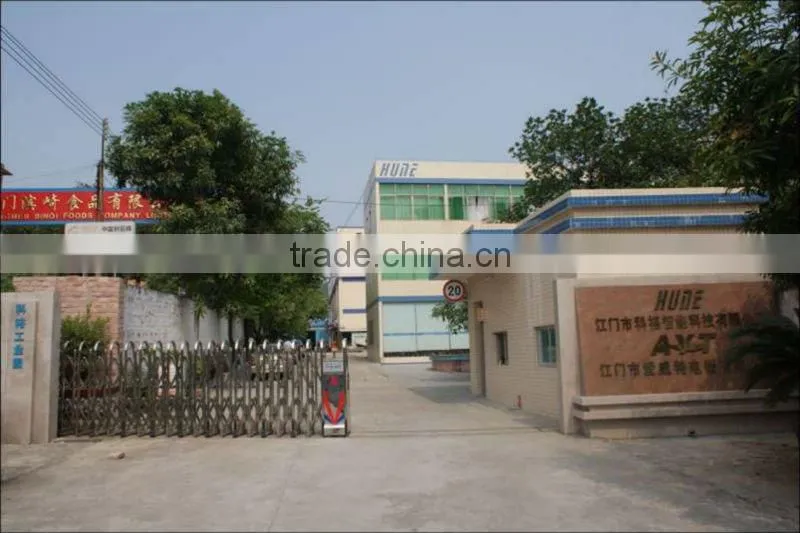

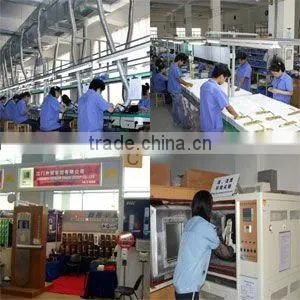

KEYU integrates R&D, manufacture, sale and maintenance together. KEYU began to design and manufacture intelligent lock in 1993, and fulfilled the products of magnetic card lock in the same year, we launched IC card lock in 1995, RF card lock in 2000, Electronic cabinet lock in 2003, and Fingerprint lock in 2006. KEYU is member of the China Lock Council. “HUNE” is our well-known brand!
wireless door lock: Contactless RF card lock; Lock with competitive factory price; Lock offer OEM/ODM service
electronic door lock
Performance
1.Applicable card: TEMIC® contactless RF card or MIFARE ONE® contactless RF card.
2.Material: Stainless steel; Stainless steel with golden PVD finished; Brass; Alloy with chrome plated---- moisture proof, fire retardant.
3.Panel surface finishing: PVD—durable and lasting for 15 years at least.
4.Battery life: About 12 months in normal state.
5.Low voltage warning: When power’s voltage is less 4.5V, there will be warning when unlock. The lock can still be unlocked about 200 times before the batteries are replaced.
6.Static consumption: 3uA.
7.Dynamic consumption: 180mA.
8.Humidity: 20%-80%
9.Open time: 7 seconds after unlocking.
10.Reliability of card insertion: No accident for 10,000 times of continuous card insertion.
11.Size: 270*60mm
12.Weight:3.0kgs
13.Packing:52*53*37
Installation
1.Installation request: To be installed on the door, with the thickness between 38mm and 70mm, and if the door surface is decorated, the distance between the decorative edge and the edge of the door must be over 110mm.
2.Handle orientation: left hand push to open, right hand push to open; left hand pull to open, right hand pull to open
3. Multiple options for mortise: ANSI mortise (5 latch mortise) / European mortise (3 latch mortise)
4.Weight: 3.0kgs / set
1. CE certificate
2. FCC certificate
3. ROHS certificate.
4.ISO 9001:2000-certified management,
5. KingDee ERP system,
6. 16-step QC regimen,
7. Advanced production equipment to make sure the good quality
