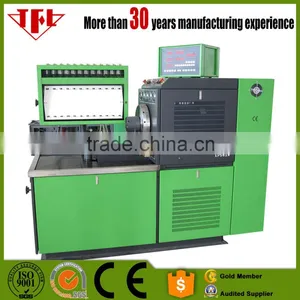

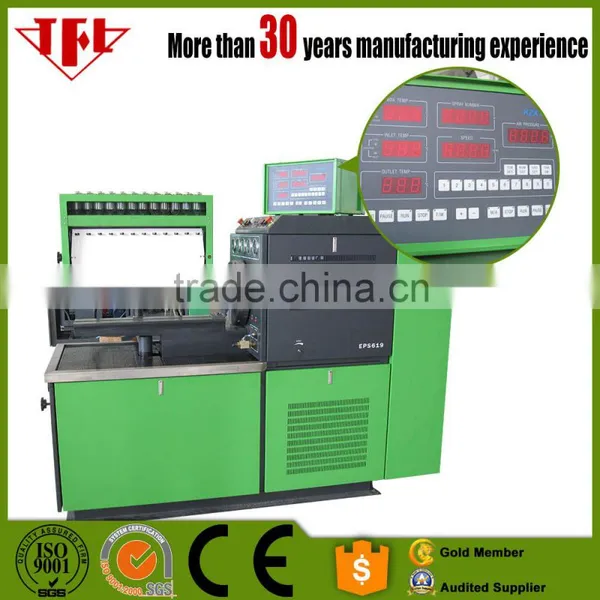

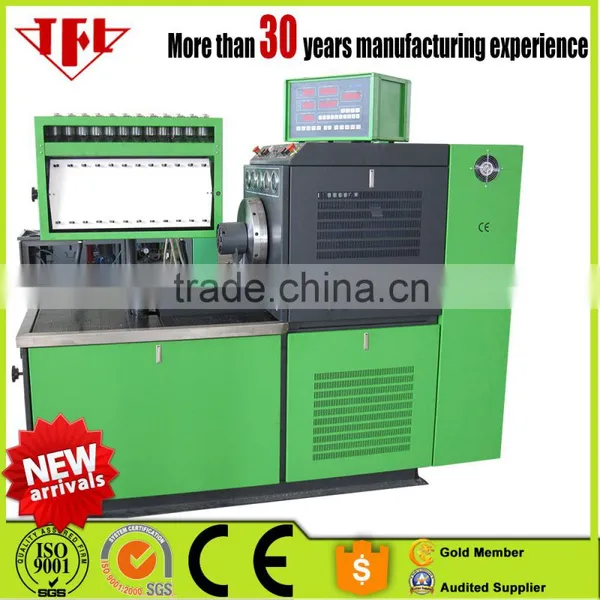

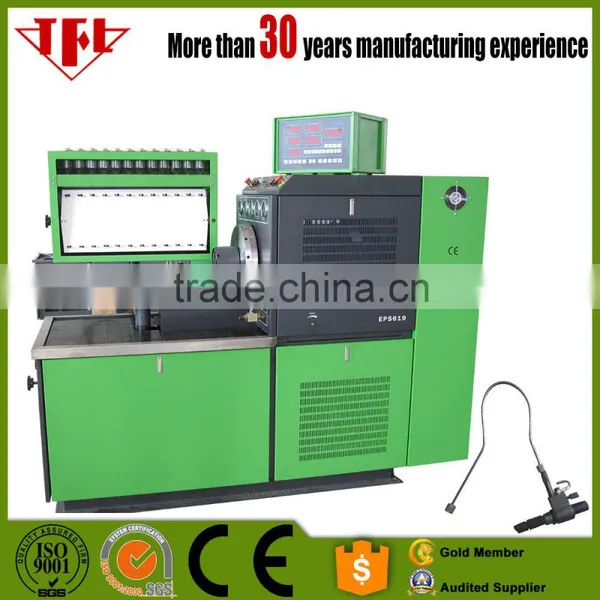

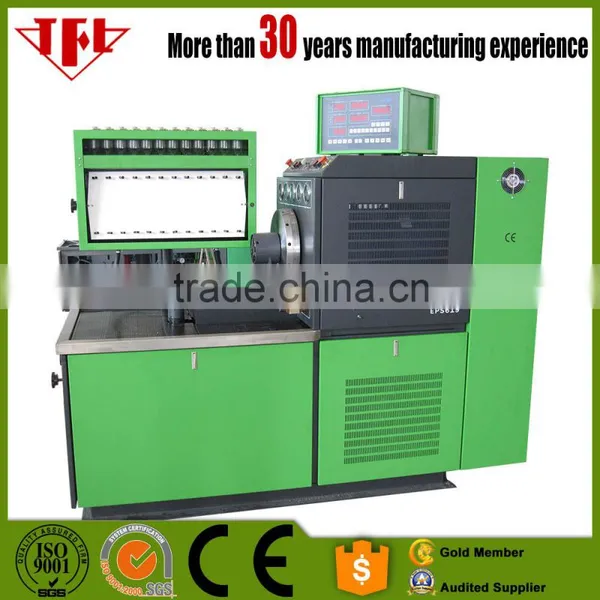

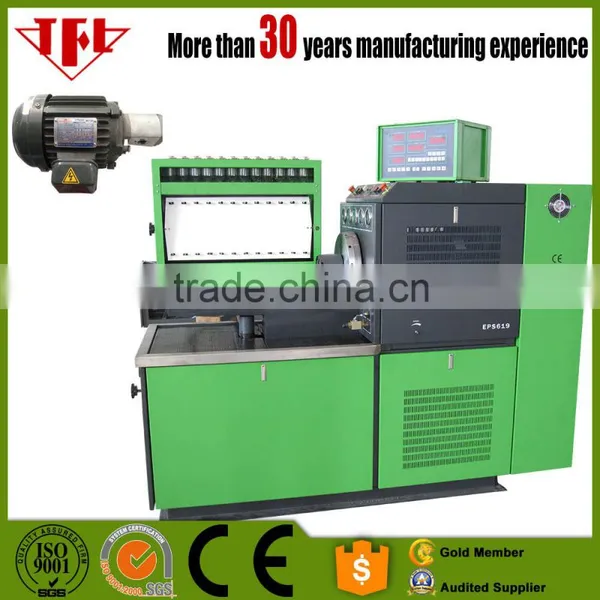

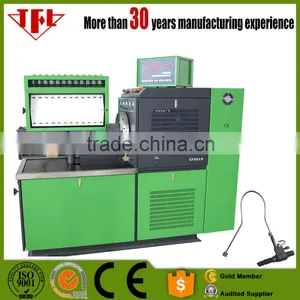

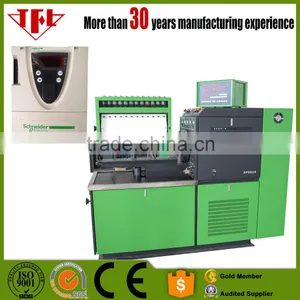

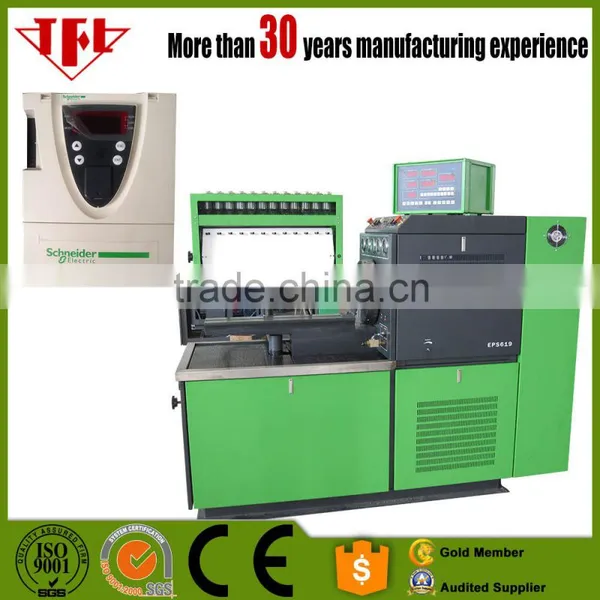

15 KW Bosch eps 619 diesel injector pump test bench on hot sale
Wuxi Tuofulaier Precision Machinery Co., Ltd. professionally manufacture the testing equipment
of oil pump and nozzle. The main products include injection pump test-bed (multi-cylinder, single-cylinder),
injection pump dependability (grinding) test-bed, high-power diesel engine unit pump test-bed, fuel
injector high-pressure flow test-bed, oil nozzle high-pressure flow test-bed, fuel injector performance
testing test-bed, fuel injector variable speed grinding test-bed, coupler performance testing equipment,
high-pressure cleaning machine, etc.
Technical parameter
| Motor power | 5.5,7.5,11,15,18.5,22,30kw |
| Power supply voltage | 415,380,220v |
| Power supply frequency | 50/60 HZ |
| Protection level | IP54 |
| Speed range | 0-4000 rpm |
| Counter setting range | 0-9999 |
| Temperature setting range | 0-80°C |
| Center height of driving shaft | 125mm |
| DC power | 12/24V |
| Diameter of the Driving connector | 120mm |
| Measuring tube | 45ml,150ml,260ml(optional) |
| Number of Measuring cylinder | 6,8,12 |
| Fuel Supply pump | 10L/min |
| Fuel supply pressure | High pressure:0-40bar;low perssure:0-4bar |
| Fuel tank cubage | 60L |
| Pressure meter | Low pressure:0-6bar;high pressure:0-60bar;inner pressure:0-16bar;Vacuum pressure:-1-2.5bar;Oil meter:0-10bar |
| Heat Power | 2kw |
| Temperature controlled range | 30-65℃ |
| Size | 2200*1100*1750mm |
| Weight | 1100kg |
1. Large inertia flywheel.
2. Automatic oil unloading device.
3. Automatic flap oil collect device.
4. High precision test of rack travel.
5. Optional installation with lubrication oil system.
6. Automatically and manually double control system.
7. Optional installation with temperature control system.
Functions
. Test feeding pump.
. Test the return volume of distributor pump.
. Test the solenoid valve of distributor pump.
. Test the cavity pressure of distributor pump.
. Test theperformance of pressure compensator.
. Test the sealing performance of the injection pump.
. Test the oil supply amount and uniformity in each cylinder.
. Test the performance of air film mechanical speed governor.
. Test and adjust the performance of mechanical speed governor.
. Test the interval angle in each cylinder and commencement of oil supply under the static state.
Workshop Photos
Service Tool
Exhibition Photos

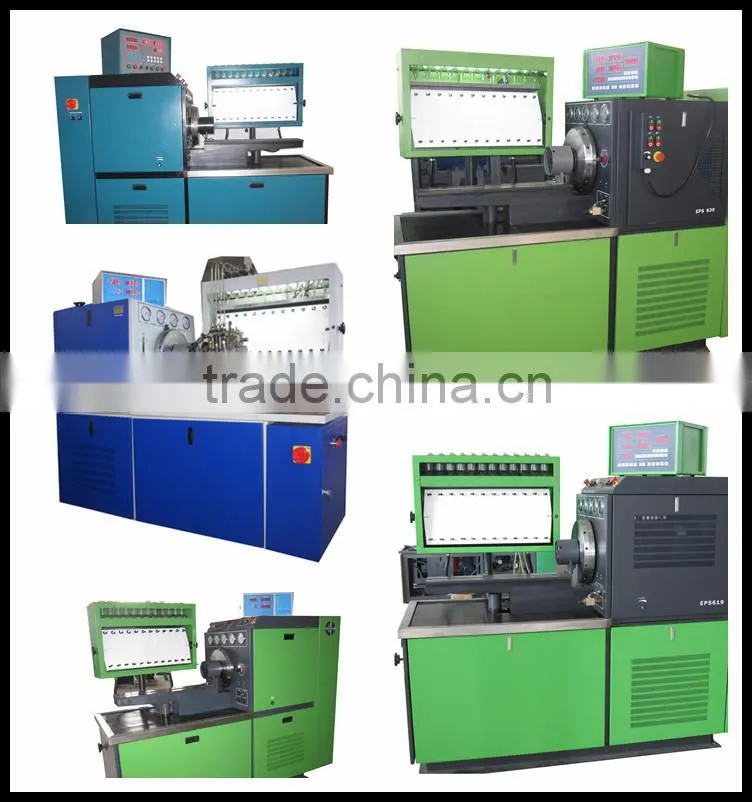

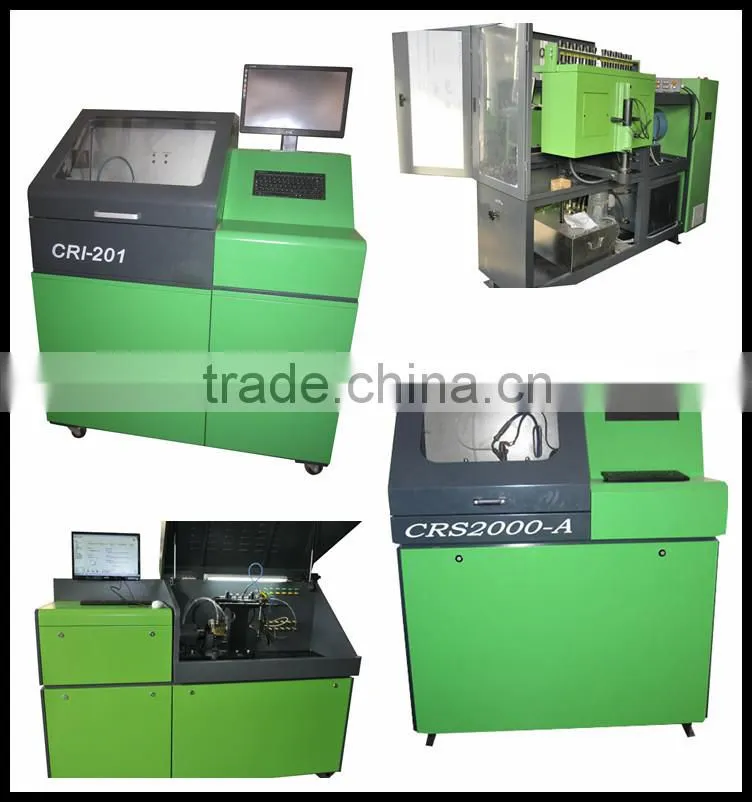

Diesel Injector Pump Test Bench
Common Rail Pump Test Bench
Wuxi Tuofulaier Precision Machinery Co., Ltd. is located in Wuxi City, on the side of the Beautiful Taihu Lake.
With advantageous geographical position, our company is located in the west of Shanghai and the east of Suzhou.
With advanced technology and strict quality management system, our company always adheres to the principle of "quality first, reputation first". Our products mainly sell well all over the country and are exported to Southeast Asia.
We have a favorable reception of products in many markets. With the enterprise principle of harmony, solidarity, development, and innovation, we never stop pushing for technology innovation and service for customers with honesty and trustworthiness. We sincerely welcome old and new customers to order and communicate with us!
