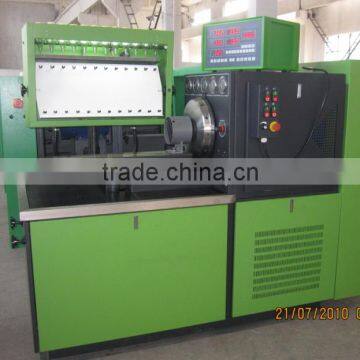

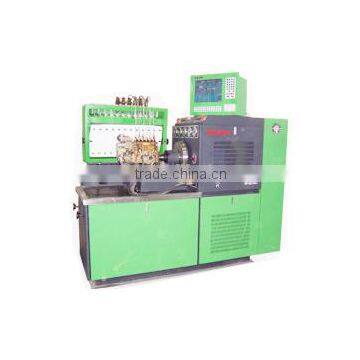

EPS 615 diesel injector pump test bench

FOB Price

USD $6,800 - $7,500 / Set

1 Set(Min.Order)

Supply Ability 100 Set / Sets per Month
Port Shanghai
Payment TermsT/T

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Place of Origin	Jiangsu, China	Brand Name	TFL
Model Number	EPS 615	Power	Other, Electronic, 15KW
Usage	Other, Universal Testing Machine, Test diesel pump performance

Product Description

High Quality Diesel Fuel Injection Pump Test Bench

1. Description Of Product

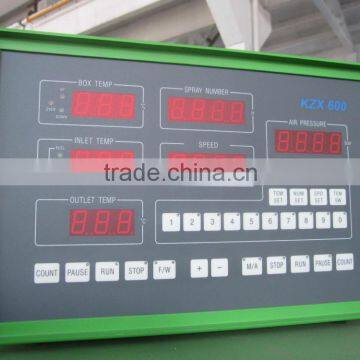

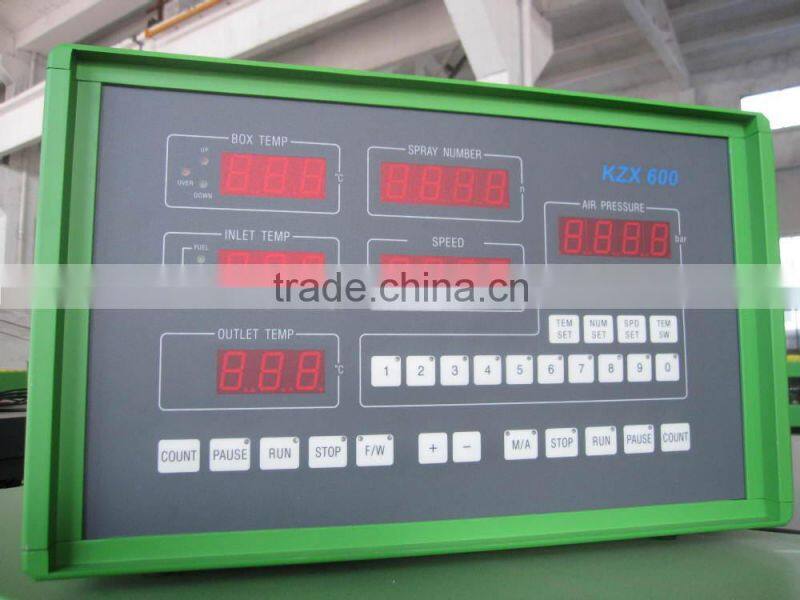

. Automatically and manually double control system.

. High precision test of rack travel

. Automatic oil unloading device.

. Large inertia flywheel.

. Optional installation with lubrication oil system.

. Optional installation with temperature control system.

. Automatic flap oil collect device.

2. Technical parameter

. Motor power:.5.5,7.5,11,15,18.5,22kw

. Power supply voltage:415,380,220v

. Power supply frequency:50/60 HZ

. Protection level:IP54

. Speed range:0-4000 rpm

. Counter setting range:0-9999

. Temperature setting range:0-80°C

. Center height of driving shaft:125mm

. DC power:12/24V

. Diameter of the Driving connector:120mm

. Measuring tube:45ml,150ml,260ml(optional)

. Number of Measuring cylinder:6,8,12

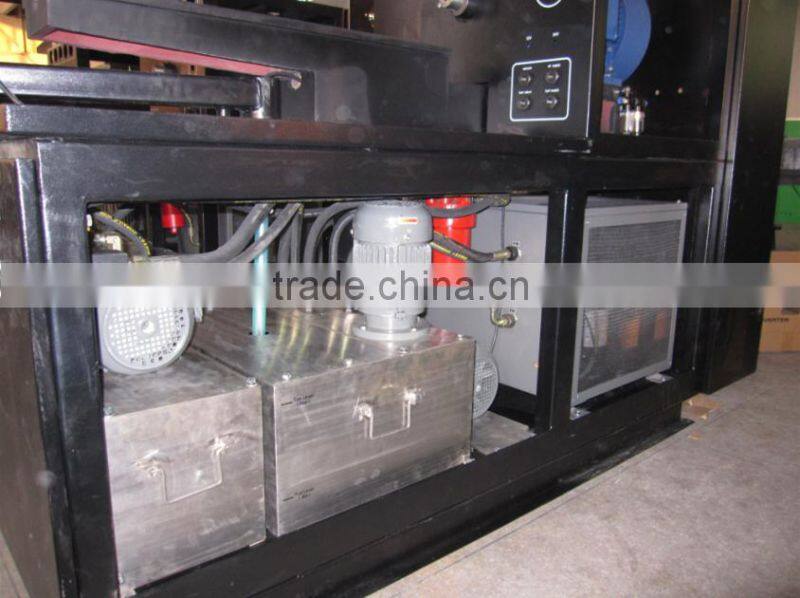

. Fuel Supply pump:10L/min

. Fuel supply pressure: High pressure:0-40bar;low perssure:0-4bar

. Fuel tank cubage:60L

. Pressure meter: Low pressure:0-6bar;high pressure:0-60bar;inner pressure:0-16bar;Vacuum

pressure:-1-2.5bar;Oil meter:0-10bar

. Heat Power:2kw

. Temperature controlled range:30-65°C

. Size: 2100*1100*1750mm

. Weight: 950kg

3. Functions

. Test the oil supply amount and uniformity in each cylinder.

. Test the interval angle in each cylinder and commencement of oil supply under the static state.

. Test and adjust the performance of mechanical speed governor.

. Test the sealing performance of the injection pump.

. Test the solenoid valve of distributor pump.

. Test the return volume of distributor pump.

. Test the cavity pressure of distributor pump.

. Test the performance of air film mechanical speed governor.

. Test theperformance of pressure compensator.

. Test feeding pump.

4. Advatage

Top technology of mould r&d, manufacturing, die steel, heat treatment
Experienced professional engineers
Advanced equipment
Professional in design,manufacte and product internal combustion engine testing equipment

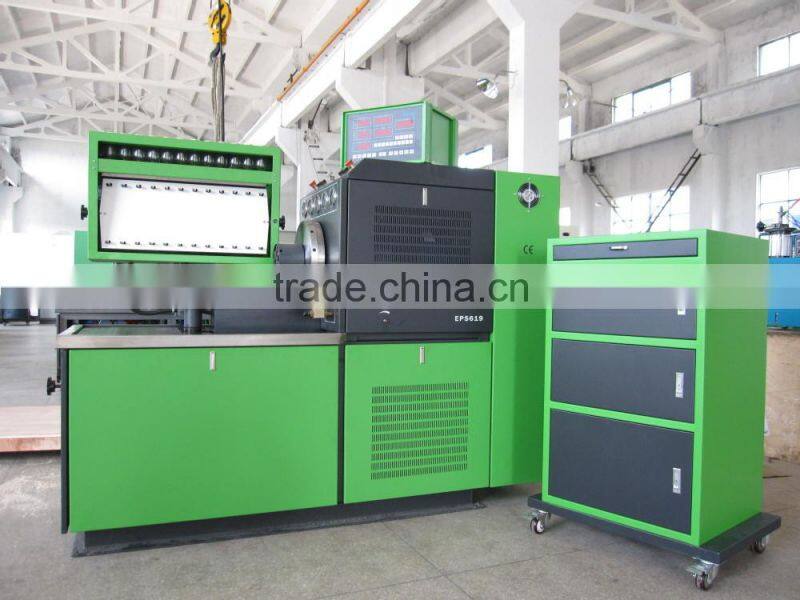

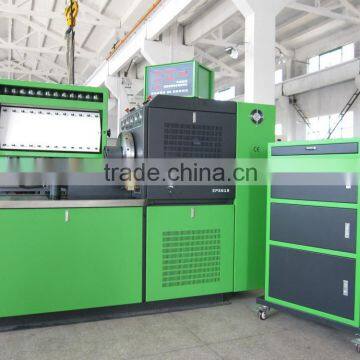

Workshop and product display

Contact person: Jack Cheng

Mobile phone: +86 18551053842

WhatsApp: jackcheng

*~Thank you for visiting us~*
