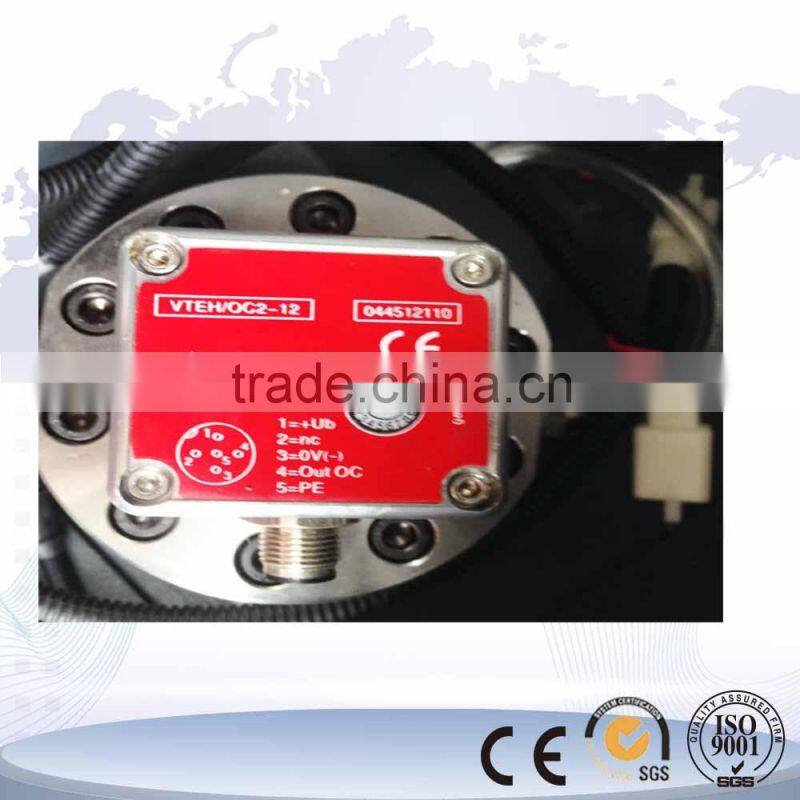

Common Rail bosch eps 815 Injector Test Bench flow sensor parts
1. Description Of Product
. Variable frequency drive common rail pump BOSCH to produce maximum pressure 180Mpa.
. Automatic closed-loop control rail press accuracy displayed is± 0.1Mpa.
. Built-in standard database of common rail injector, data can be updated and added freely by users.
. The standard database contains the waveform control data of all types of injector, and it can output the standard waveform control signal to the injector.
. It can check BOSCH, DENSO, DELPHI and SIEMENS.
. Industrial computer motherboard and embedded operating system windows XP. Its screen displays basic status such as the rail pressure, temperature, motor operation, speed, heating, cooling, also has some windows for fuel injection pump test, common rail test, fuel measurement, parameter setting, injection waveform, problem analysis and data reports.
. Touch screen operation, easy to learn and use.
. Oil injection and oil return are automatically detected and clearly displayed on the large screen.
2. Technical parameter
.Pressure Control Accuracy:±15bar
.Flow Measurement: measuring cylinder or flow automatic measurement
.Main Motor Power:11/15/18.5/22KW
.Test Number of Fuel Injector:6 pieces
.Measuring Range of Pump Flow :1-10 l/min
.Measuring Range of Fuel Supply Pressure:0-16bar
.Power:AC380V/50HZ
.Overall Dimensions (L X W X H):2300X1200X1750(mm)
. Weight:1200KG
3. Functions
. Huge database storing common rail injuector parameters can be updated regularly.
. Inspecting injector sealing performance.
. Inspecting injector spray volume and oil returned volume.
. Inspecting injector atomization quality.
. Test the cavity pressure of distributor pump.
. Automatic inspection and evaluation of injector.
. Inspection on high pressure oil supply performance of common rail pump.
. Inspection on sealing performance of CR pump and rail.
. Pressure 200 - 1800 bar adjustment, control precious ± 15 bar. Test BOSH / DENSO / DELPHI / SIEMENS CRDI injuction etc.
. High strength transparent outer cover ensuring the safety of equipment and person, test the common rail pump.
4. Advatage
- Top technology of mould r&d, manufacturing, die steel, heat treatment
- Experienced professional engineers
- Advanced equipment
- Professional in design,manufacte and product internal combustion engine testing equipment
