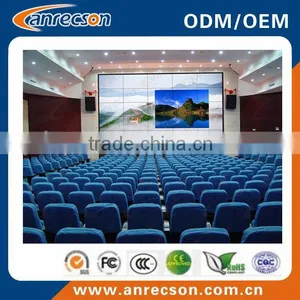

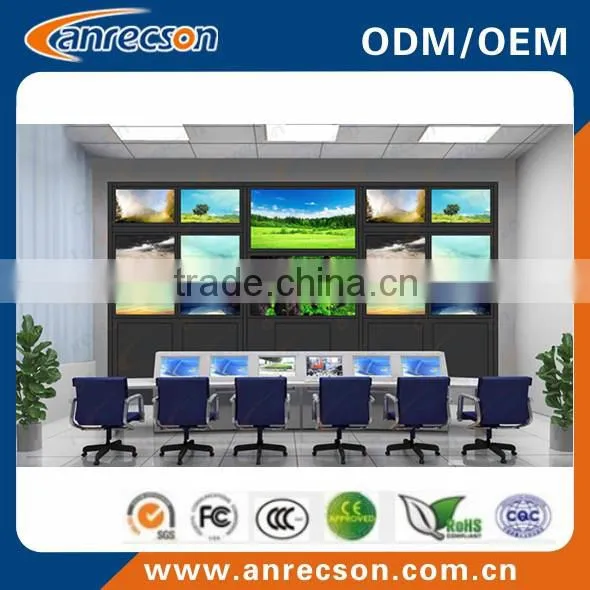

55" HD LCD Video Wall with 1080p LED video wall optional
Qualification section:
Manufacturer with registered capital of 10 million or more
Manufacturer with ISO9001 Quality Management System Certification
3C certification for products
CE, ROHS certification for products
Independent innovation certificate for products
Ministry of Public Security product testing and certification
Software copyright certificate
Specifications
various sizes from40"--60"such as40”,46”,55”,60”
Technical Specification
| Panel Specification | |||||||
| Model No. | LC-MU5502H | ||||||
| Panel Size | 55'' Samsung DID LCD Screen(super narrow bezel 5.5mm) | ||||||
| Aspect Ratio | 16:9 | ||||||
| Max Resolution Support | 1920x1080 | ||||||
| Color | 16.7M | ||||||
| Brightness (nits) | 450cd/m2 | ||||||
| Contrast | 3000:1 | ||||||
| Visual Angle (H/V) | 178° | ||||||
| Response Time | <=8ms | ||||||
| Life(hrs) | >60,000(hrs) | ||||||
| Video Wall Controller(Built-in each Screen) | |||||||
| DVI in | 1 | ||||||
| HDMI in | 1 | ||||||
| VGA in | 1 | ||||||
| Composite Video Input | 2(BNC×2) | ||||||
| Y,Pb,Pr/Y,Cb,Cr input | 1 (BNC×3) | ||||||
| Composite Video Output | 2 (BNC×2) | ||||||
| S-video | 1(BNCX2) | ||||||
| Control signal input and loop out | RS232(RJ45-8) | ||||||
| Split Screen | Support Picture in Picture(PIP/POP) | ||||||
| Video System | |||||||
| Color System | PAL/NTSC/SECAM | ||||||
| HDTV Mode | 480P,576P,720P,1080P | ||||||
| 3D Combfilter | YES | ||||||
| OSD Display | Chinese/English | ||||||
| Power | |||||||
| Power Supply | AC100V~240V, 50/60Hz | ||||||
| Maximum Power Consumption | <=220W | ||||||
| Standby Power Consumption | <=5W | ||||||
| Temperature | |||||||
| Working Temperature | 0°C~50°C | ||||||
| Working Humidity | 20%-80% | ||||||
Processor Specifications
LC-S03 Splicing unit processor | |||
Item |
Type |
Mode |
lc-s03a |
Equipment scale |
Splicing Scale |
Splicing screen unit |
32 max. |
Capture scale |
HD Capture |
24 max. |
|
SD Capture |
192 max. |
||
Configuration |
Main processing unit |
processor |
Intel Celeron processor |
RAM |
2G DDR3 1333 |
||
hard disk |
8G SSD |
||
Control PC operating system |
Windows XP |
||
Network interface |
1 , 10M/100M/1000M adaptive network port |
||
USB |
3xUSB2.0,1xUSB 3.0 |
||
Display Interface |
VGAx1,DVIx1 |
||
Chassis configuration |
Chassis height |
6U |
|
Input card |
12 |
||
Output card |
16 |
||
Signal processing capability |
Signal output |
DVI |
DVI-D digital interface, 1024*768,1280*720,1366*768,1920*1080 supported |
Signal acquisition |
DVI,HDMI |
DVI-D digital interface, support 800*600~1920*1080P, adaptive |
|
VGA |
DB-15M Analogue interface,support 800*600~1920*1080P,adaptive |
||
SDI |
SD/HD-SDI SMPTE 259M/292M, Resolution support:720P50/60,1080P25/30/50/60 |
||
Other |
Power |
100VAC~240VAC 50/60Hz |
|
Power consumption |
<200W |
||
Operating temperature |
-30°C~50°C |
||
Working Humidity |
5%~95% Non-condensing |
||
Dimension |
Width 482.5mm x depth 320mm x height 266mm |
||
Weight |
20Kg |
||
| |||
Multifunctional splicing processors:
Features: Video processing capabilities
1. Various of ways for flexible windows , full range roaming, overlaying, scaling etc., no limitation for windows position, size and proportion.
2. The maximum number of windows for single-screen can be 48, with all window screen display in all real time display without dropped frames.No layer limitation for windows overlying
No need for plug-in matrix, it can support any roaming and overlying for all windows with in the screen.
3.Ultra HD static background picture (multiple image formats support). Multiple windows static layout supported which is easy to replace and make the background more corlorful.
4.Ultra HD scrolling caption supported and font , color, size , scrolling speed and direction , background color, background transparency, etc. can be flexible chosen.
5.Ultra HD component input which support 3840 * 1080,5760 * 1080,3840 * 2160 ; with all screen details fine and clear.
6.Synchronous echo support for sub-screen monitor, and synchronous display for the main video wall screen picture on one or more display unit screen can be set.
7.Proprietary solution that is adaptive for interlacing , scaling , OSD technology that the picture is clear and smooth .
Package: Safe standard package or Wooden case package
Shipping: 1~15days.
Company Showing

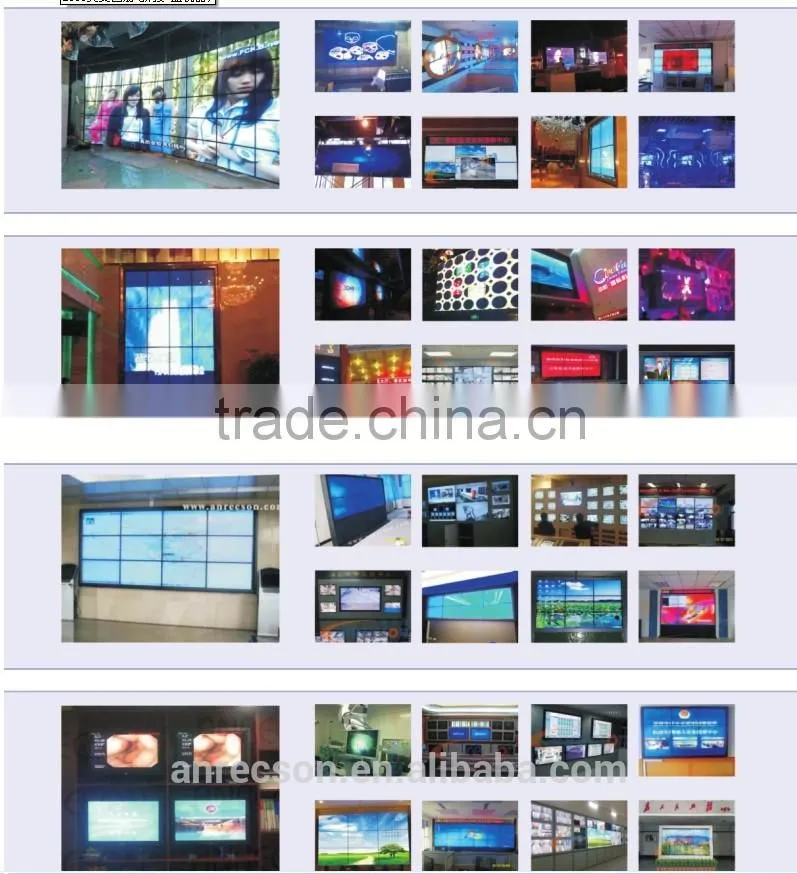

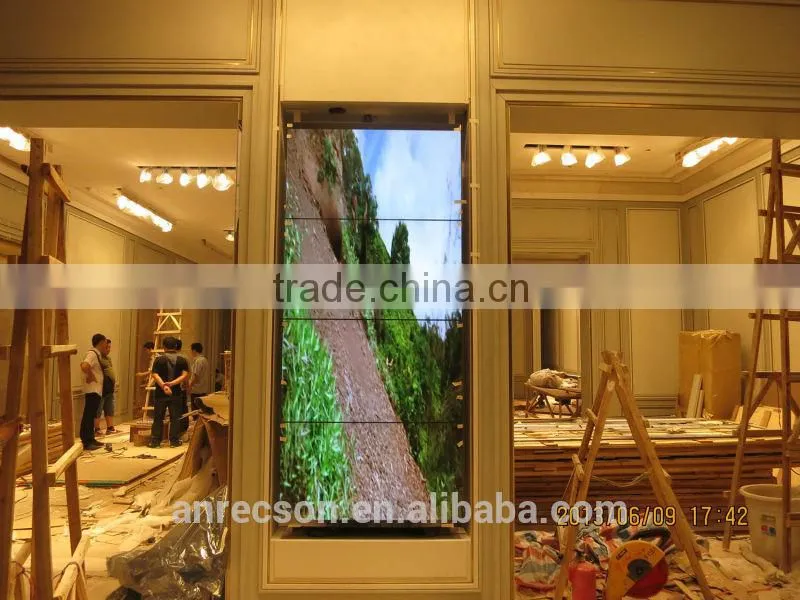

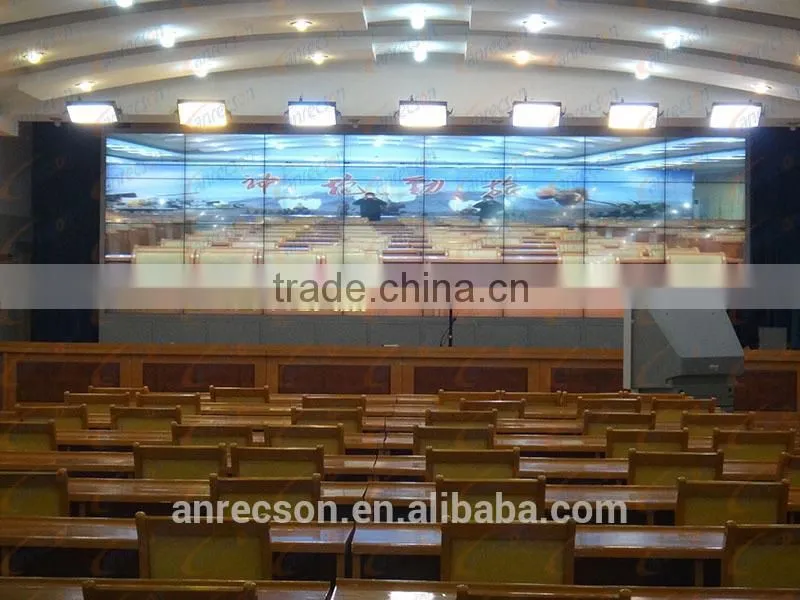

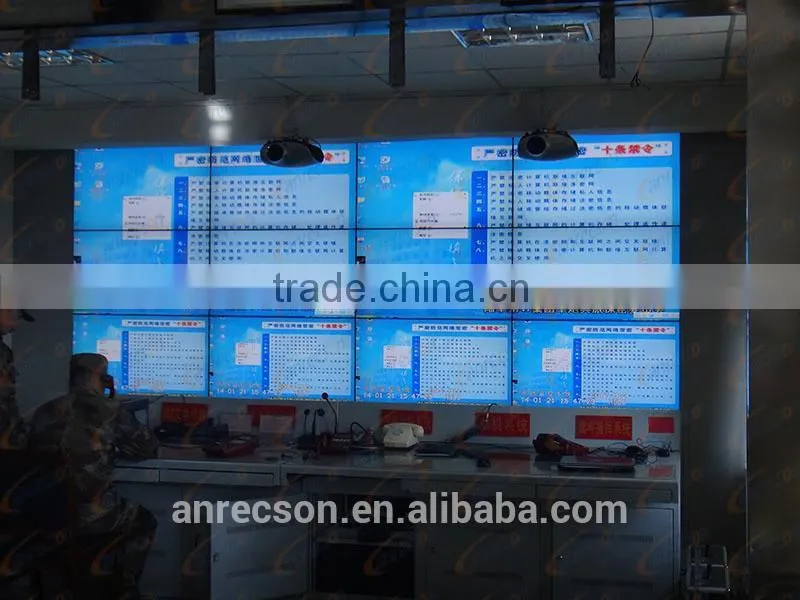

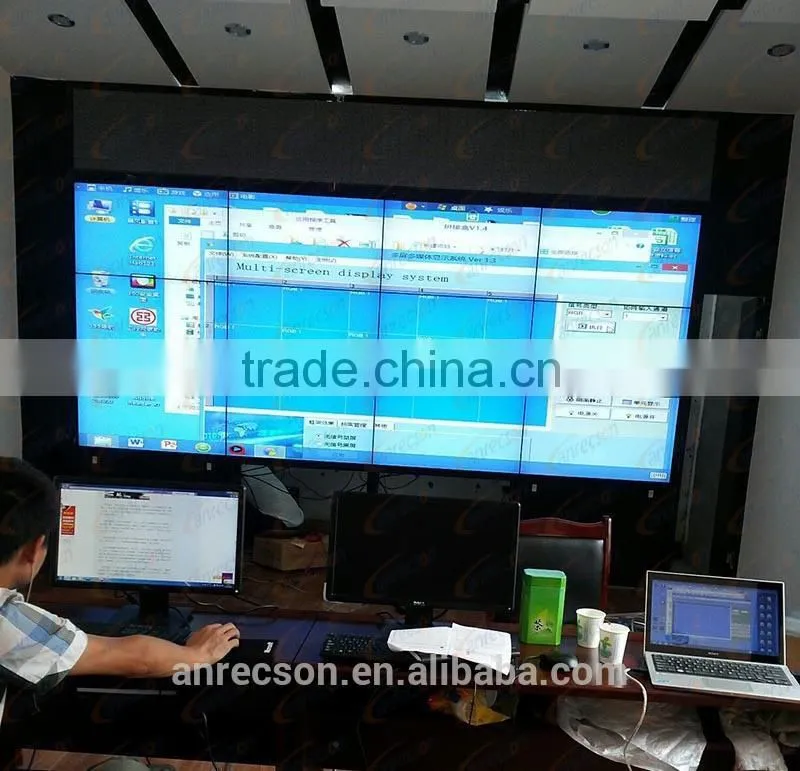

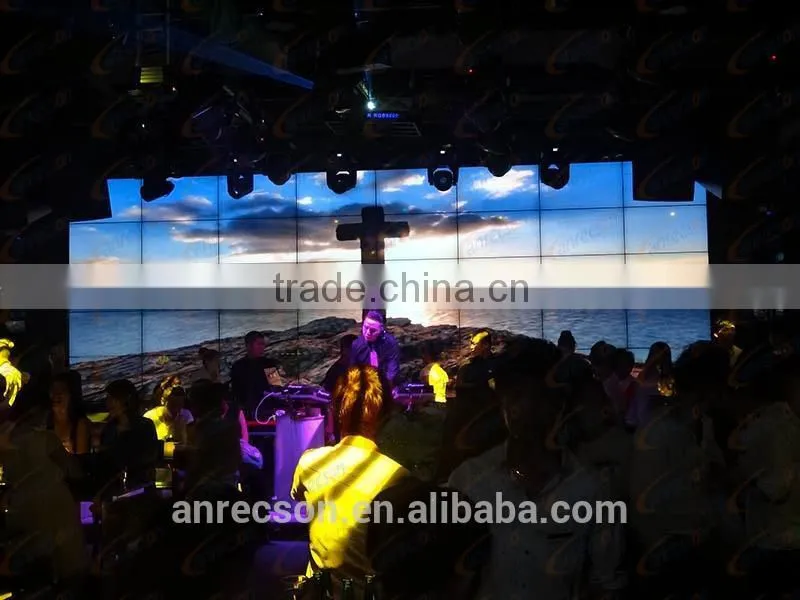

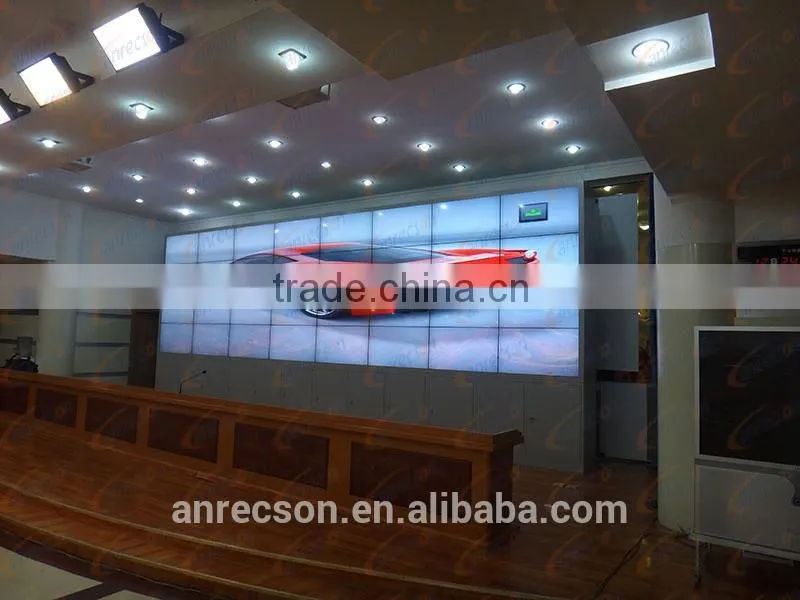

Application Case
Exihibition Showing
CeBIT Hannover 2013, Canton Fair, 2013 ISC WEST, China Sourcing Fair(HK), EXPOSEC 2013(Brazil), Computex Taipei 2013
Worldwide supplier of lcd monitor(open frame monitor, industrial monitor, touch monitor, CCTV monitor, medical monitor, etc), Panel PC, high brightness product, lcd digital signage, transparent LCD, Since 1998
After sale service
Anrecson product’s warranty time is one and a half year(LCD panel and high brightness product is 1 year).
²DOA
²RMA
²Paid Maintenance
Trade terms: EXW, FOB,CIF etc
