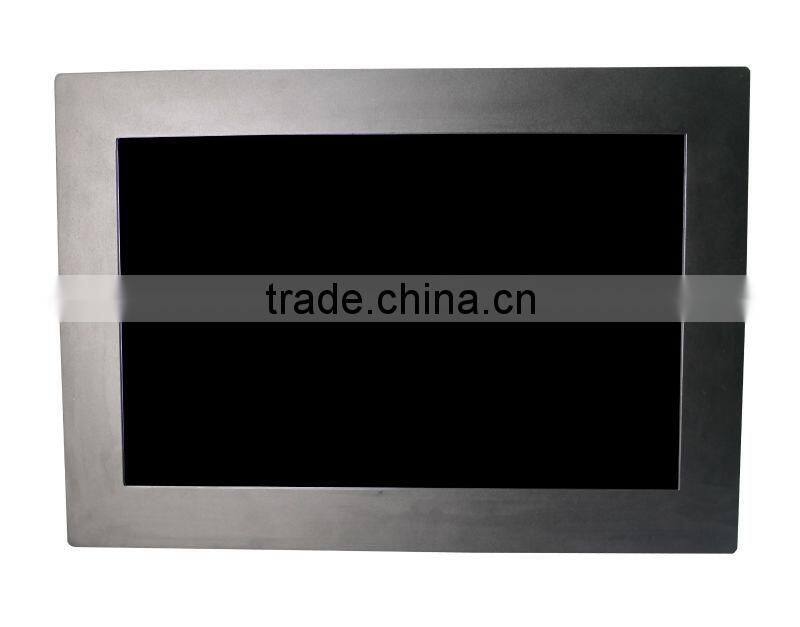

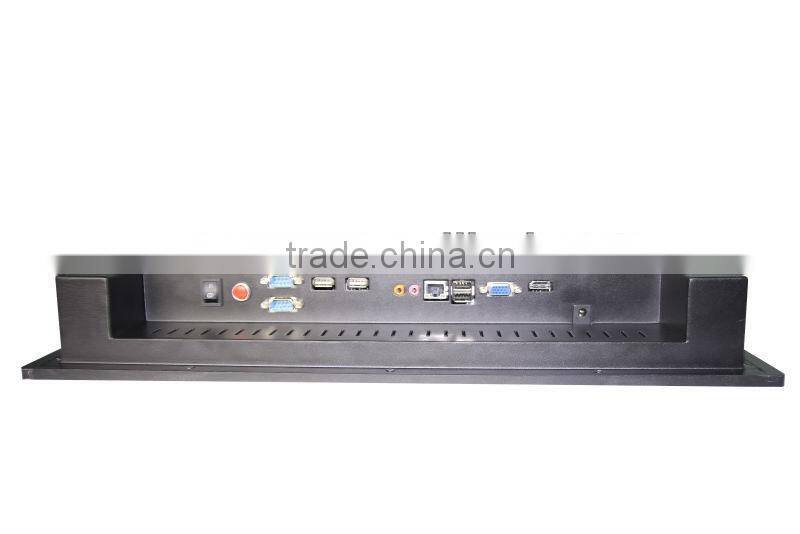

19 inch Intel N2600+NM10 industrial touch panel pc all-in-one
Feature Descriptions :
various sizes from7"--46" such as:7",8",10.4",12.1".15",17”,18“,19”,20",21.5",22",24"26"32”37”40”42”46”
1. fanless design for less noise
2 .DDR3(800/1066/1333MHz)Typ. 2G (Max 4G)(optional)
3.SSD 16G (optional), Resistive 5 W touch
4. Sumsang panel,High configuration,vibration proof
5.wide temperature and humidity
6. Open Frame touch( or industrial panel PC with aluminum bezel optional)
7. Any customized service
8.CE, RoHS, FCC, CCC certificates.
9. for medical panel PC, marine panel PC, for information display, embedded in industrial automatic device
Data sheet:
| Specification | ||||||
| Item | Project | Parameter | ||||
| LCD Display | Display Type/Size | Color TFT LCD/19″ | ||||
| Active Display Area (mm) | 376.32mm(W)×301.056mm(H) | |||||
| Display Mode | 4:3 | |||||
| Max Resolution | 1280×1024 | |||||
| Support Color | 16.7M | |||||
| Luminance(cd/m2) | 250nit | |||||
| Backlight | LED backlight | |||||
| Contrast Ratio | 1000:1 | |||||
| Response Time | 3.7ms | |||||
| Pixel Pitch | 0.294(H)×0.294(V) | |||||
| Viewing Angle | 170/160(H/V) | |||||
| Processor System | Chip set | Intel NM10 | ||||
| CPU | Intel N2600 | |||||
| Internal memory | DDR3 (800/1066/1333MHz) Typ. 2G (Max 4G)(optional) | |||||
| Hard disk | 16GB high speed solid state hard disk (optional) | |||||
| HDMI ports | 1xHDMI Port | |||||
| COM ports | Defaultx2 COM(optional) | |||||
| Ethernet ports | Two Realtek 8111E 1000 Mbps /(optional Wi-Fi connectivity supporting 802.11 a/b/g.) | |||||
| Audio | with Realtek ALC662 Line-In/Line-Out/Speaker out with 3W AMP Circuit |
|||||
| USB ports | Defaultx4 USB(Max x6) | |||||
| Touch Type(optional) | TouchScreen Type | Resistive(4-wire/5-wire) | ||||
| Optional Touch Type | SAW, IR, Capacitive | |||||
| TouchScreen interface | Serial (RS232) or USB | |||||
| Power supply | Input Voltage | DC12V 4A | ||||
| Output Rating | <=30W | |||||
| Temperature Range | Operating Temperature | -20~70°C | ||||
| Storage Temperature | -20~70°C | |||||
| Relative Humidity | 20(%RH)~90(%RH) | |||||
Company Showing
CeBIT Hannover 2013, Canton Fair, 2013 ISC WEST, China Sourcing Fair(HK), EXPOSEC 2013(Brazil), Computex Taipei 2013
Worldwide supplier of lcd monitor(open frame monitor, industrial monitor, touch monitor, CCTV monitor, medical monitor, etc), Panel PC, high brightness product, lcd digital signage, transparent LCD, Since 1998
After-sale Service
Anrecson product’s warranty time is one and a half year(LCD panel and high brightness product is 1 year).
DOA: If any product has quality problem, excluding damages caused by natural disasters or by human factors, we will give you
unconditional replacement within 30 days from the day you receive it. Anrecson will undertake all transportation expense for this
replacement.
RMA: Beyond the above mentioned 30 days but within the one and half years of guarantee time, if any product has quality problem,
excluding damages caused by natural disasters or by human factors, we will undertake half of transportation fee, that is, the customer
will pay the transportation fee for the goods back to Anrecson and Anrecson for the goods back to the customer.
Paid Maintenance: Beyond the warranty time of one and a half years, if any product is in malfunction and needs repairing, the customer
should pay reasonable fee for the repairment service according to the established price list of maintenance and undertake all the transportation
fee in the process of repairment. After customer’s agreement, we will immediately provide our service for the customer.
