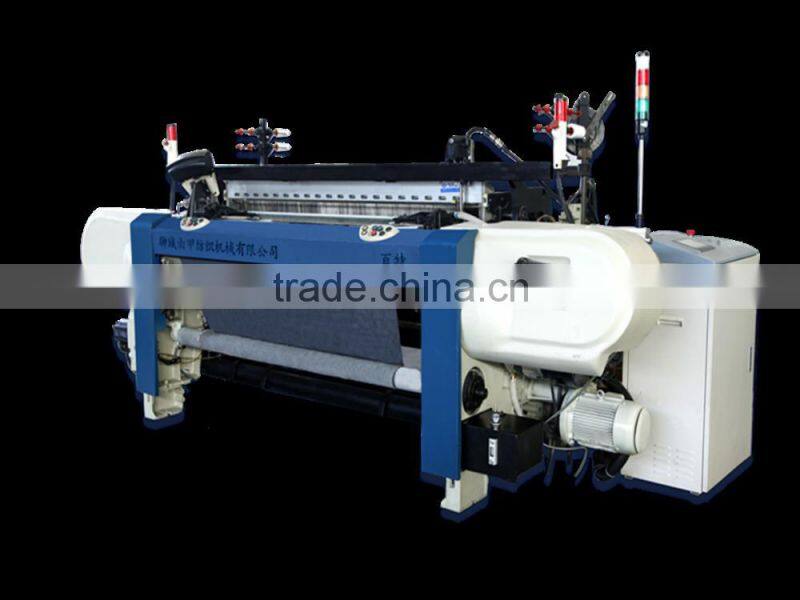

Better High Speed Rapier Loom

Better High Speed Rapier Loom thumbnail-1
Better High Speed Rapier Loom thumbnail-2
Better High Speed Rapier Loom photo-1
Better High Speed Rapier Loom photo-2
US$ 27,000 - 32,000 MOQ: 4 Sets
Key Specifications
Get Latest Price
Condition:
New
Type:
Dobby Weaving Machine
Place of Origin:
Shandong, China
Contact Supplier Request Quote Chat Now
Shandong Liaocheng Shenhao Metal Product Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Tianjin/Qingdao
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Condition New
Type Dobby Weaving Machine
Place of Origin Shandong, China
Brand Name YOUJIA
Model Number BETTER
Weight 4000kg
Power(W) 5.5kw
Certification ISO
Warranty One Year
After-sales Service Provided Engineers available to service machinery overseas

Reed width (mm) : 190mm, 220mm, 260mm, 280mm, 360mm



Max. Width reduction (mm): 500



Running speed: 350-550 rpm



Max. Performance: 1200m/minute



Pick density: up to 130 picks/cm, which can be adjusted according to weaving fabrics



Yarns woven: Discontinuous yarn: Nm200-Nm3(Ne120-Ne1.8), Continuous yarn: 22den-3000den (25dtex-3300dtex)



Weft sensor: anti-double wefts function



Reed motion: Sley driven by 2 sets of conjugated cams



Shedding motion: 8-20 hooks electronic dobby.



Let-Off motion: Electronic type with continuous driven motor



Diameter of weaving beam: 600-1000mm



Back rest: Single backrest, Double backrest



Selvage: 2 ends independent leno selvedge motion.



Warp stop motion: with 6 rows separated electrical droppers.



Take-up motion: electronic take-up synchronized with shedding motion



Machine drive: super SRD motor drives the machine



Pick finding: electro-magnetic automatic pick finding



Control system: controlled by computer with clear LCD and humanity design



Lubrication: with continuos forced oil circulation system



Guide hooks: Single-side guide hook design, which can reduce friction to warp yarn and warp brake rate, can weave yarns of different ranges and you also have free-fly alternatively

Better High speed Rapier loomBetter High speed Rapier loom
