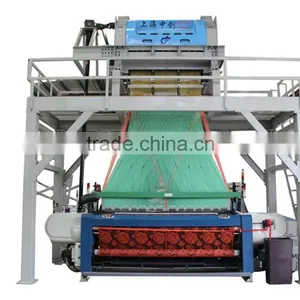

Help CenterBetter High Speed Jacquard Loom
Related Products
Reed width (mm) : 190mm, 220mm, 260mm, 280mm, 360mm
Max. Width reduction (mm): 500
Running speed: 350-550 rpm
Max. Performance: 1200m/minute
Pick density: up to 130 picks/cm, which can be adjusted according to weaving fabrics
Yarns woven: Discontinuous yarn: Nm200-Nm3(Ne120-Ne1.8), Continuous yarn: 22den-3000den (25dtex-3300dtex)
Weft sensor: anti-double wefts function
Reed motion: Sley driven by 2 sets of conjugated cams
Shedding motion: 8-20 hooks electronic dobby.
Let-Off motion: Electronic type with continuous driven motor
Diameter of weaving beam: 600-1000mm
Back rest: Single backrest, Double backrest
Selvage: 2 ends independent leno selvedge motion.
Warp stop motion: with 6 rows separated electrical droppers.
Take-up motion: electronic take-up synchronized with shedding motion
Machine drive: super SRD motor drives the machine
Pick finding: electro-magnetic automatic pick finding
Control system: controlled by computer with clear LCD and humanity design
Lubrication: with continuos forced oil circulation system
Guide hooks: Single-side guide hook design, which can reduce friction to warp yarn and warp brake rate, can weave yarns of different ranges and you also have free-fly alternatively
Reed width (mm) : 190mm, 220mm, 260mm, 280mm, 360mm
Max. Width reduction (mm): 500
Running speed: 350-550 rpm
Max. Performance: 1200m/minute
Pick density: up to 130 picks/cm, which can be adjusted according to weaving fabrics
Yarns woven: Discontinuous yarn: Nm200-Nm3(Ne120-Ne1.8), Continuous yarn: 22den-3000den (25dtex-3300dtex)
Weft sensor: anti-double wefts function
Reed motion: Sley driven by 2 sets of conjugated cams
Shedding motion: 8-20 hooks electronic dobby.
Let-Off motion: Electronic type with continuous driven motor
Diameter of weaving beam: 600-1000mm
Back rest: Single backrest, Double backrest
Selvage: 2 ends independent leno selvedge motion.
Warp stop motion: with 6 rows separated electrical droppers.
Take-up motion: electronic take-up synchronized with shedding motion
Machine drive: super SRD motor drives the machine
Pick finding: electro-magnetic automatic pick finding
Control system: controlled by computer with clear LCD and humanity design
Lubrication: with continuos forced oil circulation system
Gear box of electronic jacquard is connected directly to the weft battening shaft, without wearing spare part like belt wheel, which can guarantee the loom run stably.
