Specifications
Metal end caps cylinder & conical filter cartridgeFactory prices
OEM services offered
Product advantages:
1.The most professional manufacturer of filter cartridge apparatus in China.
2.One of the suppliers that passed Andrew certification in China.
3.The quality of our PU material is the same with GE products.
Application fields:
It is mainly used in central air conditioning, gas turbine power plants, oxygen plants, steel mill blast oxygen station, furnace blast air station, power plant etc. air intake filter.
Product descriptions:

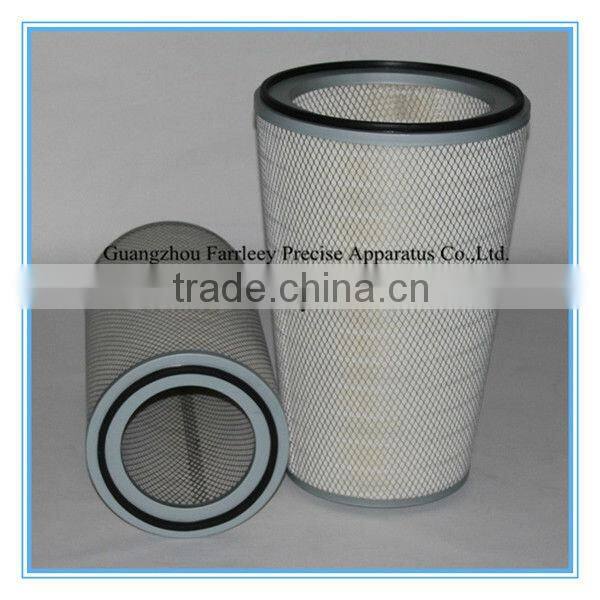

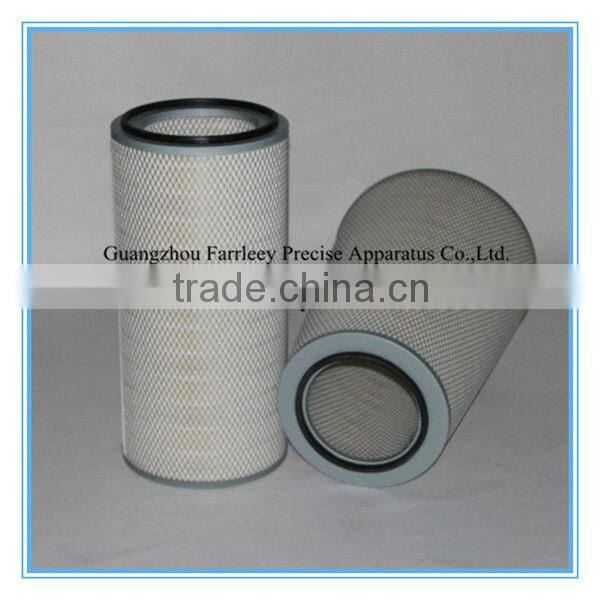

Product show:
Dimensions:
| Model No. | OUTER DIA (mm) | INNER DIA (mm) | The filtration area(m²) | Remarks | ||||||
| YZ66400 | 400 | 290 | 21 | —optional outer mesh —optional stainless steel mesh and end caps | ||||||
| YZ66325 | 325 | 215 | 23 | |||||||
Selection of materials:
1.HL/PE Typial spunbonded polyester
2.HL/LR Water & oil repllent
3.HL/AL Antistatic coating
4.HL/FM PTFE membrane
5.HL/HV Typical Cellulose
6.TE/FM Donaldson Tetratex PTFE membrane polyester
| Code | Weight | Thickness | Filter Precision | Continuous Temperature | Peaks Temperature |
| (g/m²) | (mm) | (µm) | |||
| HL/PE | 170 | 0.45 | 5(μm) | 65 (°C) | 130 (°C) |
| 240 | 0.6 | ||||
| 260 | 0.64 | ||||
| HL/LR | 170 | 0.45 | 5(μm) | 65 (°C) | 130 (°C) |
| 240 | 0.6 | ||||
| 260 | 0.64 | ||||
| HL/AL | 240 | 0.6 | 5(μm) | 65 (°C) | 110 (°C) |
| 260 | 0.64 | ||||
| 240 | 0.6 | ||||
| HL/FM | 170 | 0.45 | 0.3(μm) | 65 (°C) | 130 (°C) |
| 240 | 0.6 | ||||
| 260 | 0.64 | ||||
| HL/HV | 125 | 0.3 | 5(μm) | 65 (°C) | 65 (°C) |
| TE/ FM | 240-340 | 0.33-0.83 | 0.3-5(μm) | 135 (°C) | 135 (°C) |
Photoes show:
Packaging processes:
About us
We are a leading manufacturer of industrial dust collector accessories in China, especially pleated bag
cartridge and flat panel filter. And aslo we choose high quality filter media, such as Donaldson Tetratex
PTFE membrane filte media, Toray spunbonded polyester and HV cellulose nanofiber.
With many years of filter production exprerice, our products are widely used in the dust filtration fields,
such as:
Steel plate pre-processing, Shot blasting, Vacuum pumping sander.
Powder convey, Pneumatic conveying system, Air inlet dust, Gas turbine, Cement industry.
Dust suction, excavation, rock drilling equipment, Battery industry, agglomerative&fibrous dust filtration.
Anti-static situation, Welding smoke, Painting booth, thermal spraying, surface processing, coating,etc.
Also we have capability to offer a complete line of replacement filters to fit most brands of
dust collector equipments.
Our replacement filters provide an economical alternative for many popular dust collection
systems, and they are extremely durable and ensure efficient filtration, available with all common fixing
methods, and they can prolong the service life and performance of your dust collectors, save time
money.
If you are interested in our products, please feel free to talk more with us for more details.
