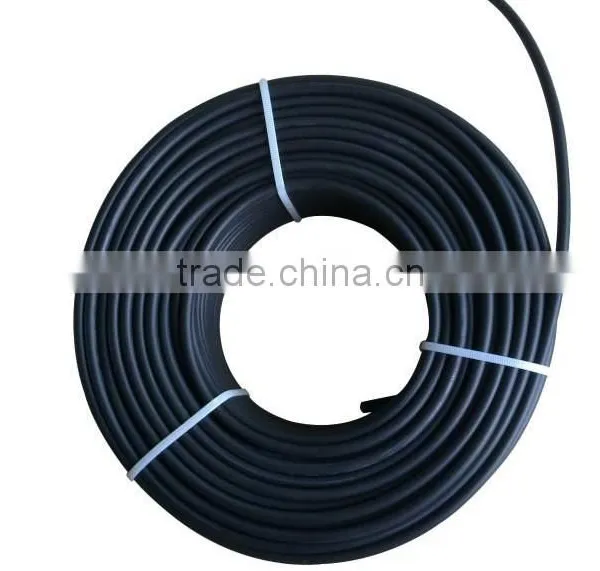

0.6/1KV TUV PV Solar Cable

                                            0.6/1KV TUV PV Solar Cable

Technical Date

Conductor: tinned copper

OD: 2.62mm

Insulator: XLPE

Color: white

OD: 4.05±0.1mm

Jacket: XLPE

Color: Black

OD: 6.1±0.2mm

Cross section of wires: 1.5mm2, 2.5mm2, 4mm2, 6mm2, 10mm2, 16mm2, 25mm2, 35mm2

Application: Widly used in PV power plants, solar energy system, PV inverters, etc...

Characteristics:

A: Dual wall insulation,electron beam cross linked.

B: Excellent resistance to U.V. oil greases, oxyen and ozone.

C: Halogen free, flame retardant, low toxicity.

D: Excellent fiexibility and stripping performance,and excellent resistance to abrasion.
