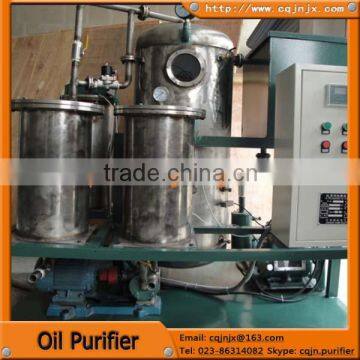

Supply KL fire-resistant oil purifier
Features:
1)The oil purifier is a next-generation vacuum oil filter machine destined for phosphate ester fire-resistant oil system, utilizing dewatering and degassing technologies such as anti-precipitation, aggregation, separation transformation, resolution, vacuum entrapment and flash evaporation, which not only speedily removes the free water in oil but also intensively removes the dissolved water and gas in oil.
2)The stage-to-stage dandified filter element made of new composite materials can remove the large amount of impurities in oil and results in a precision filtration.
3)Application of new absorptive materials can effectively absorb the jelly substance in oil, and eliminate the acid content in oil, as well as inhibiting the production of new acid in the system.
4)The purifier body is made of acid and dissolving resistant stainless steel; filter element and seal are made of materials, which are compatible with fire-resistant oil.
Technical Parameters
Model |
KL-10 |
KL-20 |
KL-30 |
KL-50 |
KL-70 |
|
Rated Flow(L/min)
|
10 |
20 |
30 |
50 |
70 |
Vacuum Range |
-0.05-0.099Mpa |
||||
Temperature Range |
40-65 Degree centigrade |
||||
Oil pump pressure |
0.050.3Mpa |
||||
Power Supply |
50HZ 380V |
||||
Total Power |
20 |
27.5 kw |
35 kw |
49 kw |
65 kw |
Working Noise |
≤80 db(A) |
||||
Gas content in oil |
≤0.1 % mgkoH/g |
||||
Water content in oil |
≤400ppm |
||||
Cleanliness |
≤NAS 6 |
||||
Mechanical impurity |
no |
||||
|
Dimension(mm)
|
600*480*850 |
700*480*900 |
800*480*950 |
900*500*1000 |
950*500*1000 |
Attention: Dimension and weight will be changed with changing the technical specification.
