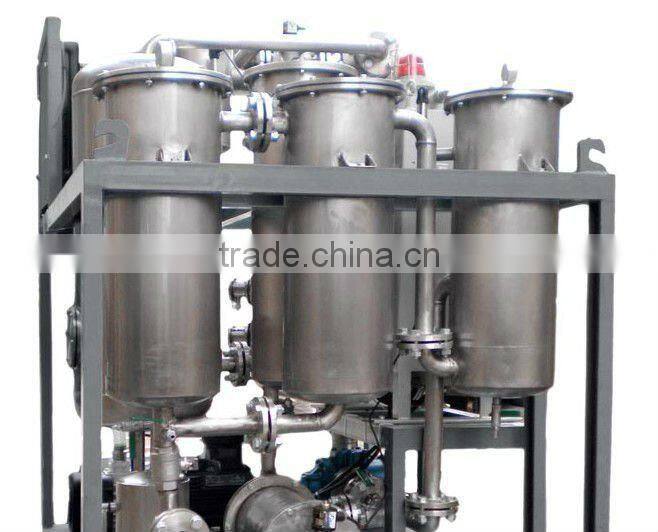

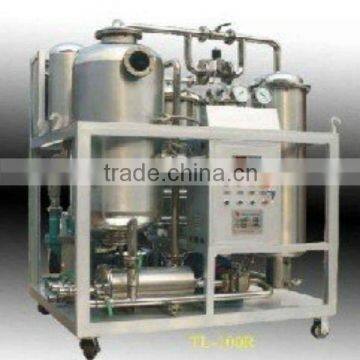

Help CenterKL-50 Junnneg Fire-resistant Oil Purifier Machine
Related Products
-
KL-30 Junnneg Fire-resistant Oil PurificationUS$ 8,000 - 20,000MOQ: 1 Set -
Sell Chongqing KL-20 FIRE-RESISTANT OIL FILTER MACHINE/oil Purifier FactoryUS$ 8,000 - 20,000MOQ: 1 Set
-
China KL Fire-resistant Oil Refinery SystemUS$ 6,000 - 14,000MOQ: 1 Set
-
KL-70 Fire-Resistant Oil Filter Machine Series/vacuum Oil Purifier MachineUS$ 8,500 - 20,000MOQ: 1 Set
-
Chongqing KL FIRE-RESISTANT OIL PURIFIER SERIESUS$ 8,000 - 30,000MOQ: 1 Set
It is widely applied to phosphate ester fire-resistant oil system and mechanical equipment (oil filter machine).
- Useages and characteristics:
Useages: KL series can not only rapidly remove water, gas such as acetylene, hydrogen, and methane, impurities, and other harmful composition in phosphate fire-resistant oil; but also effectively remove oil acid and pigment, so that the indicators of purified oil basically reach a new oil standard.
Characteristics: KL series use pure physical approach for dehydration, degassing, deacidification, decolorization and impurity removal treatment, which does not affect the oil and service performance. At the same time, it sets the precision oil filter, efficient dewatering, degassing, a three-dimensional vacuum evaporation technology and automatic control technology in one. It is simple to operate and runs safely and reliably. It can effectively guarantee the normal operation of oil equipment to avoid the accident.
1) The equipment contact parts with the oil pipelines and the tanks all using stainless steel (2Cr13) materials which is non-miscibility with oil, and all seals parts are the fluorine-containing and non-miscibility material.
2) Designed to take full account of phosphoric acid fuel characteristics of fire resistant oil, low temperature operation, a purely physical purification, will not bring any damage to the oil.
3) Its has strong ability to filter out impurities. The use of composite filter material with a microporous structure, can endure high temperature and corrosion. Mechanizing level is very high and it can be used for a long time. It is also deep-seated to filter out fine particles.
4) Dehydration and degassing. Equipment using a special personalized coalescence separator to break emulsification in the processing, rapidly removes large amounts of water in oil; At the same time, large-displacement vacuum pump will do the vacuum handling to ensure that water vapor and other gases can be removed swiftly;
5) Deacidification and decolourization are obvious. Equipment using the efficient adsorbent for acid removal and decolorization treatment, can effectively remove the pigment and acid in oil.
6) Equipment protection devices are well-established. Through the implementation of protection by the original equipment on temperature, pressure, vacuum, power off, super-pressure, under-voltage, overload protection, can effectively guarantee the normal operation of equipment to prevent the accident.
7) The operation is simple and reliable, to realize the completely unmanned operation.
8) Separator of the vacuum evaporation of high-temperature heat of water vapor and other gases in addition to condensation of water, dried, and enhance the effective output power of devices, greatly extending the service life of vacuum pump.
Technical Parameters
Model |
KL-10 |
KL-20 |
KL-30 |
KL-50 |
KL-70 |
Rated Flow(L/min) |
10 |
20 |
30 |
50 |
70 |
Vacuum Range |
-0.05~-0.099Mpa |
||||
Temperature Range |
40~65°C |
||||
Oil pump pressure |
0.05~0.3Mpa |
||||
Power Supply |
50HZ 380V |
||||
Total Power |
20 kw |
27.5 kw |
35 kw |
49 kw |
65 kw |
Working Noise |
≤80 db(A) |
||||
Gas content in oil |
≤0.1 % mgkoH/g |
||||
Water content in oil |
≤400ppm |
||||
Cleanliness |
≤NAS 6 |
||||
Mechanical impurity |
no |
||||
Dimension(mm) |
600×480×850 |
700×480×900 |
800×480×950 |
900×500×1000 |
950×500×1000 |
