Application:
Sanxing FD3 Linear Actuator ( 12/24VDC motor ) is also the Track Linear Actuator, the Track Linear Actuators don’t extend past their total length, these models are ideal for compact applications and projects. Track Actuators are particularly useful for applications where traditional actuators may be affected by the surrounding environment. You might find track actuators useful in applications such as:
•Furniture and home application
•High-precision appreciation
•Construction machinery
Description:
Sanxing FD3 linear actuators are designed so that no additional space is required other then its total length. Unlike other actuators, the stoke does not extend out of the unit, instead it moves along the track of the unit. This feature allows you to have the same hole-to-hole dimension and fits perfectly in an area where additional space is not an option. Each track linear actuator comes with 2 wires (positive and negative), internal limit switches (non-adjustable) and mounting hole on the motor end. Forces available are 1000N at 30-34mm/s ( no load ) and 5000N at 4-5mm/s ( no load ).
Specifications:
Model |
FD3 |
Input voltage |
12V/24V/110VDC |
Load capacity |
Max 5000N (push) / 3000N (pull) |
Speed |
4~36mm/s |
Stroke ( S ) |
According to customer’s requirement |
Duty cycle |
10% |
Limit switches |
Built-in, Factory Preset |
Operation temperature |
-20°C~ +40°C |
Noise decibel |
≤48Db |
Protection class |
IP20 |
|
Minimum installation distance ( A ) |
155mm |
Product show:

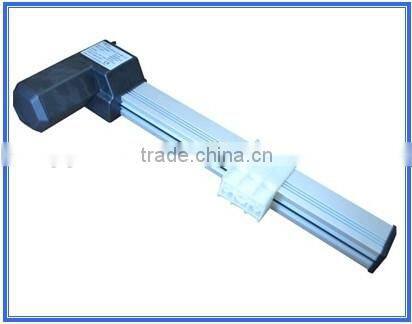

FD3 Linear Actuator
The actuator is the unit, which converts the operating voltage from the control box into a linear movement.
Control Box CB1B ( Change AC to DC ) -------- Control 1 Linear Actuator
The control box is the heart of the system and connects the outlying units ( actuators and handsets ). It is able to convert control signals from the handset into operating voltage for the actuator. Using a control box is the simplest way to set up and implement the actuator into your application, no tools or wiring required.

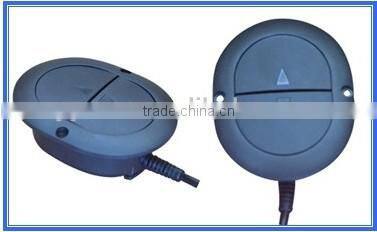

Wired Handset / Control Switch ( HC ) --------Control 1 Linear Actuator
The handset is the unit to be used when you want the SANXING system ( SANXING actuator + SANXING control box + SANXING handset ) to perform a movement. The handset has the up/down position control. It determines whether the control box will make the actuator move in or out.
Drawing:
Working Principles / Connection of SANXING System:
* The screw rod in the actuator push the white slider moving.
* Don't connect the main cable until all actuators and handsets have been connected to the control box.
* Check that all plugs are will connected and firm pushed into the connection plug.
* The actuator can be operated by pushing a button on the handset. Use only one button at a time.
About Us:
Yuyao Sanxing Mechanical & Electrical Technology Co., Ltd. locates in No. 108, Zhenxing West Road, Yuyao, Zhejiang, China. Our company was established in 2008 and a joint venture with Taiwanese. Our factory covers 1,400 meter square. We specialize in the research, development and manufacturing of Linear Actuator, Control Box and Handset. Products are widely used in electric sofas, massage chairs, dental chairs, electric medical beds, traction beds, television movement counters, furniture and other movements need linear motion implementing agencies of the occasion. Dedicated to strict quality control and thoughtful customer service, our experienced staff members are always available to discuss your requirements and ensure full customer satisfaction.
In addition, we have obtained CE and ROHS certificates. Selling well in all cities and provinces around China, our products are also exported to clients in such countries and regions as Spain, France, Turkey, Poland, Canada and USA. We also welcome OEM and ODM orders.
We design the styles according to the customers’ target price, and we have established our quality control system to meet our customers’ request. The products we make are very cost-effective and quality guarantee.
Our purpose is your happiness is our success.
Product Certificates :
Packing & Delivery:
* Normal cartons, have inner packings, generally 4 sets a carton.
* About 3-7 days for the sample; About 20-30 days for the bulk orders.
After Sale:
The warranty period is 1 year after selling the products.
