Description:
The FD3 linear actuator is a HOMELINE actuator specially made for domestic applications. This actuator has a very short installation dimension. The distance between the two fixing points is small when the actuator is retracted and at the same time independent of the stroke length. This feature makes the electric actuator ideal as a lifting actuator for self-lifting wheelchairs. Another special feature here is the flexible back fixture, which can adapt misalignments in a wheelchair application.
Specifications:
Model |
FD3 |
Input voltage |
12V/24V/110VDC |
Load capacity |
Max 5000N (push) / 3000N (pull) |
Speed |
4~36mm/s |
Stroke ( S ) |
According to customer’s requirement |
Duty cycle |
10% |
Limit switches |
Built-in, Factory Preset |
Operation temperature |
-20°C~ +40°C |
Noise decibel |
≤48Db |
Protection class |
IP20 |
|
Minimum installation distance ( A ) |
155mm |

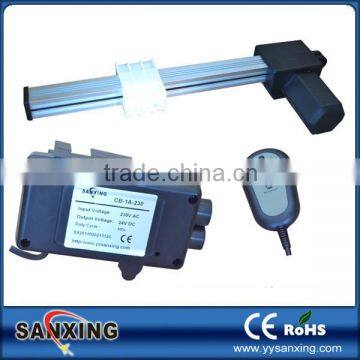

Product show:
FD3 Linear Actuator
The actuator is the unit, which converts the operating voltage from the control box into a linear movement.
Control Box CB1B ( Change AC to DC ) / Transformer--------Control 1 Linear Actuator
The control box is the heart of the system and connects the outlying units ( actuators and handsets ). It is able to convert control signals from the handset into operating voltage for the actuator.

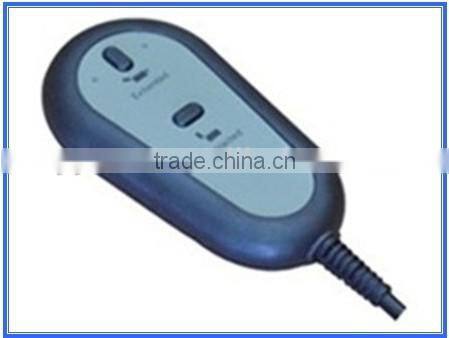

Wired Handset / Control Switch ( HG ) --------Control 1 Linear Actuator
The handset is the unit to be used when you want the SANXING system ( SANXING actuator + SANXING control box + SANXING handset ) to perform a movement. It determines whether the control box will make the actuator move in or out.
Drawing:
Working Principles / Connection of SANXING System:
* The screw rod in the actuator push the white slider moving.
* Don't connect the main cable until all actuators and handsets have been connected to the control box.
* Check that all plugs are will connected and firm pushed into the connection plug.
* The actuator can be operated by pushing a button on the handset. Use only one button at a time.
About Us:
Yuyao Sanxing Mechanical & Electrical Technology Co., Ltd. is a joint-stock enterprise integrating the production, research and development of electromechanical products. Our company mainly specializes in the research, development and manufacturing of electrical putts, controllers, television take-off and landing systems, furniture lifting systems and other products.
Our products are widely used in electric sofas, massage chairs, dental chairs, electric medical beds, traction beds, television movement counters, furniture and others. It's extremely easy to install our products. The products have passed European CE Certification and are in line with RoHS requirements (the EU). Our goods also are widely used in leisure furniture, chemicals, medicals and other fields.
Product Certificates :

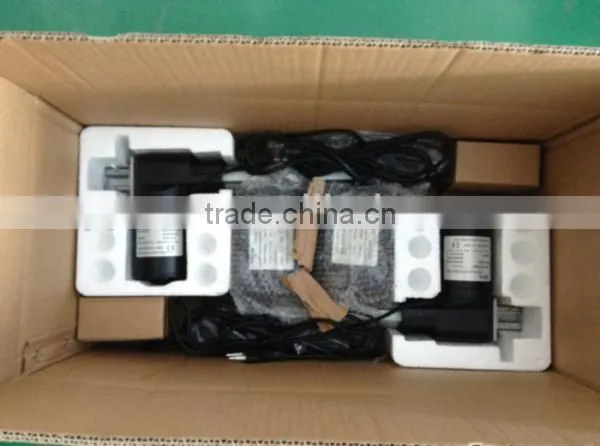

Packing & Delivery:
* Normal cartons, have inner packings, generally 4 sets a carton.
* About 3-7 days for the sample; About 20-30 days for the bulk orders.
After Sale:
The warranty period is 1 year after selling the products.
Contact Info:
Welcome to contact us, we will give you our best service, waiting for you! : )
