Home > Products > Track linear actuator > 12v/24v linear push pull solenoid actuator
12v/24v linear push pull solenoid actuator
- 20000 Unit / Units per Month
- Ningbo Port/Shanghai Port
- T/T L/C D/P D/A Credit Card
Product Details
Place of Origin: | Zhejiang, China | Brand Name: | Sanxing | Model Number: | FD3 |
Product Description
Specifications
linear push pull solenoid actuator1.High quality
2.Competitive price
3.One control
4.Excellent after-sale service

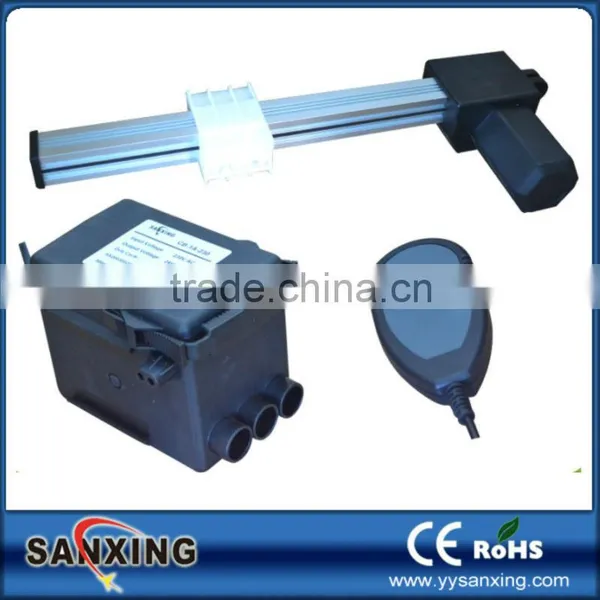

linear push pull solenoid actuator-FD3
The linear actuators are widely used in electric sofas, massage chairs, dental chairs, electric medical beds, traction bed, television movements counters, furniture and other movements.
Specifications
Model | FD3 |
Input voltage | 12V/24V/110V DC |
Load capacity | Max 5000N (push) |
Speed | 4 ~ 36mm/s (no load) |
Stroke | Customized Stroke Available |
Duty cycle | 10% |
Limit switches | Built-in, factory preset |
Operation temperature | -20°C ~ +40°C |
Noise decibel | ≤48 dB |
Protection class | IP20 |
Minimum installation distance | 155mm |
Yuyao Sanxing Mechanical & Electrical Technology Co., Ltd. locates in No. 108, Zhenxing West Road, Yuyao, Zhejiang, China. Our company was established in 2008 and a joint venture with Taiwanese. Our factory covers 1,400 meter square. We specialize in the research, development and manufacturing of Linear Actuator, Control Box and Handset. Products are widely used in electric sofas, massage chairs, dental chairs, electric medical beds, traction beds, television movement counters, furniture and other movements need linear motion implementing agencies of the occasion. Dedicated to strict quality control and thoughtful customer service, our experienced staff members are always available to discuss your requirements and ensure full customer satisfaction.
In addition, we have obtained C E and R O H S certificates. Selling well in all cities and provinces around China, our products are also exported to clients in such countries and regions as Spain, France, Turkey, Poland, Canada and USA. We also welcome O E M and O D M orders.
We design the styles according to the customers’ target price, and we have established our quality control system to meet our customers’ request. The products we make are very cost-effective and quality guarantee.
Our purpose is your happiness is our success.
Dear friend, we are waiting for you.
