Description:
The FD1 & FD3 linear actuators are powerful actuators designed for tv lift, they can be installed on the tv stand frame to help the tv lift up and down. They are HOMELINE actuators and they are widely installed at the end of the bed or the separate tv cabinet, it will be make your life more convenient.
Generally, they are equipped with a plug for connection of an exchangeable cable with a control box / power supply. This allows standard actuators to be combined with different cable lengths. A handset / control swich is also essential.
Specifications:
Model |
FD1 |
FD3 |
Input voltage |
12V/24V/110V DC |
12V/24V/110VDC |
Load capacity |
Max 6000N (push) / 4000N (pull) |
Max 5000N (push) /3000N (pull) |
Speed |
4 ~ 40mm/s (no load) |
4~36mm/s |
Stroke ( S ) |
50mm ~ 800mm (Customized Stroke Available) |
According to customer’s requirement |
Duty cycle |
10% |
10% |
Limit switches |
Built-in, factory preset |
Built-in, Factory Preset |
Operation temperature |
-20°C~ +40°C |
-20°C~ +40°C |
Noise decibel |
≤48 Db |
≤48Db |
Protection class |
IP44 |
IP20 |
|
Minimum installation distance ( A ) |
≥stroke+160mm |
155mm |
Product show:

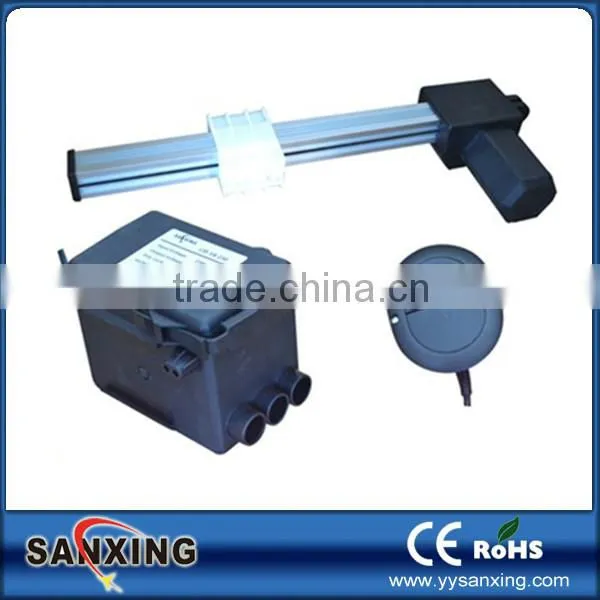

FD1 Linear Actuator
FD1 Linear Actuator + CB1A Control Box + HI Wireless Handset

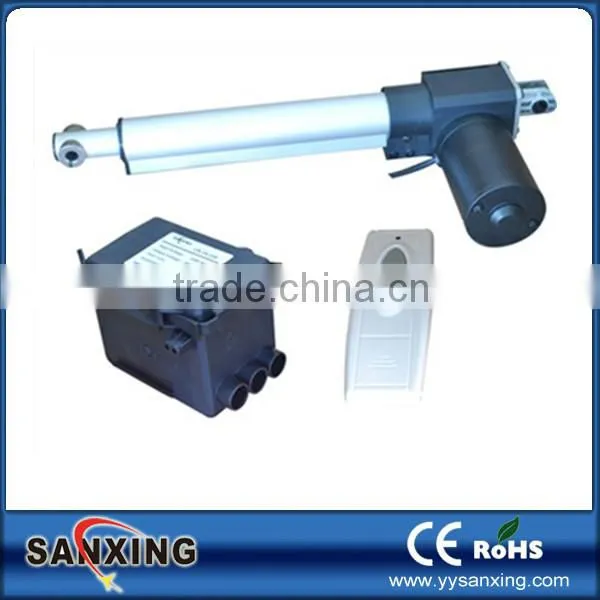

FD3 Linear Actuator
FD3 Linear Actuator + CB1A Control Box + HC Wireless Handset

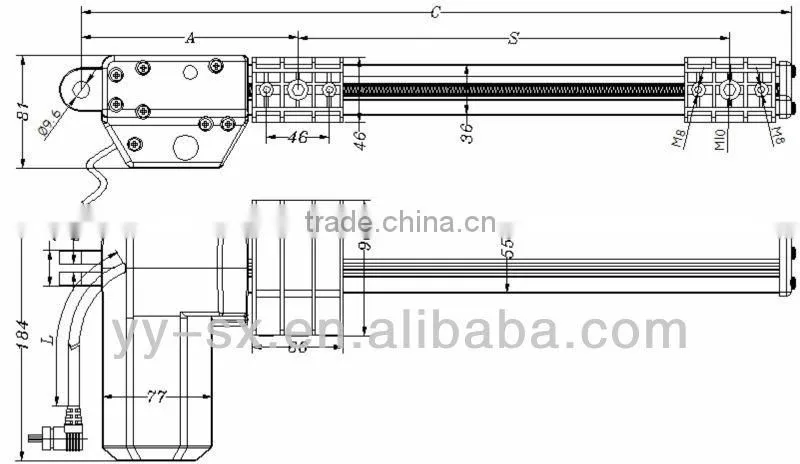

Drawing:
FD1 Linear Actuator
FD3 Linear Actuator
About Us:
Yuyao Sanxing Mechanical & Electrical Technology Co., Ltd. is a joint-stock enterprise integrating the production, research and development of electromechanical products. Our company mainly specializes in the research, development and manufacturing of electrical putts, controllers, television take-off and landing systems, furniture lifting systems and other products.
Our products are widely used in electric sofas, massage chairs, dental chairs, electric medical beds, traction beds, television movement counters, furniture and others. It's extremely easy to install our products. The products have passed European CE Certification and are in line with RoHS requirements (the EU). Our goods also are widely used in leisure furniture, chemicals, medicals and other fields.
Product Certificates :
Packing & Delivery:
* Normal cartons, have inner packings, generally 4 sets a carton.
* About 3-7 days for the sample; About 20-30 days for the bulk orders.
After Sale:
The warranty period is 1 year after selling the products.
