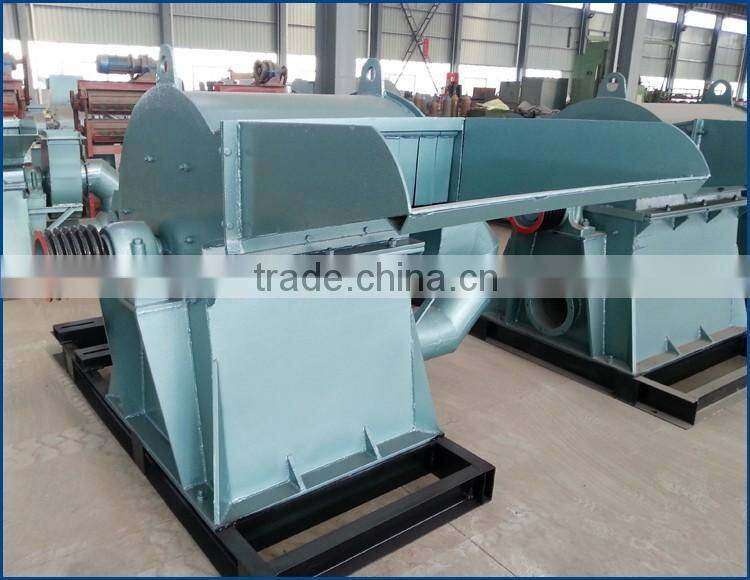

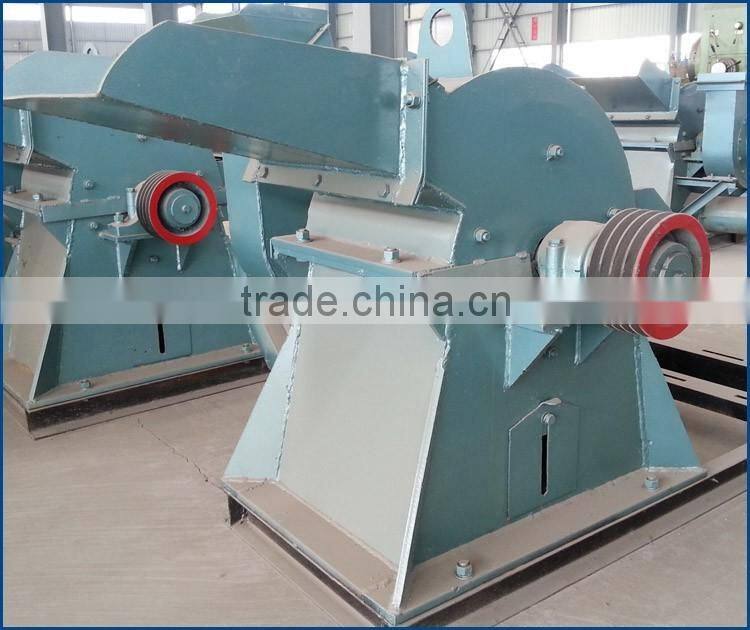

Hot sale hammer mill crusher machine for making sawdust, wood sawdust making machine
Quick details of hammer mill crusher machine
1.Composed structure:chip cutting device,crushing device;
2.Crushing blade quantity:42 pieces;
3.Knife rotating diameter:500/600/800/1000mm;
4.Output capacity:200-3000kg/h;
5.Driven model:diesel engine,motor,tractor;
6.Hammer mill raw materials:branches,miscellaneous wood,fir,pine bark,bamboo,straw,corn stalks,ect.
The Features of hammer mill crusher machine for making sawdust
5. The hammer mill crusher machine is component of the base, the feed inlet, cutter, chassis, chipper blades, crushing hammer, screenmesh etc.
Technical parameters of wood sawdust making machine
Model |
Power (kw) |
Capacity |
number of crushing blade |
number of chipping blade |
length of blade |
Feeding size (mm) |
Rotated speed (r/min) |
Weight (t) |
Dimension |
JL-500 |
15 |
0.2-0.3 |
12 |
3 |
120 |
150*160 |
1400 |
0.3 |
120*70*73 |
JL-600 |
18.5-22 |
0.3-1 |
32 |
3 |
200 |
160*180 |
1400 |
0.8 |
130*98*73 |
JL-800 |
37-45 |
1-2 |
42 |
4 |
240 |
200*220 |
1200 |
1.4 |
200*100*130 |
JL-1000 |
55-75 |
2-3 |
52 |
4 |
340 |
300*320 |
2200 |
2.2 |
230*175*230 |
JL-1200 |
75-90 |
3-4 |
62 |
4-6 |
380 |
350*400 |
3200 |
3.2 |
260*200*240 |

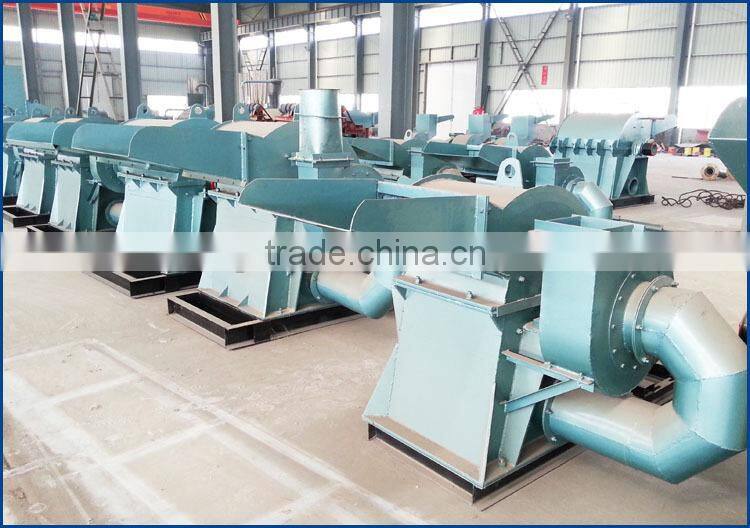

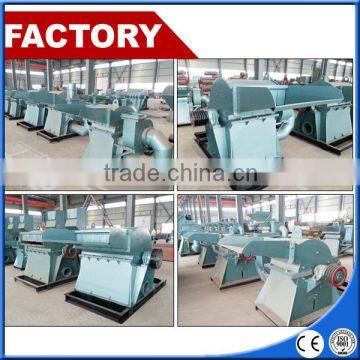

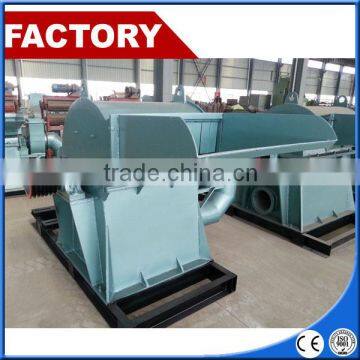

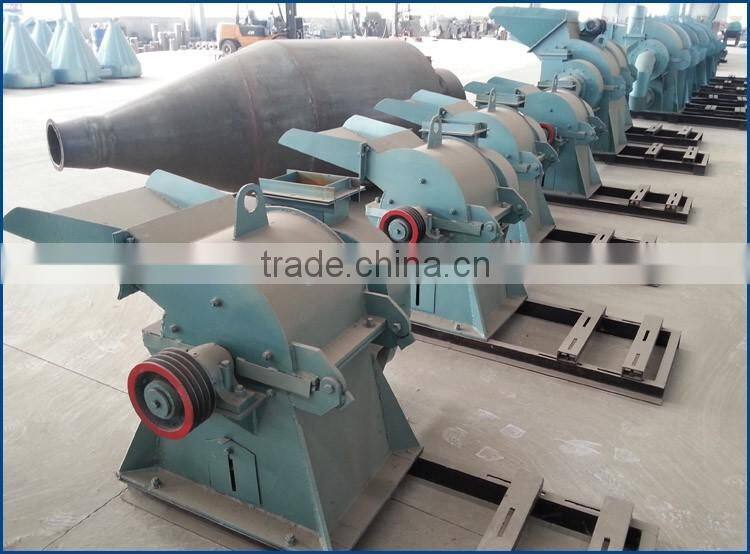

Hammer mill crusher machine in our workshop

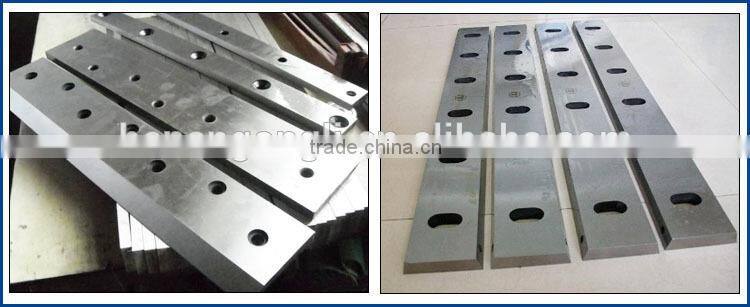

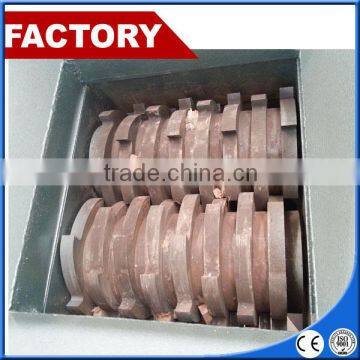

Blades of wood sawdust making machine,hammer mill crusher
1.The blades are made of alloy material;
2. Our blades have durable and wear resisting features.

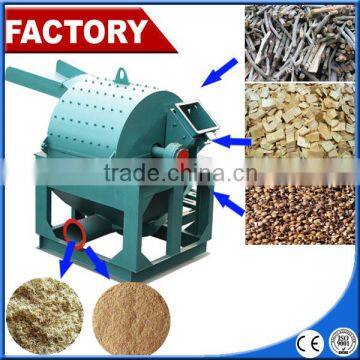

Raw materials of hammer mill crusher machine for making sawdust
♦The raw material could be logs, branches, coconut sheel, bean stem, slab, waste veneer, bamboo, cotton stalk and other non-wood fiber stems, etc.
More equipment we can provide:please click flowing pictures to get more informations

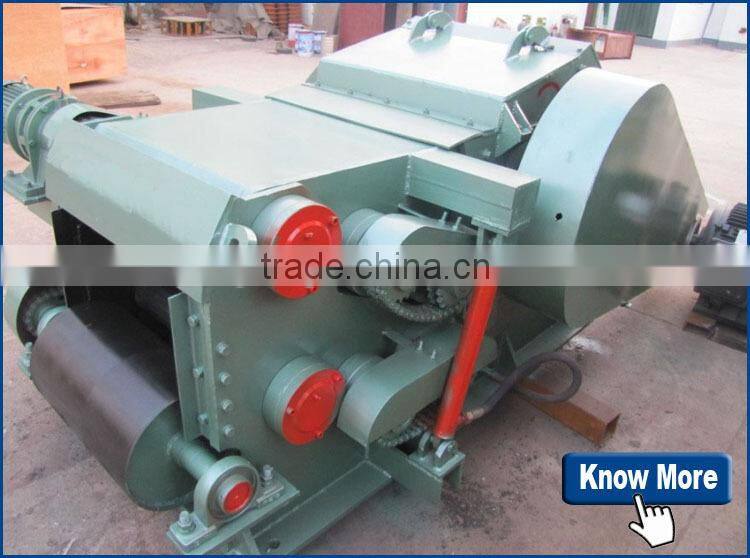

1.Drum wood chipper machine
Our wood chipper machine can be used to crusher 1-30cm wood logs and branches. It consists chipping device, crushing device and blower.The final wood chips size is 10-30mm.

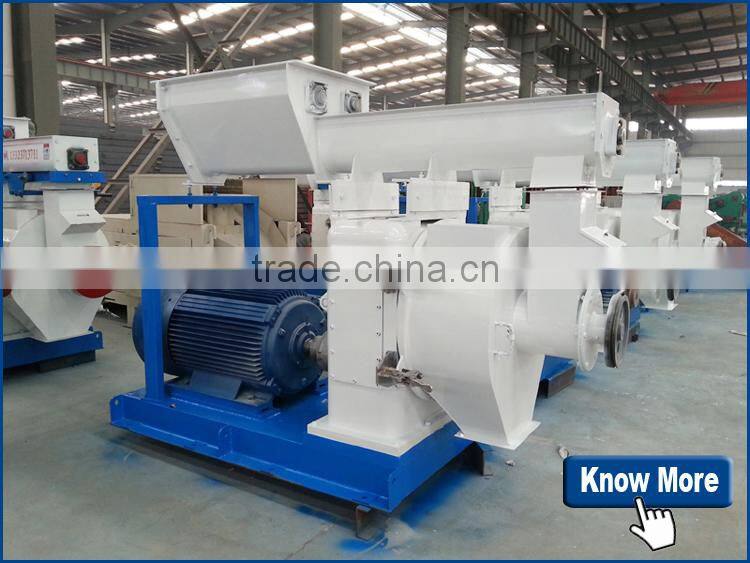

2.Wood pellet making machine
Wood powder go through the feeders into the pellet mill to be pressed into pellet,the final pellets size is 6-10mmm by using different ring die mold.
1) How did you define your wood sawdust making machine model as 500/600/800/1000 etc. ?
The model is defined based on the diameter of the blade.
For example, mould 500 means that the diameter of the blade roller is 500 mm.
2) what is the driving model of the hammer mill crusher machine for sawdust?
The driving model could be electricity and diesel engine. it could be customized according to your local condition.
3) Could the hammer mill crusher machine be movable?
Yes, It could be. but need to customize.
