Forestry Used Small Wood Chipper
♣Introduction of Used Small Wood Chipper
Drum wood chipper series is the special equipment, production of wood products are widely applied in particieboard factory, and the high density fiberboard,stubble, biomass powder plant,wood factory industries and manufacturer of preparation before production units.
♣ Application of Used Small Wood Chipper
This machine is designed with high precision, simple operation, easy to use,can chip all kinds of big logs.
♣Working principle for Used Small Wood Chipper
put the wood into machine by feeding hole and wood is high-speed rotating when contacting with knife roller.the final wood chip is discharged by high speed steam.
♣Equipment structure of Used Small Wood Chipper
This equipment mainly consists of main parts such as: machine body, knife roller,feeding unit, hydraulic system etc.
Data of Used Small Wood Chipper
| Model | BX-215 | BX-216 | BX-218 |
| Feeding size | 160*400mm | 230*500mm | 300*680mm |
| knife | 2 | 2 | 2 |
| Speed of knife roll | 592r/min | 590r/min | 650r/min |
| Max cutting diameter | 160*400mm | 230*500mm | 300*600mm |
| Wood chip size | 30mm | 30mm | 30mm |
| Capacity | 3-5t/h | 8-10t/h | 14-18t/h |
| Motor power | 45kw | 55kw | 100kw |
| Feedingroll power | 2.2-3 | 3-4 | 4-5 |
| Oil pump power | 1.5*1kw | 1.5*1kw | 1.5*1kw |
| Machine weight | 2990kg | 5030kg | 7000kg |
| Machine size | 1470*1550*970mm | 1800*1900*1210mm | 2200-2150*1500mm |
| Conveyor power | 3kw | 3kw | 3kw |

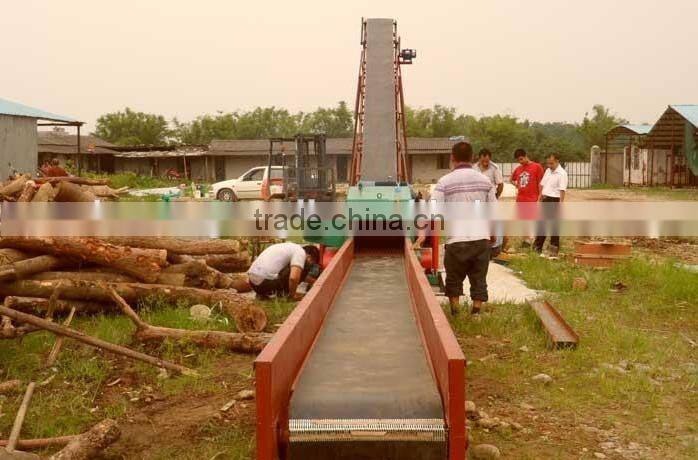

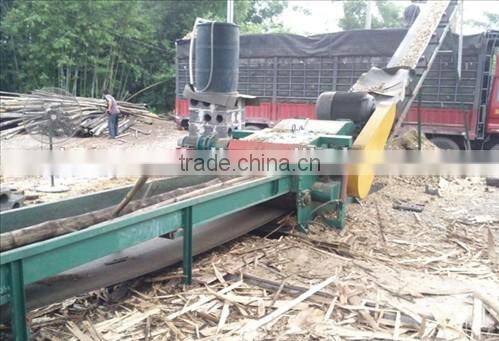

Machine in workshop:
