Heavy duty rubber wood chipper shredder
Introduction of heavy duty 13hp rubber wood chipppe shredder
1.Structure:machine base, knife roller, upper and lower feed roller, conveyor belt, the hydraulic system;
2.Cut Range:Logs, branches, slab, waste veneer, bamboo, cotton stalk and other non-wood fiber stems etc.
3.Hydraulic system:Easy blade change;
4.Features:high quality production,easy to operation and maintenance, low noise and long working life are the leading characteristic,easy to operate and repair
Technical parameters of 13hp rubber wood chipppe shredder
Model | BX-215 | BX-216 | BX-218 |
Feeding size | 160*400mm | 230*500mm | 300*680mm |
knife | 2 | 2 | 2 |
Speed of knife roll | 592r/min | 590r/min | 650r/min |
Max cutting diameter | 160*400mm | 230*500mm | 300*600mm |
Wood chip size | 30mm | 30mm | 30mm |
Capacity | 3-5t/h | 8-10t/h | 14-18t/h |
Motor power | 45kw | 55kw | 100kw |
Feedingroll power | 2.2-3 | 3-4 | 4-5 |
Oil pump power | 1.5*1kw | 1.5*1kw | 1.5*1kw |
Machine weight | 2990kg | 5030kg | 7000kg |
Machine size | 1470*1550*970mm | 1800*1900*1210mm | 2200-2150*1500mm |
Conveyor power | 3kw | 3kw | 3kw |

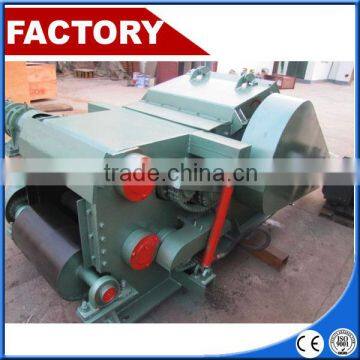

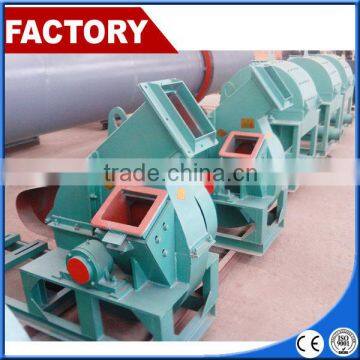

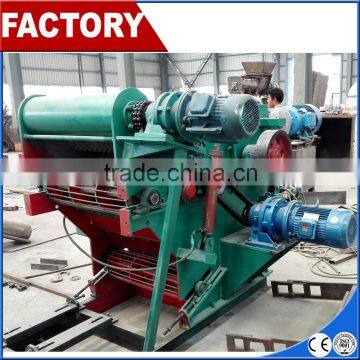

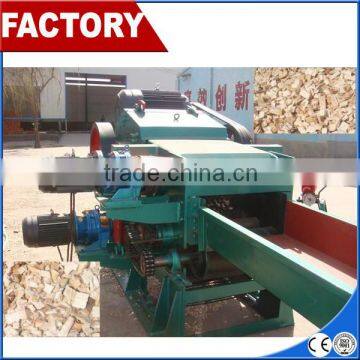

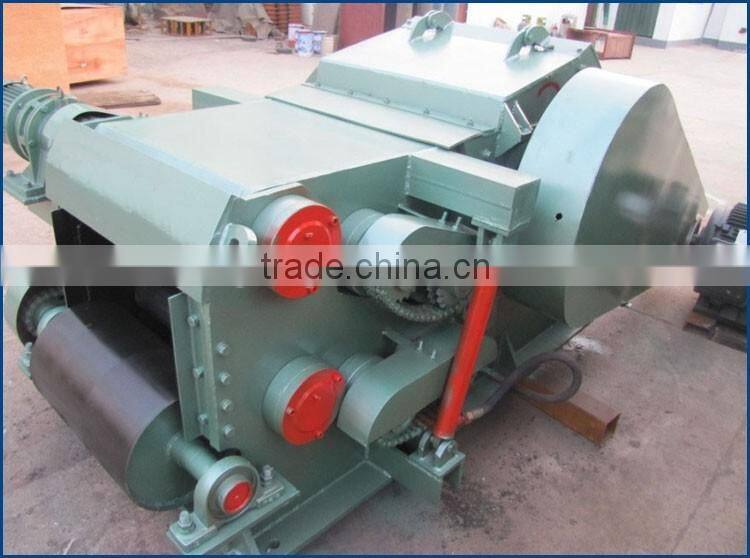

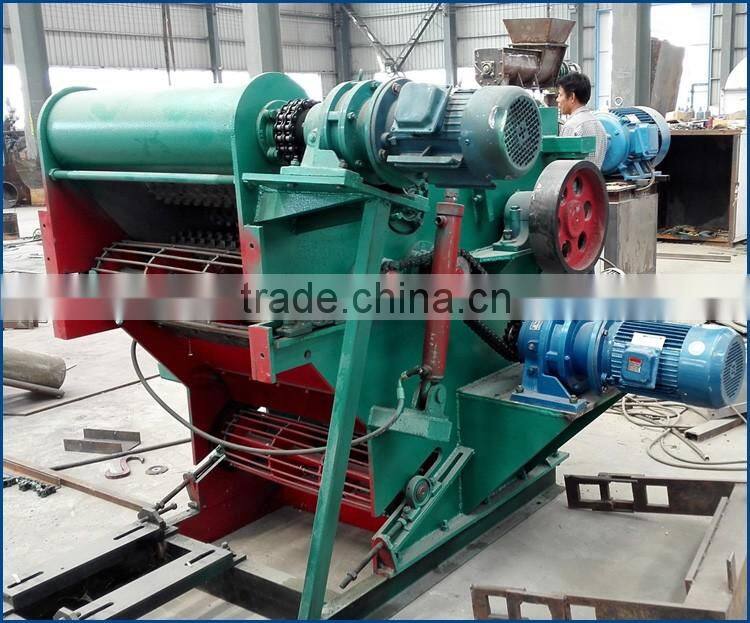

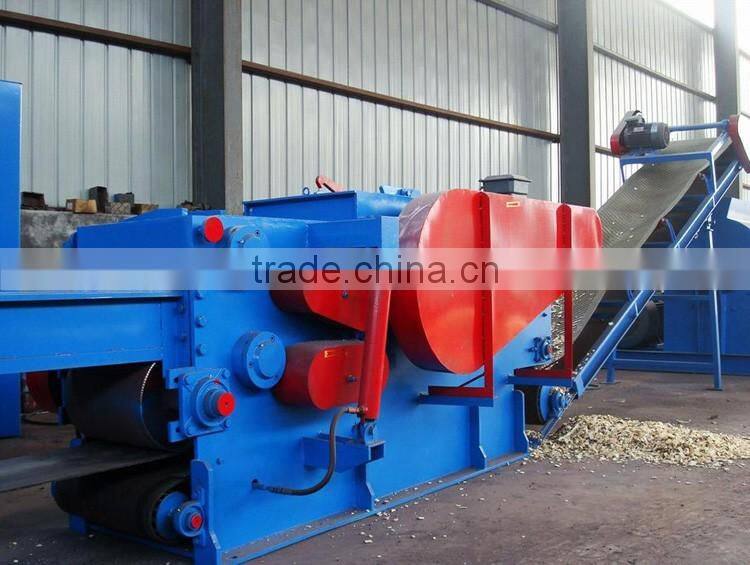

Pictures of rubber wood chipppe shredder
Application of rubber wood chipppe shredder
This machine is designed with high precision, simple operation, easy to use,can chip all kinds of big logs.
Working principle for rubber wood chipppe shredder
1.The machine base is made by high strength plate welding, and it is support base of the whole machine;

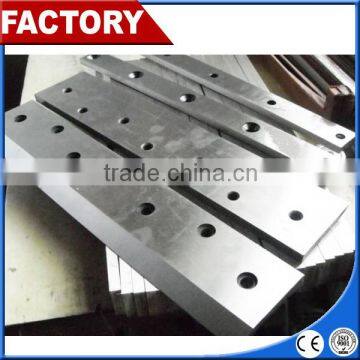

2.There are two flying knives on the knife roller, with specifically manufacturing of flying bolt, through pressure block, fixed on the knife roller;
3.According to different thickness of the raw materials, upper feeding roller can be dipping and heaving in a rangewith the help of the hydraulic system.
Equipment structure of rubber wood chipper shredder
This equipment mainly consists of main parts such as: machine body, knife roller,feeding unit, hydraulic system etc.
Whole line process of rubber wood chipper shredder
