Home > Products > Soluble fiber board > heat resistant insulation cement fiber board
heat resistant insulation cement fiber board
- 5000 Ton / Tons per Month
- QINGDAO
- T/T D/P D/A
Product Details
Application: | Refractory | Thickness: | 25mm | Width: | 600mm |
Length: | 7200mm | Grade: | HP (High Pure) | Chemical Composition: | Si Al |
Working Temperature: | 1100C | Fiber Diameter: | 3.5 | Thermal Conductivity: | 0.153 |
Shrinkage (1800℉, 3h): | <4 | Place of Origin: | Shandong, China | Model Number: | LYKX-1260ZB |
Brand Name: | LUYANG |
Product Description

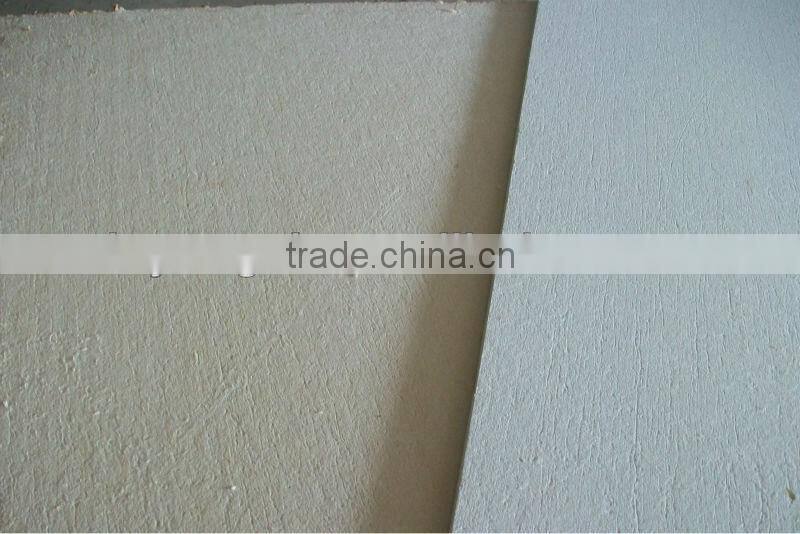

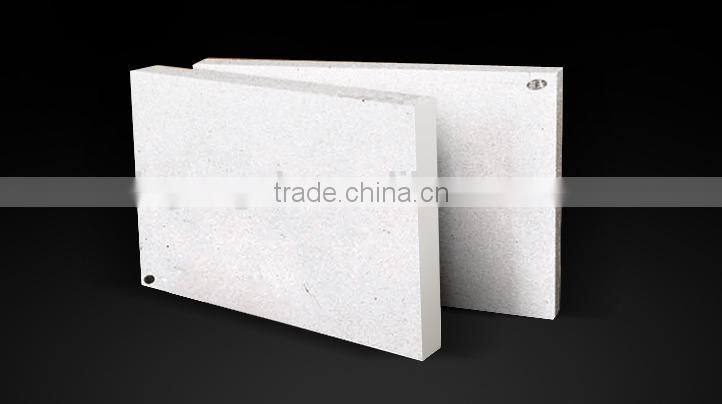

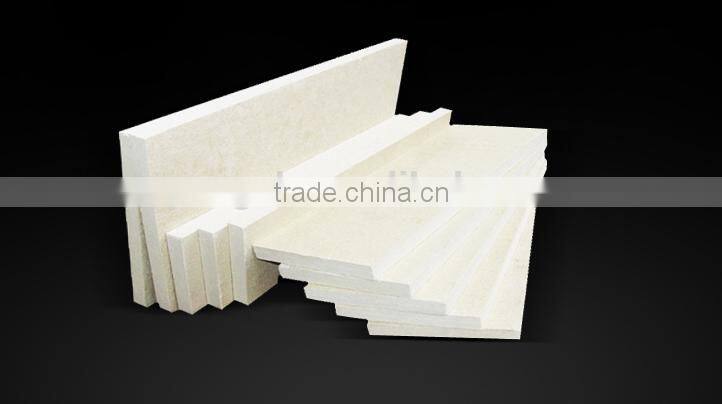

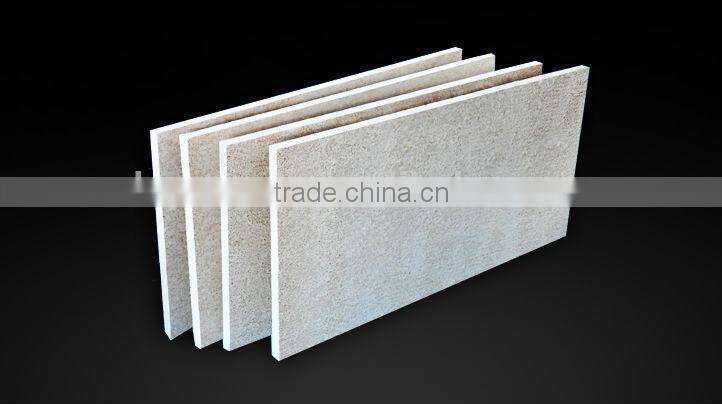

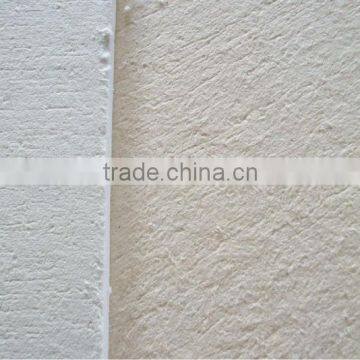

LUYANG soluble fiber board are made from soluble fiber and a small amount of organic binder. Due to the high fiber content, LUYANG soluble fiber board are strong, lightweight and thermal shock resistant. Thickness over 50mm are obtained by bonding resistance two thinner sheets
Features:
Waterproof
Resistant to thermal shock
Low thermal conductivity
Precise geometry and close tolerances
Homogeneous structure,easy for machining
Non-brittle
High fiber content
Lightweight,low heat storage
Easy to install
Typical Applications:
Refractory lining for industrial furnaces in walls,roofs,doors,stacks,etc
Combustion chamber liners,bilers and heaters
Back-up insulation for brick and monolithic refractories
Transfer of molten aluminum and other nonferrous metals
Expansion joint boards
Barrier against flame or heat
Hot face layer for high velocity or abrasive furnace atmosphere
Atmosphere
Technical Index
Product Soluble fiber board |
Code LYKX-1140B LYKX-1260B |
Solubility(mg/l) ≥200 |
Shrinkage on heating(%) 1140°Cx24h≤-4 1260°Cx24h≤-4 |
Moisture ccontent(%) ≤1 |
Organic content(%) ≤6 |
Thermal conductivity/(m.k) ≤0.153 (Mean temperature 500°C) |
Theoretical density(kg/m3) 280±15 |
Compressive Strength(Mpa) ≥0.1 |
Specification(mm) 900x600x25/50 |
