1260 HP Ceramic Fiber Board (largest Supplier in China)
US$ 2,000 - 2,167
MOQ: 1 Ton
Key Specifications
Get Latest Price
Application:
Refractory
Thickness:
10-50mm
Width:
600mm
Payment & Shipping
Payment Methods:
Port of Shipment:
QINGDAO
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Ceramic Fiber Board (largest Supplier in China)US$ 1,667 - 3,500MOQ: 1 Ton -
1260 Ceramic Fiber Board (Shandong Luyang Share Co.,ltd)US$ 1,667 - 3,500MOQ: 1 Ton
-
Ceramic Fiber Board (largest Manufacturer in China)US$ 1,583 - 2,167MOQ: 1 Ton
-
Ceramic Fiber Board (largest Manufacturer in China)US$ 1,590 - 2,170MOQ: 1 Ton
-
Ceramic Fiber Board (largest Supplier in China)US$ 1,667 - 2,167MOQ: 1 Ton
Application
Refractory
Thickness
10-50mm
Width
600mm
Length
900/1000mm
Chemical Composition
aluminia,silica
Working Temperature
1100
Fiber Diameter
3.5
Thermal Conductivity
0.101-0.202
Place of Origin
Shandong, China
Model Number
LYTX-1260ZB
Brand Name
LUYANGWOOL

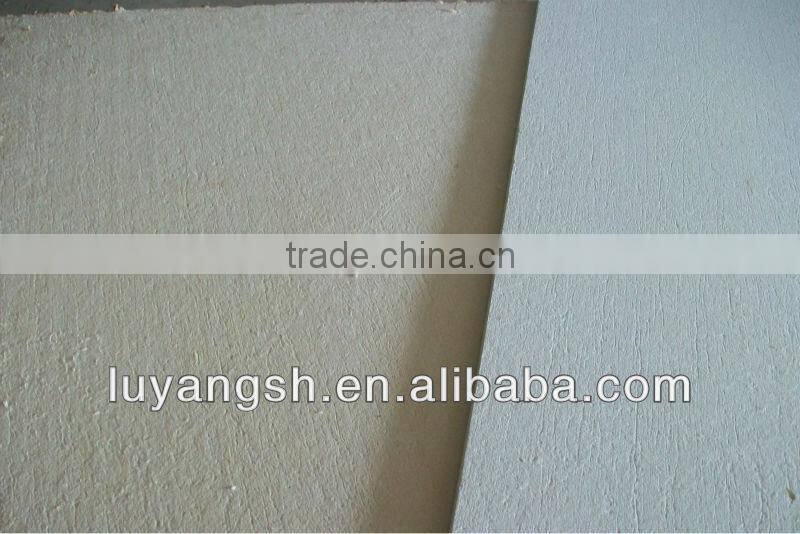

- LUYANGWOOL® ceramic fiber board is a lightweight refractory material processed with alumina-silica fibres for applications at temperatures up to 1600C. LUYANGWOOL ceramic fiber board is a vacuum formed products that resists higher gas velocities than ceramic fiber blanket. It is ideal for furnace,boiler duct and stacking lining dut to its low thermal conductivity and low heat storage allowing shorter cycle times and quicker access for maintenance.
Application
- Refractory lining for industrial furnace in wall, roofs, stacks and doors,etc.
- Combustion chamber liners,boilers and heaters.
- Back-up insulation for brick,and monolithic refractories.
- Transfer of molten aluminium,and other non-ferrousE metals.
- Expansion joint boards
- Barrier against flame or heat
- Hot face layer for high velocity or abrasive furnace atmosphere.
Technical Data Sheet
- Shringkage on heating (%) 1000CX24h ≤-3
- Thermal Conductivity (w/m.k)(128kg/m3) ≤0.153 (mean temperature:500C)
- Dampish rate (%) ≤ 1
- Organic content (%) ≤ 5
Standard Specification
- Width: 1000/600mm
- Thickness: 10-50mm
- Density: 280-300 kg/m3
Custom-tailored production is also available. For more information,please contact us !
