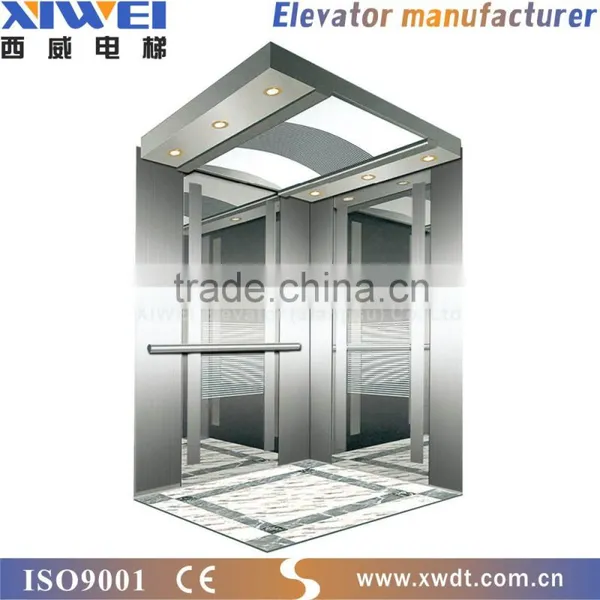

XIWEI Small VVVF Drive Type Villa Elevator

FOB Price

USD $8,500 - $35,000 / Set

1 Set(Min.Order)

Supply Ability 300 Set / Sets per Month
Port Lianyungang/Shanghai Port
Payment Terms:T/T

Request Sample Customized Request Download Product Catalog

Contact Now

Get lowest price Inquiry Basket

Product Details

Place of Origin:	Jiangsu, China	Brand Name:	XIWEI Brand	Model Number:	GRK
Usage:	Residential Elevators	Drive Type:	AC	Elevator Type:	Passenger Elevators

Product Description

villa elevator Glass Home Elevator Villa elevator home elevator Small Villa Elevator villa elevator Villa Elevator

Passenger elevator cheaper elevator Passenger lift passenger elevator small lift Elevator Lift Elevator residential elevator price Price For Passenger Elevator Passenger Elevator Passenger Elevator

Product Description

XIWEI Small VVVF Drive Type Villa Elevator

XIWEI Elevator (Jiangsu) CO., Ltd, we are a professional manufacturer of elevators, escalators, and movig walk. We have professional team, excellent engineers, our elevators are high quality. We are looking for good agencies all over the world, we promise that we can give you our best price, we would like to make a long-term business relationship with you. We are look forward to hearing from you soon.

SMALL MACHINE ROOM ELEVATOR

Construction sketch

Small machine room elevator parameter list

Model	Reated capacity		Reated speed	Car size (mm)		Net door size (mm)		Net hoistway size (mm)				Machine room (mm)
	Kg	Persons	m/s	Width	Depth	Width	Depth	Width	Depth	Pit Depth	Overhead	Width	Depth	Height
GRK	450	6	1.0	1200	1100	700	2100	1900	1800	1500	4200	1900	1800	2500
			1.5							1600	4400
			1.75							1700	4400
			2.0							1800	4600
			2.5							2000	5000
	630	8	1.0	1300	1200	800	2100	2000	1900	1500	4200	2000	1900	2500
			1.5							1600	4400
			1.75							1700	4400
			2.0							1800	4600
			2.5							2000	5000
	800	10	1.0	1400	1350	800	2100	2000	2000	1500	4200	2000	2000	2500
			1.5							1600	4400
			1.75							1700	4400
			2.0							1800	4600
			2.5							2000	5000
	1000	13	1.0	1600	1400	900	2100	2200	2100	1500	4200	2200	2100	2500
			1.5							1600	4400
			1.75							1700	4400
			2.0							1800	4600
			2.5							2000	5000
	1150	15	1.0	1700	1500	900	2100	2300	2200	1500	4200	2300	2200	2500
			1.5							1600	4400
			1.75							1700	4400
			2.0							1800	4600
			2.5							2000	5000
	1250	17	1.0	1800	1500	1000	2100	2400	2200	1500	4200	2400	2200	2500
			1.5							1600	4400
			1.75							1700	4400
			2.0							1800	4600
			2.5							2000	5000
	1350	18	1.0	1900	1600	1000	2100	2500	2300	1500	4200	2500	2300	2500
			1.5							1600	4400
			1.75							1700	4400
			2.0							1800	4600
			2.5							2000	5000
	1600	21	1.0	2000	1700	1100	2100	2600	2400	1500	4200	2600	2400	2500
			1.5							1600	4400
			1.75							1700	4400
			2.0							1800	4600
			2.5							2000	5000

MACHINE ROOMLESS ELEVATOR

Construction sketch

Machine roomless elevator parameter list

Model	Reated capacity		Reated speed	Car size (mm)		Net door size (mm)		Net hoistway size (mm)
	Kg	Persons	m/s	Width	Depth	Width	Depth	Width	Depth	Pit Depth	Overhead
GRKW	450	6	1.0	1100	1200	700	2100	2000	1750	1600	4000
			1.5							1700	4200
			1.75							1800	4400
			2.0							1900	4800
			2.5							2000	4800
	630	8	1.0	1300	1200	800	2100	2150	1700	1600	4000
			1.5							1700	4200
			1.75							1800	4400
			2.0							1900	4800
			2.5							2000	4800
	800	10	1.0	1400	1350	800	2100	2300	1800	1600	4000
			1.5							1700	4200
			1.75							1800	4400
			2.0							1900	4800
			2.5							2000	4800
	1000	13	1.0	1600	1400	900	2100	2450	1900	1600	4000
			1.5							1700	4200
			1.75							1800	4400
			2.0							1900	4800
			2.5							2000	4800
	1150	15	1.0	1700	1500	900	2100	2550	1900	1600	4000
			1.5							1700	4200
			1.75							1800	4400
			2.0							1900	4800
			2.5							2000	4800
	1250	17	1.0	1800	1500	1000	2100	2700	2000	1700	4000
			1.5							1800	4200
			1.75							1900	4400
			2.0							2000	4800
			2.5							2000	4800
	1350	18	1.0	1900	1600	1100	2100	2800	2100	1700	4000
			1.5							1800	4200
			1.75							1900	4400
			2.0							2000	5000
			2.5							2000	5000
	1600	21	1.0	2000	1700	1100	2100	2900	2200	1700	4100
			1.5							1800	4300
			1.75							1900	4500
			2.0							2000	5000
			2.5							2000	5000

Packaging & Shipping

Packing size: 12-20 packages for each elevator, depends on different parameters.

1 passenger elevator fit in 1*20ft container;

2 passenger elevators fit in 1*40ft container;

Packing material: Plywood case, bundle, Fumigation-free wooden.

For example:630kg passenger elevator-- packing list

PART NAME	QUANTITY OF PACKAGE (CTN)	C/NO.	L × W × H (mm)			T/CBM (M3)	N.W.(KG)	T.N.W.(KG)	G.W.(KG)	T.G.W.(KG)
Hoistway safety part	1	1/1	1400	890	610	0.76	674	674	708	708
Car bottom & Car top	1	1/1	1720	1220	610	1.28	480	480	538	538
Car wall	1	1/1	2440	610	610	0.91	220	220	264	264
Bearing beam & Straight beam & Counterweight bracket	1	1/1	3400	400	400	0.54	312	312	362	362
Control cabinet	1	1/1	2440	610	610	0.91	174	174	218	218
Traction machine	1	1/1	810	490	880	0.35	275	275	310	310
Steel wire rope	1	1/1	600	600	450	0.16	93	93	110	110
Door machine	1	1/1	1770	260	770	0.35	43	43	69	69
Guide rail	1	1/1	5050	470	350	0.83	623	623	682	682
Landing door device	1	1/1	1910	480	670	0.61	210	210	277	277
Landing door	1	1/1	2200	530	610	0.71	232	232	268	268
Counterweight block	1	1/1	1150	900	510	0.53	1225	1225	1255	1255
Total:	12					7.94		4561.0		5061.0

Our Services

Help Customers Source in China to reduce their cost

To provide customers with whole purchasing plan of elevator parts;
To find out the best conjunction point between quality and price in order to reduce costs for them.

How to develop the suppliers for customers

To get customers' need through communicating.
To find out three to four manufactures of the corresponding parts according to the request of the customers.Ask price
and get samples from the manufactures.
To visit the factory (acknowledge the production ability and quality control process).
Basing on the price, sample and visiting, recommend manufacturers to our customers.

How to help customers order from the qualified suppliers

Follow the process of the order.
Send QC to inspect on site before shipping to acknowledge the product quality.
Transfer the response from the customers to the suppliers on time, and follow up the improvement.

Special package services

Gather Sourced Parts for Dispatch (Less than one container Shpt. Service)
Help customers shipping products directly to the working site oversea:
Quick Response
