Round Panoramic Elevator With Round Cabin

Name: Round Panoramic Elevator With Round Cabin
Brand: XIWEI
Availability: InStock

FOB Price

US$ 10,000 - 30,000 / Set

1 Set(Min. Order)

Port Lianyungang/Shanghai Port
Payment TermsT/T

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Place of Origin	Jiangsu, China	Brand Name	XIWEI
Model Number	GRG	Usage	Other, Panoramic Elevator
Drive Type	AC	Elevator Type	Passenger Elevators

Product Description

Sightseeing Elevator panoramic elevator Elevator outdoor elevator Capsule lift Sightseeing Passage Elevator panoramic glass elevator Capsule elevator

Product Description

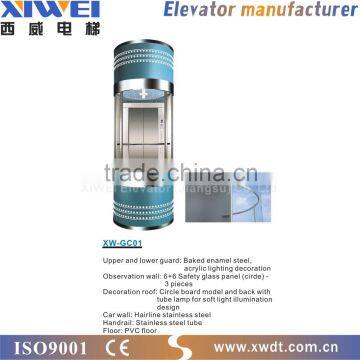

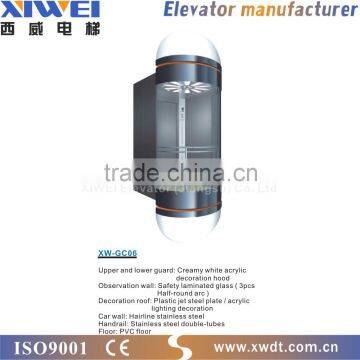

Round panoramic elevator with round cabin

XIWEI Elevator (Jiangsu) CO., Ltd, we are a professional manufacturer of elevators, escalators, and movig walk. We have professional team, excellent engineers, our elevators are high quality. We are looking for good agencies all over the world, we promise that we can give you our best price, we would like to make a long-term business relationship with you. We are look forward to hearing from you soon.

PANORAMIC ELEVATOR

Construction sketch

Machine room Panoramic elevator parameter list

Model	Reated capacity		Reated speed	Car size (mm)		Net door size (mm)		Net hoistway size (mm)				Machine room (mm)
	Kg	Persons	m/s	Width	Depth	Width	Depth	Width	Depth	Pit Depth	Overhead	Width	Depth	Height
GRG	630	8	1.0	1200	1500	800	2100	2300	2100	1800	4500	2300	2100	2500
			1.5							1900	4700
			1.75							1900	4700
			2.0							2100	4800
			2.5							2100	5200
	800	10	1.0	1250	1600	800	2100	2400	2050	1800	4500	2400	2050	2500
			1.5							1900	4700
			1.75							1900	4700
			2.0							2100	4800
			2.5							2100	5200
	1000	13	1.0	1500	1750	900	2100	2600	2300	1800	4500	2600	2300	2500
			1.5							1900	4700
			1.75							1900	4700
			2.0							2100	4800
			2.5							2100	5200
	1150	15	1.0	1500	1850	900	2100	2600	2400	1800	4500	2600	2500	2500
			1.5							1900	4700
			1.75							1900	4700
			2.0							2100	4800
			2.5							2100	5200
	1250	17	1.0	1600	1900	1000	2100	2700	2500	1800	4500	2700	2500	2500
			1.5							1900	4700
			1.75							1900	4700
			2.0							2100	4800
			2.5							2100	5200
	1350	18	1.0	1600	2050	1000	2100	2700	2650	1800	4500	2700	2650	2500
			1.5							1900	4700
			1.75							1900	4700
			2.0							2100	4800
			2.5							2100	5200
	1600	21	1.0	1600	2200	1100	2100	2700	2800	1800	4500	2700	2800	2500
			1.5							1900	4700
			1.75							1900	4700
			2.0							2100	4800
			2.5							2100	5200

MACHINE ROOMLESS PANORAMIC ELEVATOR

Construction sketch

Machine roomless Panoramic elevator parameter list

Model	Reated capacity		Reated speed	Car size (mm)		Net door size (mm)		Net hoistway size (mm)
	Kg	Persons	m/s	Width	Depth	Width	Depth	Width	Depth	Pit Depth	Overhead
GRG	630	8	1.0	1200	1500	800	2100	2300	2100	1800	4400
			1.5							1900	4600
			1.75							1900	4600
			2.0							2100	4700
			2.5							2100	5000
	800	10	1.0	1250	1600	800	2100	2400	2050	1800	4400
			1.5							1900	4600
			1.75							1900	4600
			2.0							2100	4700
			2.5							2100	5000
	1000	13	1.0	1500	1750	900	2100	2600	2300	1800	4400
			1.5							1900	4600
			1.75							1900	4600
			2.0							2100	4700
			2.5							2100	5000
	1150	15	1.0	1500	1850	900	2100	2600	2400	1800	4400
			1.5							1900	4600
			1.75							1900	4600
			2.0							2100	4700
			2.5							2100	5000
	1250	17	1.0	1600	1900	1000	2100	2700	2500	1800	4400
			1.5							1900	4600
			1.75							1900	4600
			2.0							2100	4700
			2.5							2100	5000
	1350	18	1.0	1600	2050	1000	2100	2700	2650	1800	4400
			1.5							1900	4600
			1.75							1900	4600
			2.0							2100	4700
			2.5							2100	5000
	1600	21	1.0	1600	2200	1100	2100	2700	2800	1800	4400
			1.5							1900	4600
			1.75							1900	4600
			2.0							2100	4700
			2.5							2100	5000

Packaging & Shipping

Packing size: 12-20 packages for each elevator, depends on different parameters.

1 passenger elevator fit in 1*20ft container;

2 passenger elevators fit in 1*40ft container;

Packing material: Plywood case, bundle, Fumigation-free wooden.

For example:630kg passenger elevator-- packing list

PART NAME	QUANTITY OF PACKAGE (CTN)	C/NO.	L × W × H (mm)			T/CBM (M3)	N.W.(KG)	T.N.W.(KG)	G.W.(KG)	T.G.W.(KG)
Hoistway safety part	1	1/1	1400	890	610	0.76	674	674	708	708
Car bottom & Car top	1	1/1	1720	1220	610	1.28	480	480	538	538
Car wall	1	1/1	2440	610	610	0.91	220	220	264	264
Bearing beam & Straight beam & Counterweight bracket	1	1/1	3400	400	400	0.54	312	312	362	362
Control cabinet	1	1/1	2440	610	610	0.91	174	174	218	218
Traction machine	1	1/1	810	490	880	0.35	275	275	310	310
Steel wire rope	1	1/1	600	600	450	0.16	93	93	110	110
Door machine	1	1/1	1770	260	770	0.35	43	43	69	69
Guide rail	1	1/1	5050	470	350	0.83	623	623	682	682
Landing door device	1	1/1	1910	480	670	0.61	210	210	277	277
Landing door	1	1/1	2200	530	610	0.71	232	232	268	268
Counterweight block	1	1/1	1150	900	510	0.53	1225	1225	1255	1255
Total:	12					7.94		4561.0		5061.0

Our Services

Help Customers Source in China to reduce their cost

To provide customers with whole purchasing plan of elevator parts;
To find out the best conjunction point between quality and price in order to reduce costs for them.

How to develop the suppliers for customers

To get customers' need through communicating.
To find out three to four manufactures of the corresponding parts according to the request of the customers.Ask price
and get samples from the manufactures.
To visit the factory (acknowledge the production ability and quality control process).
Basing on the price, sample and visiting, recommend manufacturers to our customers.

How to help customers order from the qualified suppliers

Follow the process of the order.
Send QC to inspect on site before shipping to acknowledge the product quality.
Transfer the response from the customers to the suppliers on time, and follow up the improvement.

Special package services

Gather Sourced Parts for Dispatch (Less than one container Shpt. Service)
Help customers shipping products directly to the working site oversea:
Quick Response
