Help CenterHot Selling Superdurable And Waterproof Security Products Guard Tour Device
Related Products
-
IP65 Design Tracking System RFID Watchman Clock With AlarmsUS$ 110 - 165MOQ: 1 Piece -
Smart Guard Tour Monitoring ProductUS$ 4 - 180MOQ: 1 Piece
-
Light Touch Ibutton Reader for Security PatrolUS$ 4 - 180MOQ: 1 Piece
-
Best Price Touch New Guard Tour Monitor/Monitoring SystemUS$ 4 - 180MOQ: 1 Piece
-
V51 Security Tracking Products Touch Guard Tour DeviceUS$ 125 - 175MOQ: 1 Unit
Specifications
Guard Tour DeviceMulti-language version software
Waterproof ,Shockproof
14 group Alarms
Work well from 15m height
|
Applications
It is the ideal solution for companies wishing to track employees whose work duties require moving from place to place, such as security guard patrolling, policeman patrolling, remote equipment inspection, etc. |
How it works?
1.Touch the checkpoints:There is unique ID No. in each checkpoints ,Fix the checkpoint in which place you want patrol .
Then the guard use the reader touch the checkpoint ,then will record the place,time,and date or the event .
2.Download the patrol records Through Downloader or USB cable or IP Downloader(GPRS,WIFI).
3.Through our OGP Software ,you can Check the reports anywhere you want Through the server.

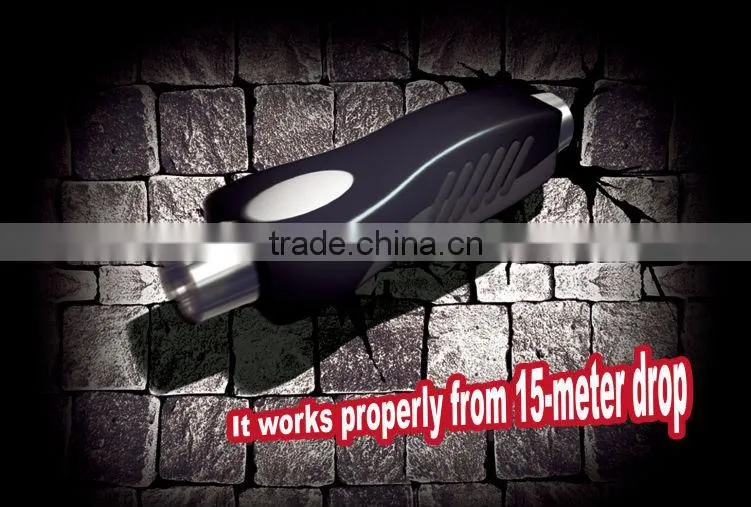

- Super Durable – It works properly from 15m about 49.22 ft drop
- – stainless steel body
- Completely waterproof
- Operating range: - 40 to + 70°C
- Touch the checkpoints,it will record the checkpoint ID,date,time and location.
- Ultralow-Power Consumption
– 3.6V/3.0V CR123ABattery
– One cell of battery supports 200,000 continuous readings
- Users are free to replace the battery
- Guard tour software supports 32/64-bit Windows XP, Vista, 2000 or Windows 7 OS
- Guard tour software to download and generate reports, which can be printed or
exported to MS Word/Excel, PDF, JPG, and other popular formats - Unlimited number of sites, checkpoints, patrolmen, events and plans
Alarm
V5 Guard Tour Device have 14 groups alarms.
Battery
V5 Guard Tour Device uses 3.0V CR123A or 3.6V ER17335 replaced battery. One cell of battery supports 200,000
continuous readings for 1-2 years After battery replacement the former data is still stored well.
Techinical data
| Coat | Stainless Steel Body with rubber shell |
| Waterproof | Completely Waterproof |
| Battery used | CR123A/3.6V ER17335 |
| Battery life | One cell of CR123A battery can supports 200,000 continuous readings |
| Reading type | Button(VS1990A) |
| Indicate | Shake and LED |
| Memory storage | 4000(standard)/8000/16,000/260,000 |
| Size | 145*37*33(mm) |
| Operating range | -40 tp +85 |
Internal structure
VT5-S Portable Downloader
- V5 Guard Tour Device data can be downloaded right on the spot
- Easily collected guard scanner’s data, easy transferred data to a computer
- Memory storage: 130,000 /260,000
- 3.7V rechargeable Lithium battery
- USB charge or optional car chargers
- Operating range: - 10°C to + 55°C
- Guard tour software supports 32/64-bit Windows XP, Vista, 2000 or Windows 7 OS
This model also can use IP downloader,Transmit data through RJ45 Network Cable,WIFI and GPRS.
One Set includes
- 1 V5 iButton Guard system
- 1 VT5 Downloader
- 10 iButton Tags & Holders
- 5 Patrolman Buttons
- Guard Tour Software V8.0x
- USB Transfer Cable

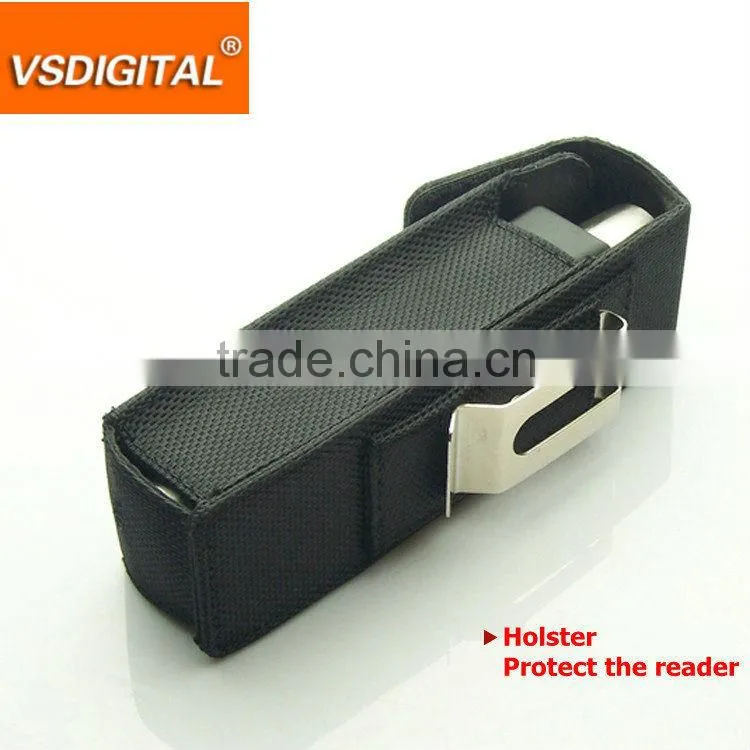

Holster
One set
Superduarble
