Specifications
1.Guard Tour Device2.Shockproof (up 265v )
3.Staticproof,dropping record
4.Circuit shockproof design
5.Best price
Touch Guard Tour Device (s)
Application Software

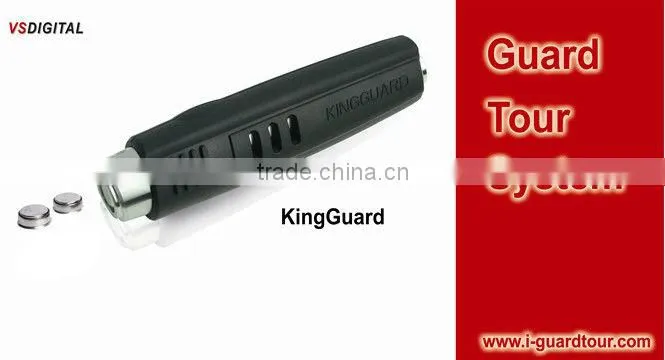

V51KingGuard Touch Guard tour device is applied in Single User Version,Online Version.
Features
Anti- vandal
1 shockproof (up 265v ),keep any shock record
2 staticproof
3 dropping record
4 Read head short circuit
5 reverse-battery protection
6 super durable (stainless steel body, rubber out shell, PCB sealed box )
7 completely waterproof .
8 works well from 15m(49.22ft) drop .
9 circuit shockproof design
Anti-spamming
1 disassemble batteries record automatically
2 change time record
3 store up to 100,000 records
Easy maintenance repair and operation
1 low power reminder
2 keep 100,000 records in circulation , records can be checked even be deleted
3 3AAA alkaline battery .
VT51 Downloader
V51 is connected with PC. LED is on. When V51 is plugged into VT51 and start to read the record, the LED flashes.
VT51 also includes one iButton reader, it is used to set checkpoint, patrolman and event.
Appearance |
|
Casing |
Aluminum alloy +ABS |
Interface |
USB |
Size |
120*120*39(mm) |
This model can be used with IP Downloader,can transfer data through GPRS ,WIFI,or Rj45 from anywhere
IP_Downloader Feature
|
1.No computer required IP Downloader can instead the computer to download the patrol data and transfer data to the server byGPRS.WIFI or the Internet 2.Easy Operation .Click the “local” button, records in the wand will be downloaded into the IP Downloader. The records will be transferred to the server automatically. In case of breakdown or being busy,IP Downloader will inspect the server state automatically. Once connect with the server , IPdownloader will send the records to the server by itself based on the time interval we have set. 3.Large storage.Flash IC for large storage capacity, up to 2 million records, storage is related with guard tour reader model 4.Reliable storage –records can be saved at least 10 years 5.Portable .It is rechargeable 3.7V rechargeable Lithium battery (selective choice) built in IP_Downloader that is easy to bring IP_Downloader to download reader patrol record and transfer record by RJ45 Network Cable,WIFI or GPRS. 6.Update remotely – Update hardware program remotely. |
IP-Downloader Technical Data
Dimensions |
170*121*40(mm) |
Weight |
540g |
Material |
Aluminium |
Power |
DC5V-1000mA/800mAh |
3.7V rechargeable Lithium battery (selective choice) | |
Operating voltage |
128Mbit/16Mbit flash |
Dispaly |
OLED screen Indicate light |
Buttons |
Local and remote |
Operating temperature |
-20°C~80°C |
Storage temperature |
-30°C~85°C |
Relative humidity |
10%~-90% |
Indicate light |
Power |
Record | |
Run |
One Set includes
- 1 V51 iButton Guard Scanner
- 1 VT51 Downloader

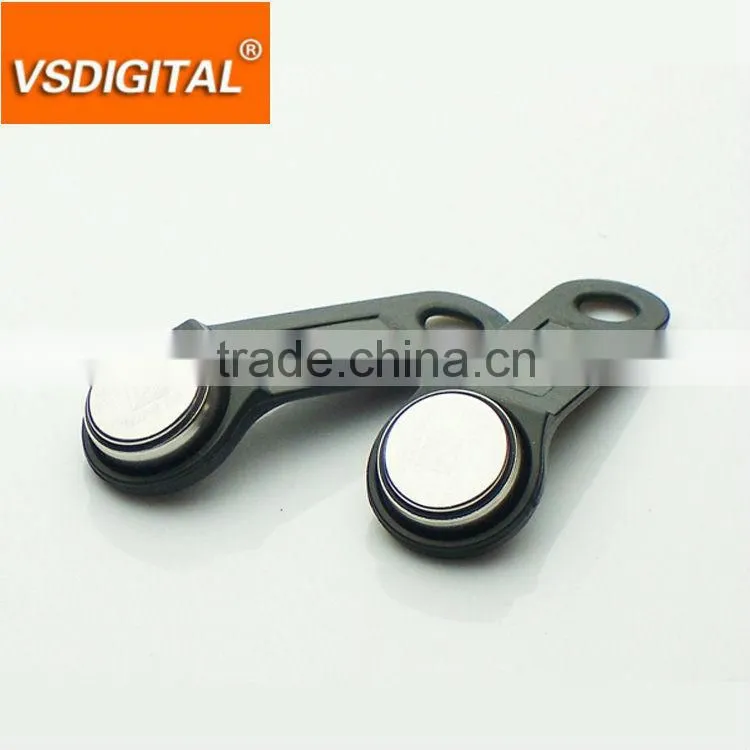

- 10 iButton Tags & Holders
- 5 Patrolman Buttons
- Guard Tour Software V8.0x
- USB Transfer Cable

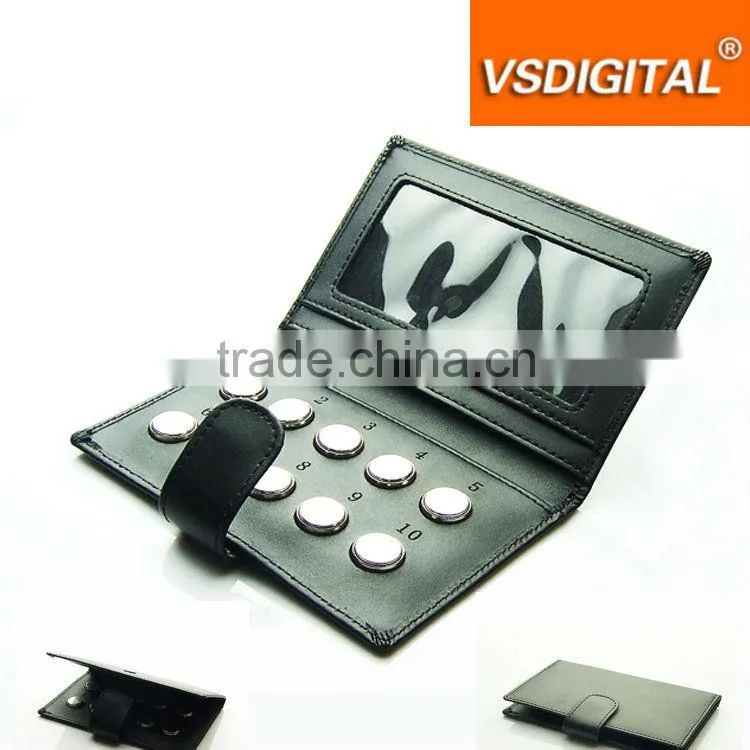

Holster Event wallet
Patrolman Tag Tag&Holder
Packing Box
Software
