10/15KV Single-Core Medium Voltage Heat Shinkable Indoor Terminational Kits
Negotiable
MOQ: 20 Sets (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Place of Origin:
Zhejiang, China
Brand Name:
HEAG/HYRS
Model Number:
NSY-10/1
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
10/15KV 3-CORES Medium Voltage Heat Shinkable Outdoor Terminational KitsNegotiableMOQ: 20 Sets -
10/15KV Single-Core Medium Voltage Heat Shinkable OutdoorTerminational KitsNegotiableMOQ: 20 Sets
-
10/15KV 3-CORES Medium Voltage Heat Shinkable Straight Through JointsNegotiableMOQ: 20 Sets
-
10/15KV Single-Core Medium Voltage Heat Shinkable Straight Through JointsNegotiableMOQ: 20 Sets
-
Heavy Wall Sleeving With Hot Melting AdhesivesNegotiableMOQ: 100 Pieces
Place of Origin
Zhejiang, China
Brand Name
HEAG/HYRS
Model Number
NSY-10/1
Specifications
It is widely used in electric power, petroleum chemical industry, metallurgy, railway, port and buildings, etcProduct Advantage:
20 years producing, 8 years exporting experience
all sets passed IEC60520 and JB8144 testing
With the excellent electrical and mechanical function, the product can be used in all kinds of conditions for a long time.
The price varies according to the termination's length:650mm, 800mm, 1000mm (regular)
The product are be widely used in power supply, and petrochemicals, metallurgy, railway station, sea port and other constructions.
Component: Stress Control tubing, Insulation tubing,Sealing tubing, Rainsheds,, Filling Adhesive ,Earth Braid, Constant Force Spring,etc.
Technical Data
| Property | Typical Data |
| Ac withstand(under rain) | 45kv/1min |
| Ac withstand(without tain) | 45kv/1min |
| Impulse withstand | ±105kv/10times |
| Dc withstand | -52kv/15min |
| Ac withstand | 35kv/4h |
| Partical discharge test | ≤10Pc(1.73Uo) |
Characteristic
1). Light weight, reliable operation, easy installation
2). Shrinking fast and no crack
Specifications
| Name | Type | Size of Conductor(mm2) |
| Single-CORE "XLPE" INDOOR TERMINATION KITS | NSY-10/1.1 | 25-50 |
| Single-CORE "XLPE" INDOOR TERMINATION KITS | NSY-10/1.2 | 70-120 |
| Single-CORE "XLPE" INDOOR TERMINATION KITS | NSY-10/1.3 | 150-240 |
| Single-CORE"XLPE" INDOOR TERMINATION KITS | NSY-10/1.4 | 300-500 |

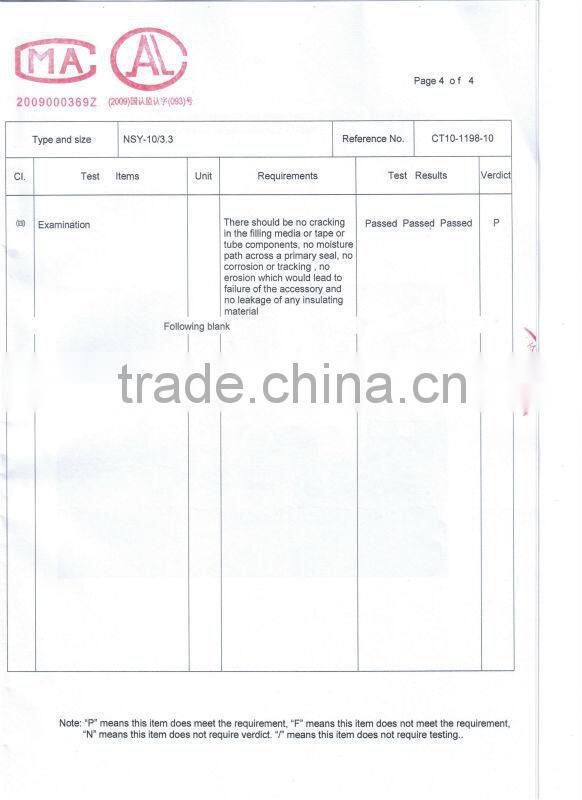

Test Report
