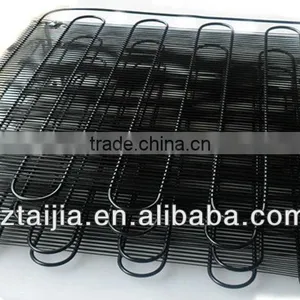

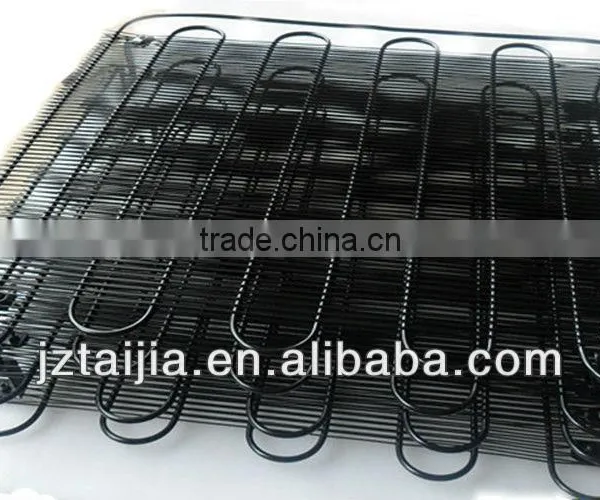

Domestic Fridge Components Air Cooled Condenser
- 3000 Piece / Pieces per Month
- Shanghai/Ningbo
- T/T Credit Card
- Commercial Refrigerator Flat 3-Layer Bundy Condenser
- Commercial Refrigerator 3-Layer Air Cooled Condenser
- Commercial Refrigerator Bent Copper Tube Condenser
- Commercial Refrigerator Air Cooled Condenser
- Professional Bundy Condenser for Domestic Fridges Components
- Conditioning Refrigeration Parts Bundy Condenser
Product Details
Place of Origin: | Hubei, China | Brand Name: | TJ | Model Number: | T870 |
Condition: | New |
Packaging Details
10pcs to a carton,wooden export standard package
Product Description
Specifications
1.30 years manufacturing condenser/evaporator experience2.ROHS,ISO9001.LFGB certificate
3.Good supplier for Midea
4.OEM
1.30 years professional manufacturing condenser/evaporator experience
2.ROHS,ISO9001.LFGB certificate
3.Good supplier for Midea Refrigerator
4.OEM
Specifications
Domestic Fridge Components Air Cooled Condenser -- is made by modern production technology and imported production equipment by using top quality monolayer weld pipe or Bondi tube and steel wire, electrophoresisi paint handling for surface.
it is suit for such as refrigerator and freezer.
Material: Bundy tubes(steel tubes coated with copper)
4.76mmx0.71mm, 6.35mmX0.71mm, 8mmX0.71mm
Steel wires 1.0mm--2.0mm
With rubber caps at both ends.
description as below:
Raw material | Rolling welded steel tube : Out Diameter 4.76/6/8mm , Wall Thickness 0.6-0.71mm; |
Structure
| 1) flat type of wire on tube condenser used at the back 2) bended of spiral type of wire on tube condenser used at the bottom 3) wrapped type pf tube embed on plate |
Key Process | Tube bending, Tube welding, Mono shelf assemble, Assembly welding, Leakage testing. Coating, Inspection, Package |
Technical Ablity | 1)The distance of steel wire ≥6mm; 2)Produce according to the drawing or sample supplied by clients; |
performance | 1)Surface treated with powder painting or dip coating to prevent the corrosion 2)Inner cleanness can meet the requirement of R134a &CFC cooling system; 3)Can satisfy the cooling capability requirements; 4)Producing Capacity: 3000 pieces/Day; |
R134a Cooling System Tube Inside Standards
Residual Moisture | ≤20 mg/m2 |
Residual Impurity | ≤30 mg/m2 |
Residual Mineral Oil | ≤7 mg/m2 |
Residual Chlorine | ≤0.3 mg/m2 |
Residual Paraffin | ≤0.2 mg/m2 |
Specification of Coating
Coating Thickness | Thickness of coating 30-100um |
Harness of Coating | ≥2H |
Impact of Coating | 50 kg/cm impact, no crack |
Adhesion of coating | ≥two grade |
Flexibility of Coating | Around R=3D bend 180, no crack or no fall off |
Color tolerance of Power Painting | E≤1.5 |
Other informations
more products for you refrence
Main products | Category |
Wire tube condenser | A.Flat type: 1.4-14U wire tube condenser 2. 7-29rows/lines wire tube condenser |
B. Monolayer flat wire tube condenser | |
C. Double layer flat wire tube condenser | |
D. Winding type wire tube condenser | |
Wire tube evaporator | A. Two layer/sheet wire tube condenser |
B.Three layer wire tube condenser | |
C.Four layer wire tube condenser | |
D.Seven layer wire tube condenser | |
Fin Aluminum evaporator | / |
Fin Aluminum Condenser | / |
Tube plate evaporator | / |
Chose us: Taijia--Professional manufacturer for evaporator and condenser
Professional factory: | Specialized in the production of refrigerator condenser and evaporator in 1984 .We have about 30 years experience in development and practical experience. |
Technology: | It owns over 50 sets of equipment imported from Italy & Switzerland and more than 10 sets of specialized testing and detecting equipment. |
OEM: | operate with Aucma, Little Swan, Midea, LG, TCL and other well-know domestic and foreign enterprises. |
Advantages: | Freon-free, high efficiency and energy saving. |
Production capacity: | Relying on the advanced equipments and our staff effort, the production capacity has reached 3.5 million sets a year. |
We can produce according to drawings or samples supplied by clients.
Pls feel free to contact us!
Company Profile
Jingzhou Taijia Refrigeration Equipment Co., Ltd. is a manufacturer established in 1984 and specialized in the research, development and production of wire tube condenser, wire tube evaporator, finned evaporator ,finned condenser and tube plate evaporator for refrigerator,freezer .
We are located in Jingzhou, with convenient transportation access. All of our products comply with international quality standards and are greatly appreciated in a variety of different markets throughout the world.
If you are interested in any of our products or would like to discuss a custom order, please feel free to contact us.
We are looking forward to forming successful business relationships with new clients around the world in the near future.
