Specifications
1.30 years manufacturing condenser/evaporator experience2.ROHS,ISO9001.LFGB certificate
3.Good supplier for Mide
4.OEM
1.30 years professional manufacturing condenser/evaporator experience
2.ROHS,ISO9001.LFGB certificate
3.Good supplier for Midea Refrigerator
4.OEM
Specifications

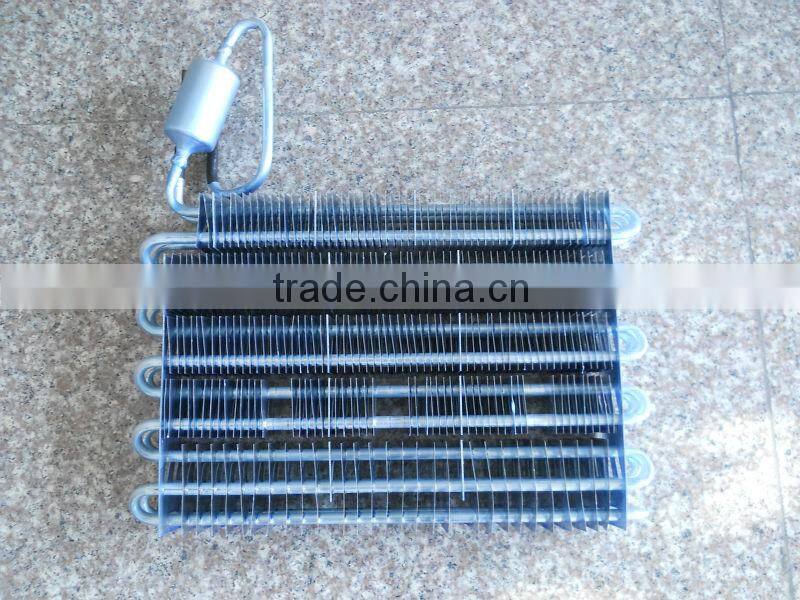

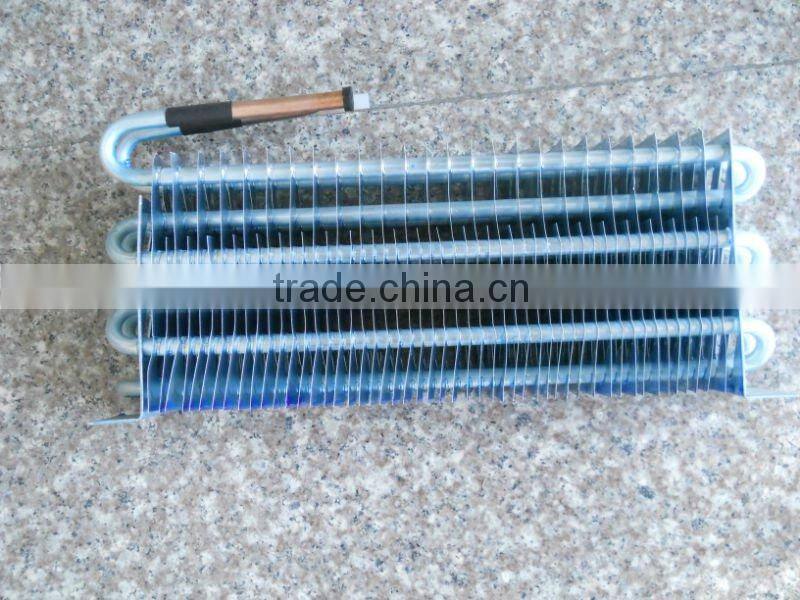

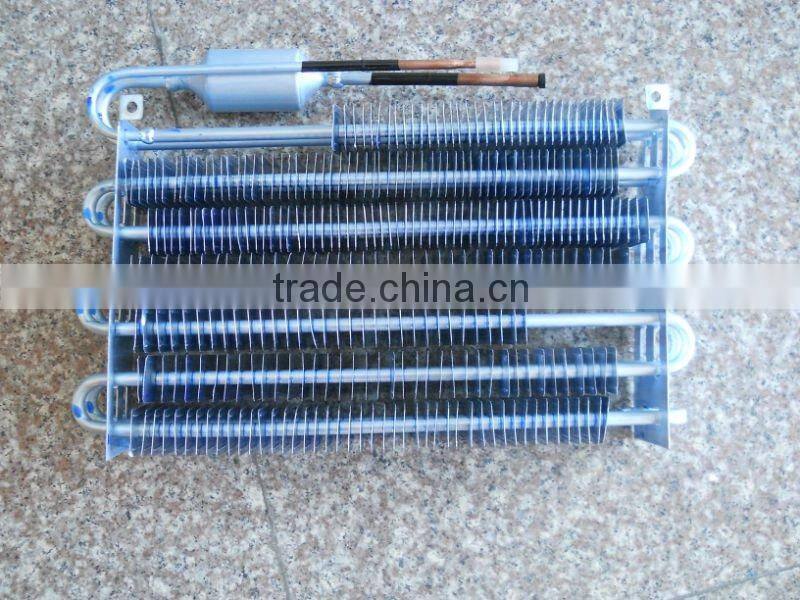

Refrigerator Finned Tube Evaporator
description as below:
Raw material |
Rolling welded steel tube : Out Diameter 4.76/6/8mm , Wall Thickness 0.6-0.71mm; |
|
Structure
|
1) Tube plate evaporator 2) Fin Aluminum evaporator |
Key Process |
Tube bending, Tube welding, Mono shelf assemble, Assembly welding, Leakage testing. Coating, Inspection, Package |
Technical Ablity |
1)The distance of steel wire ≥6mm; 2)Produce according to the drawing or sample supplied by clients; |
performance |
1)Surface treated with powder painting or dip coating to prevent the corrosion 2)Inner cleanness can meet the requirement of R134a &CFC cooling system; 3)Can satisfy the cooling capability requirements; 4)Producing Capacity: 3000 pieces/Day; |
R134a Cooling System Tube Inside Standards
Residual Moisture |
≤20 mg/m2 |
Residual Impurity |
≤30 mg/m2 |
Residual Mineral Oil |
≤7 mg/m2 |
Residual Chlorine |
≤0.3 mg/m2 |
Residual Paraffin |
≤0.2 mg/m2 |
Specification of Coating
Coating Thickness |
Thickness of coating 30-100um |
Harness of Coating |
≥2H |
Impact of Coating |
50 kg/cm impact, no crack |
Adhesion of coating |
≥two grade |
Flexibility of Coating |
Around R=3D bend 180, no crack or no fall off |
Color tolerance of Power Painting |
E≤1.5 |
Other informations
Main products |
Category |
Wire tube condenser |
A.Flat type: 1. 6U/7U/8U/11U/12U/14U wire tube condenser 2. 7rows,21rows,23rows wire tube condenser |
B. Monolayer flat wire tube condenser | |
C. Double layer flat wire tube condenser | |
D. Winding type wire tube condenser | |
Wire tube evaporator |
A. Two layer/sheet wire tube condenser |
B.Three layer wire tube condenser | |
C.Four layer wire tube condenser | |
D.Seven layer wire tube condenser | |
Fin Aluminum evaporator |
/ |
Fin Aluminum Condenser |
/ |
Tube plate evaporator |
/ |
About us: Taijia--Professional manufacturer for evaporator and condenser
Professional factory: |
Specialized in the production of refrigerator condenser and evaporator in 1984 .We have about 30 years experience in development and practical experience. |
Technology: |
It owns over 50 sets of equipment imported from Italy & Switzerland and more than 10 sets of specialized testing and detecting equipment. |
OEM: |
operate with Aucma, Little Swan, Midea, LG, TCL and other well-know domestic and foreign enterprises. |
Advantages: |
Freon-free, high efficiency and energy saving. |
Production capacity: |
Relying on the advanced equipments and our staff effort, the production capacity has reached 3.5 million sets a year. |
We can produce according to drawings or samples supplied by clients.
Pls feel free to contact us!
