Specifications
ISO9001, ROHS ,LFGB approvedSuperior supplier of Midea
30 years professional manufacturing condenser/evaporator
experience
30 years professional manufacturing condenser/evaporator experience
ROHS,ISO9001.LFGB certificate
Good supplier for Midea Refrigerator
OEM

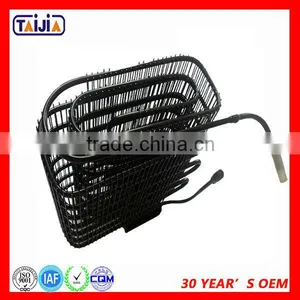

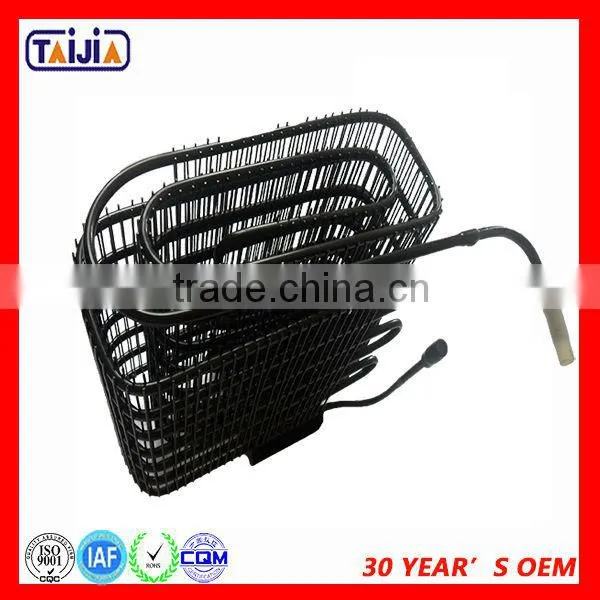

air cooled refrigerant condenser
Specification:
Raw material |
Rolling welded stell tube : Out Diameter 4.76mm , Wire diameter:over 1.40mm, Wall Thickness 0.6-0.71mm; |
Technical Ability |
1)The gap of steel wire ≥6mm; 2)Produce according to the drawing or sample supplied by clients; |
performance |
1)Surface treated with powder painting or dip coating to prevent the corrosion 2)Inner cleanness can meet the requirement of R134a &CFC cooling system; 3)Can satisfy the cooling capability requirements; 4)Producing Capacity: 3000 pieces/Day; |
Production capacity: |
Relying on the advanced imported equipment and the unremitting effort of all the staff of the company, the production capacity has reached 3.5 million sets or pieces a year. |
R134a cooling system tube pamameters
Residual Moisture |
≤20 mg/m2 |
Residual Impurity |
≤30 mg/m2 |
Residual Mineral Oil |
≤7 mg/m2 |
Residual Chlorine |
≤0.3 mg/m2 |
Residual Paraffin |
≤0.2 mg/m2 |
coating parameters
Coating Thickness |
Thickness of coating 30-100um |
Harness of Coating |
≥2H |
Impact of Coating |
50 kg/cm impact, no crack |
Adhesion of coating |
≥two grade |
Flexibility of Coating |
Around R=3D bend 180, no crack or no fall off |
Color tolerance of Power Painting |
E≤1.5 |
More products catalog for your reference:
Wire tube condenser |
A.Flat type: 1. 6U/7U/8U/11U/12U/14U wire tube condenser 2. 17rows,21rows,23rows wire tube condenser |
B. Monolayer flat wire tube condenser |
|
C. Double layer flat wire tube condenser |
|
D. Winding type wire tube condenser |
|
Wire tube evaporator |
A. Two layer/sheet wire tube condenser |
B.Three layer wire tube condenser |
|
C.Four layer wire tube condenser |
|
D.Seven layer wire tube condenser |
|
Fin Aluminum evaporator |
/ |
Fin Aluminum Condenser |
/ |
Tube plate evaporator |
/ |
Professional manufacturer for condenser and evaporator:
Specialized in the production of refrigerator condenser and evaporator in 1984 .
We have about 30 years experience in development and practical experience.
It owns over 50 sets of equipment imported from Italy and Switzerland and
more than 10 sets of specialized testing and detecting equipment.
Packing in standard carton box and with plastic/ snake bags covered.
Cooperate with Aucma, Little Swan, Midea, LG, TCL and other well-know domestic and foreign enterprises.
CANTACT:
TEL:+86-716-8390039
MOB:+86-15927721264
SKYPE:Joany1991
WEB:https://img13.fr-trading.com/
PLS feel free to contact us,we can produce according to samples or drawings if you dont like this.
.
