Product Details
| Place of Origin: | Guangdong, China | Brand Name: | HUACONN | Model Number: | HS9-B1-0101Q2B1-BR0303 |
| Max. Current: | 16A | Max. Voltage: | 250V | Operating Temperature: | -25~+125℃ |
| Protection Level: | IP65 |
Product Description
HS9-B1-0101Q2B1-BR0303 excellent quality manufacture rocker switch gay
Specification for rocker switch gay
Rating | 16A 250VAC 1/4HP 20A 125VAC 1/4HP 250VAC 3/4HP 16(4)A 250VAC |
Initial contact resistance | 50m Ωmax |
Insulation resistance | 100M Ω |
Withstand voltage | 1500VAC for terminal to terminal |
Mechanical life | 100000 cycles |
Electrical life | 10000 cycles |
Terminals type | quick contact and soldering |
Working temperature | ≤105℃ |
Working force | 700±300gf |
Main material of Body | PA66 |
Material of Actuator | PA66 |
Material of Terminals and movable contact | brass |

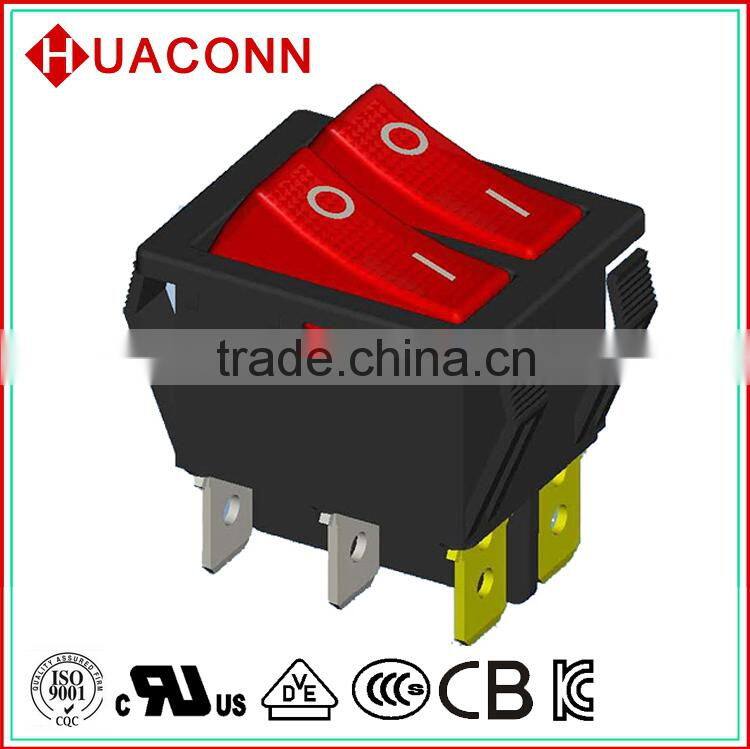

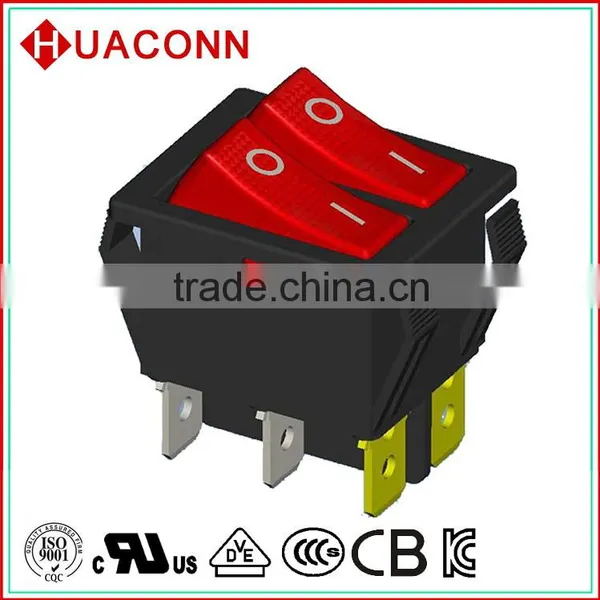

Picture of rocker switch gay
Certificates: UL VDE KC CB RoHS CCC
All of our products are UL VDE KC CE CB RoHS CCC approved.
As a manufacturer in the field of manufacturing AC sockets, AC Inlet, receptacles and rocker switches, we can design the items as requirements. It is available for us send samples for testing at any time.
Please contact us to get the drawing of our items by email, thanks!
rocker switch gay
